- Specifications
-
Details
MODEL

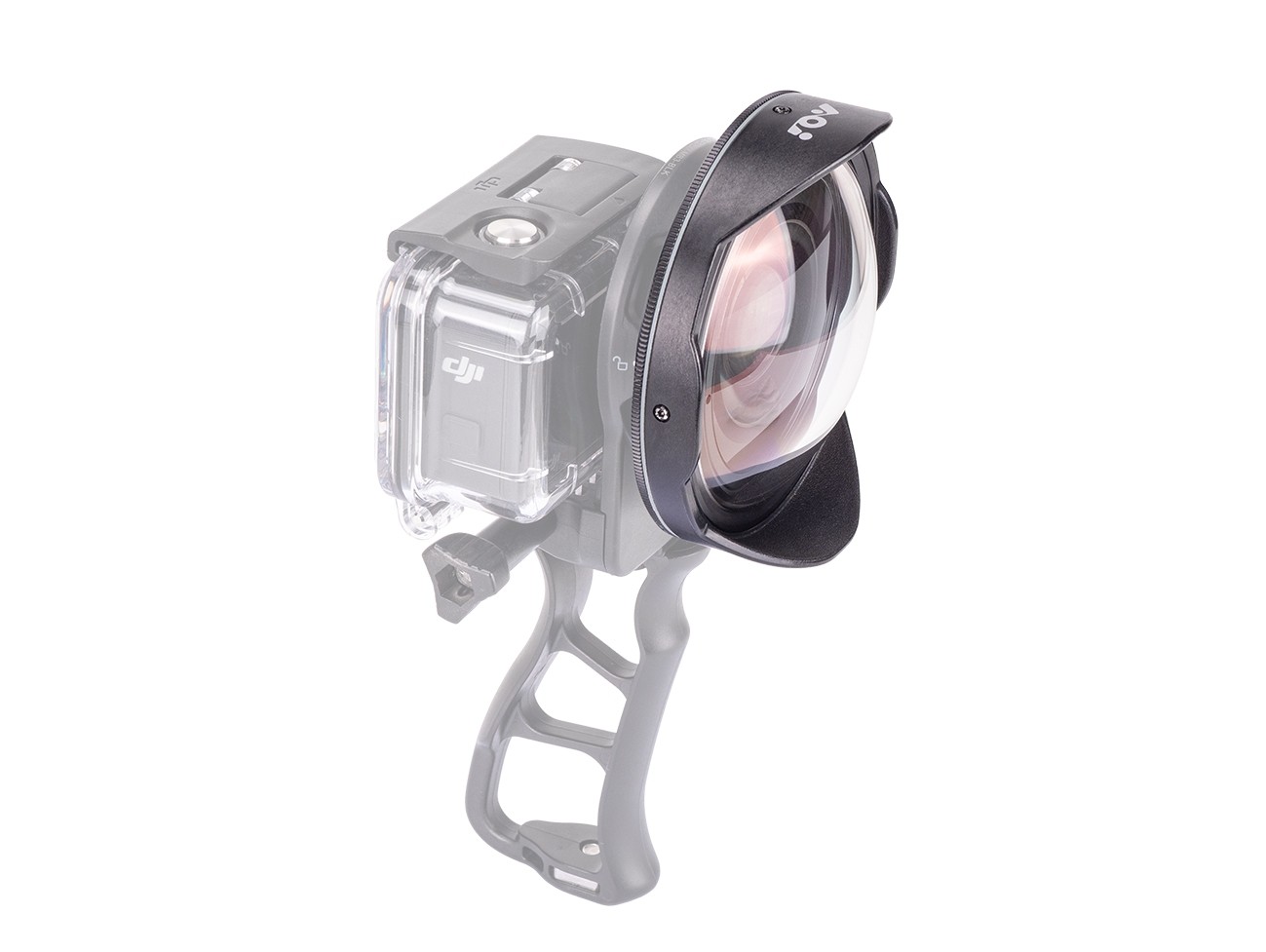

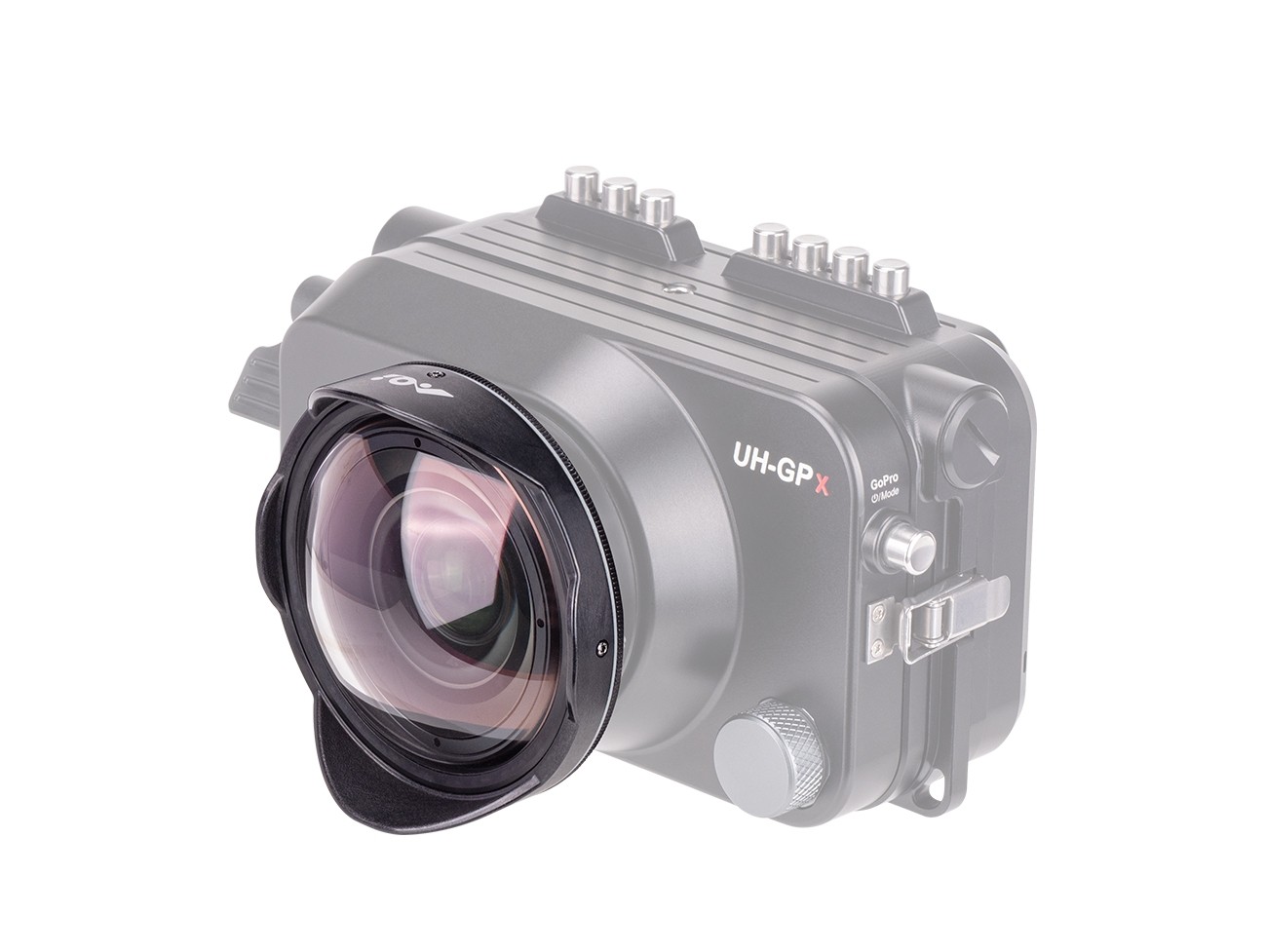

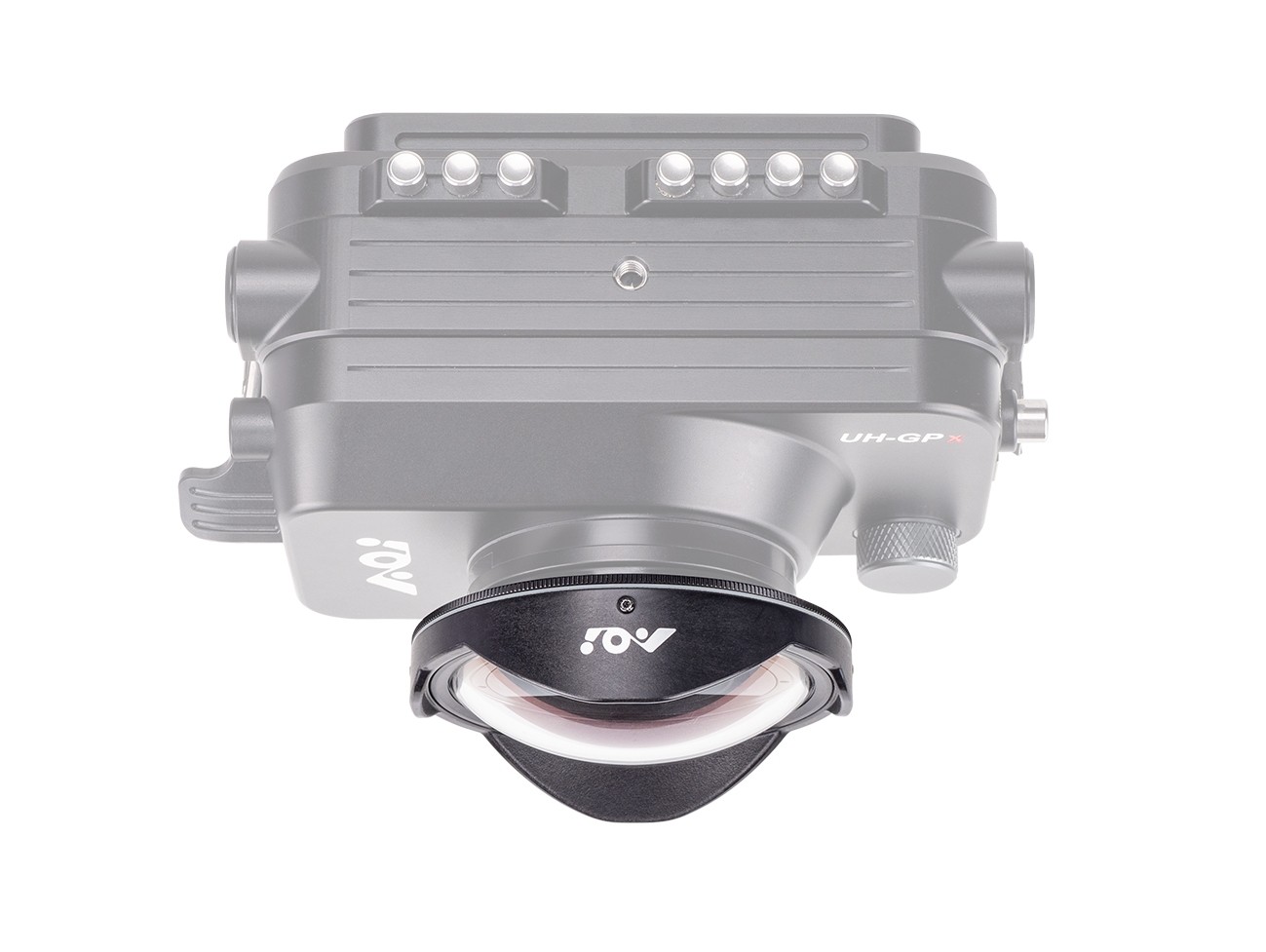

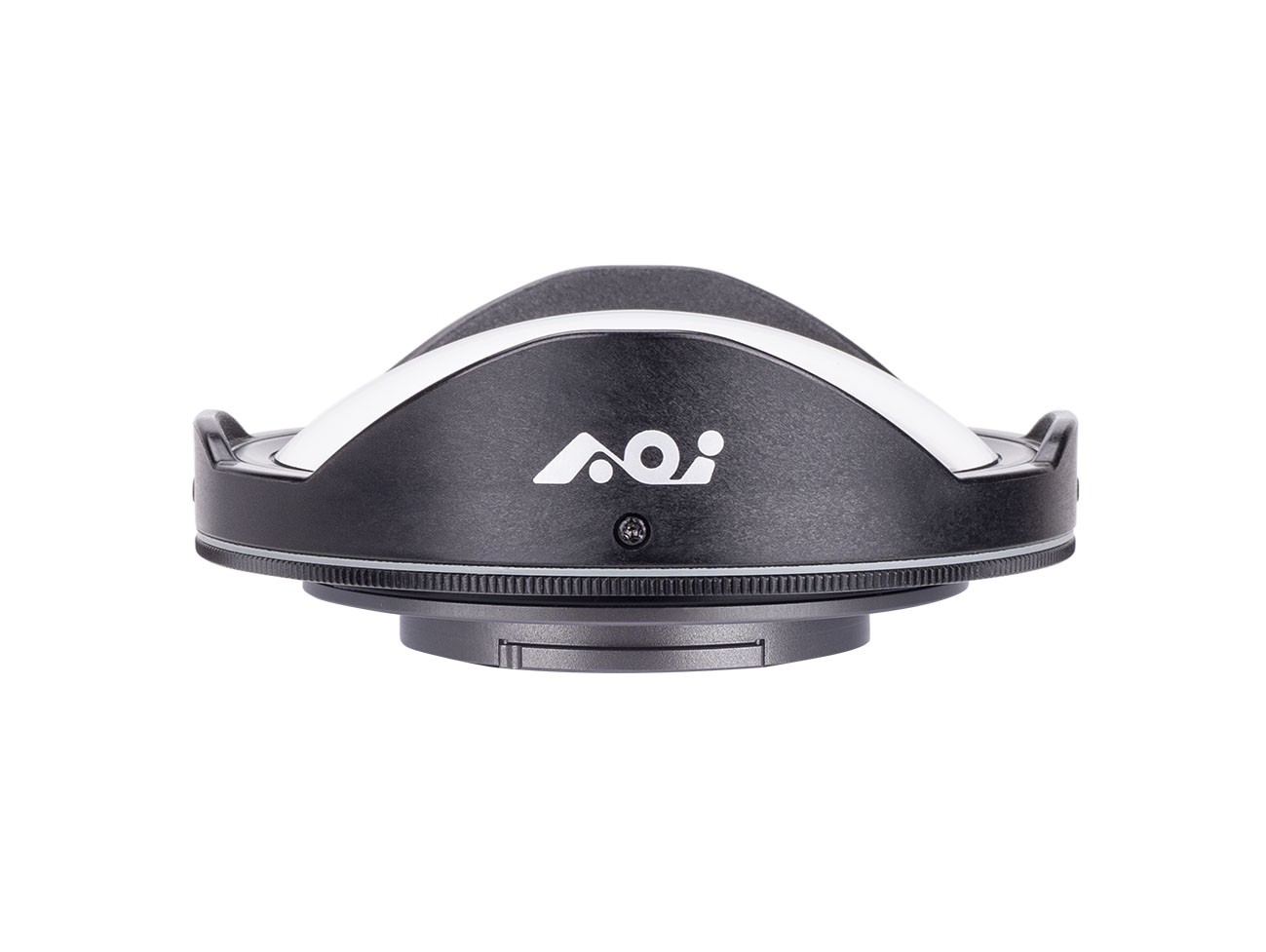

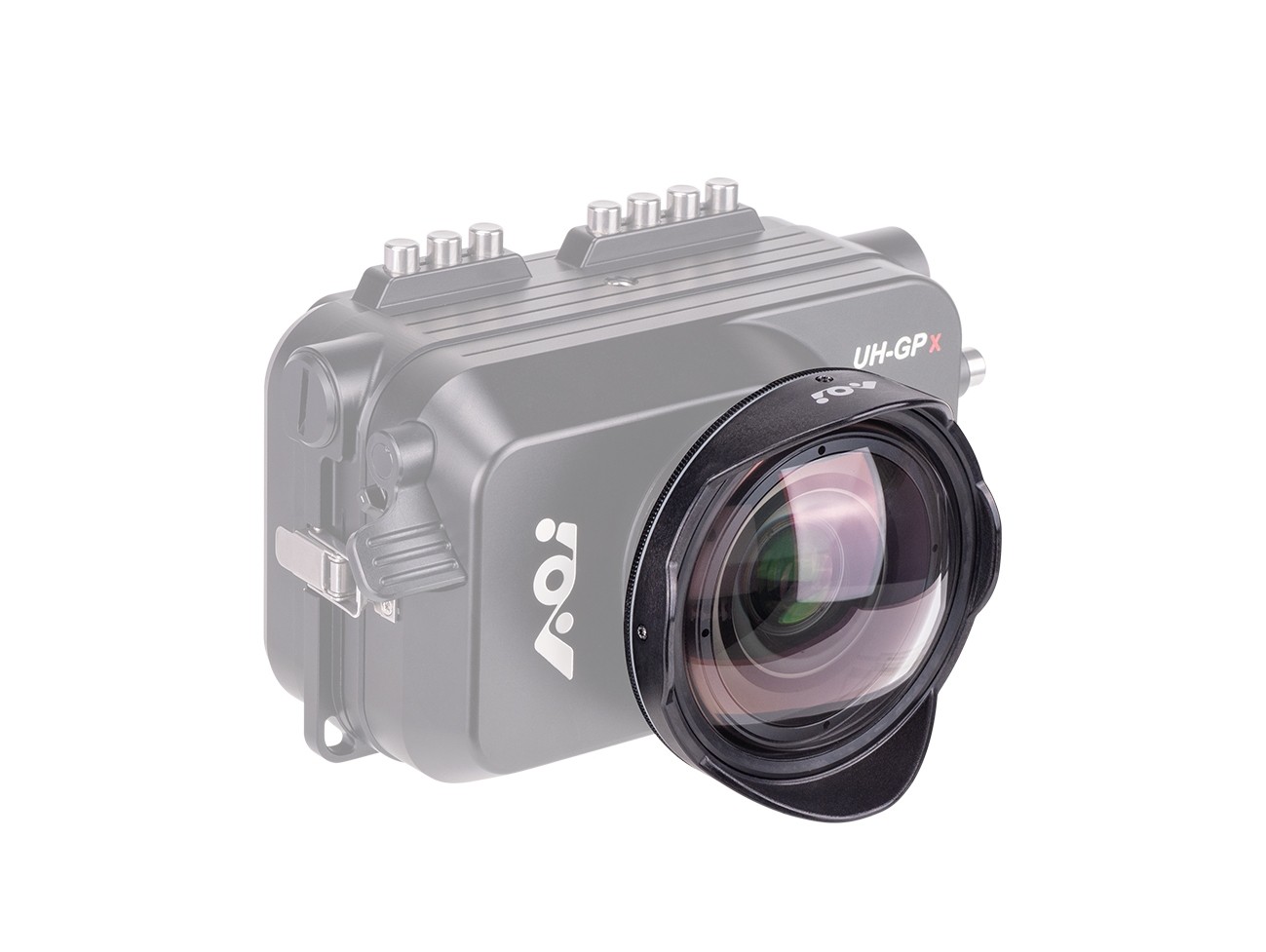

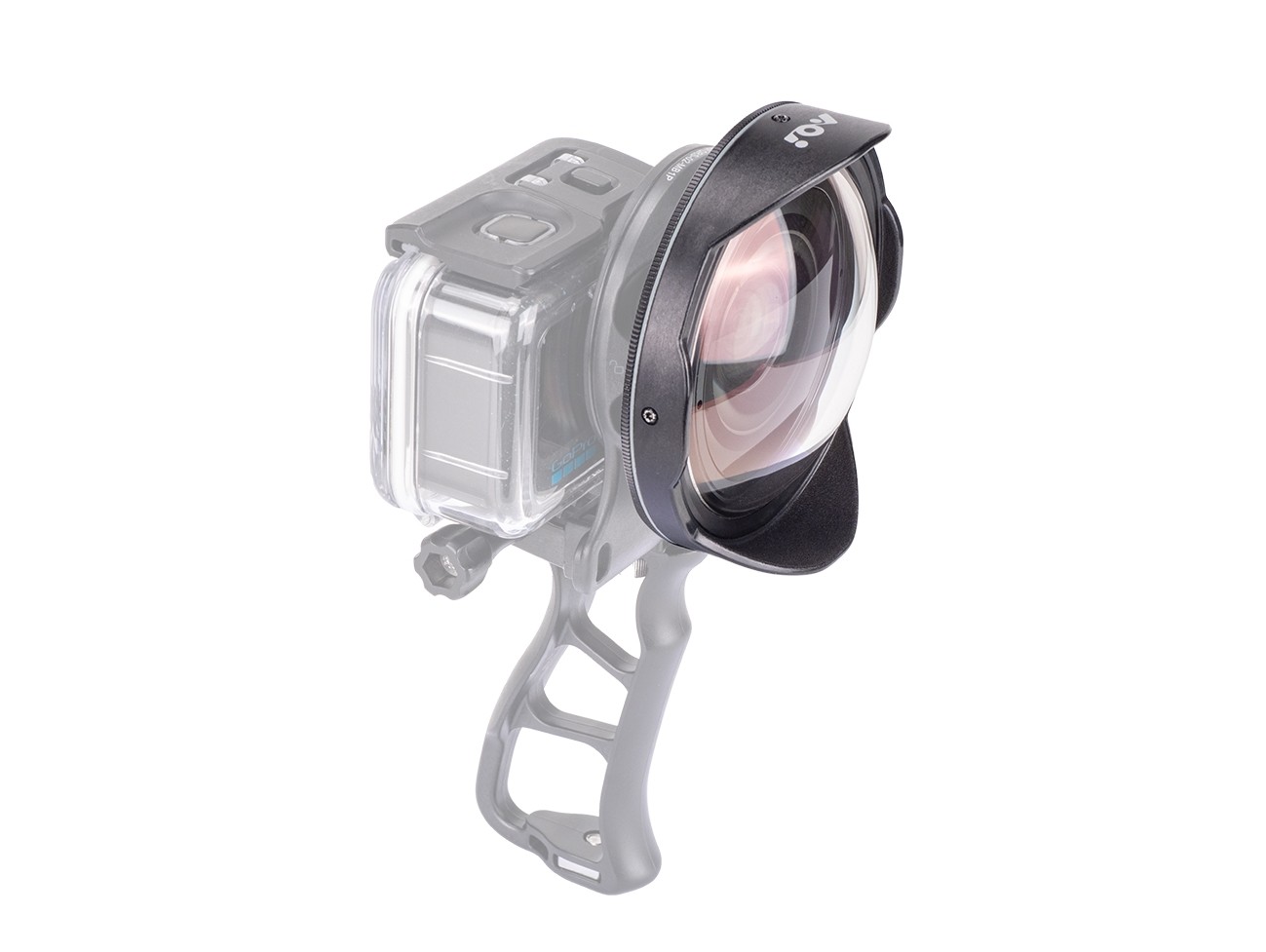

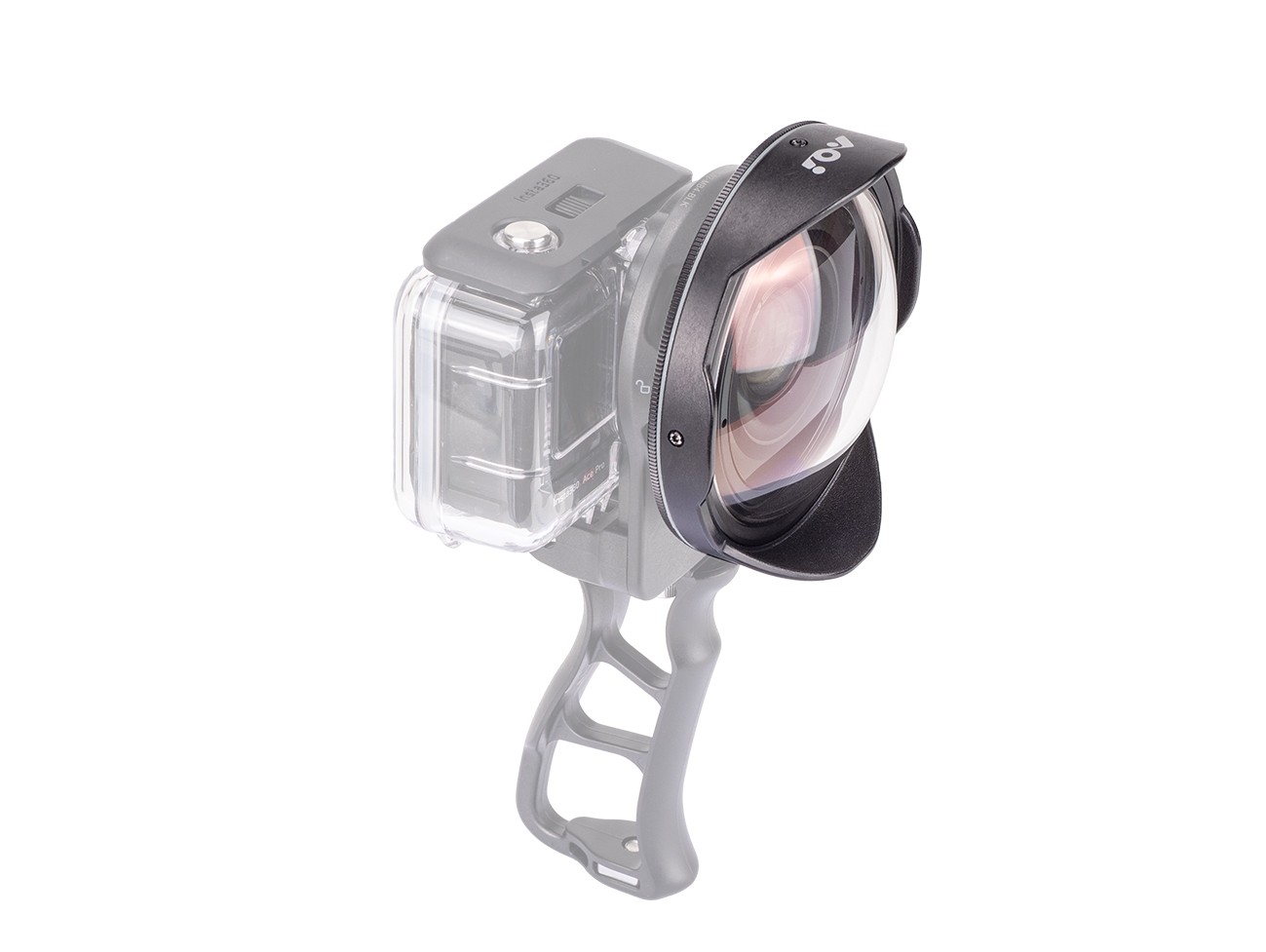

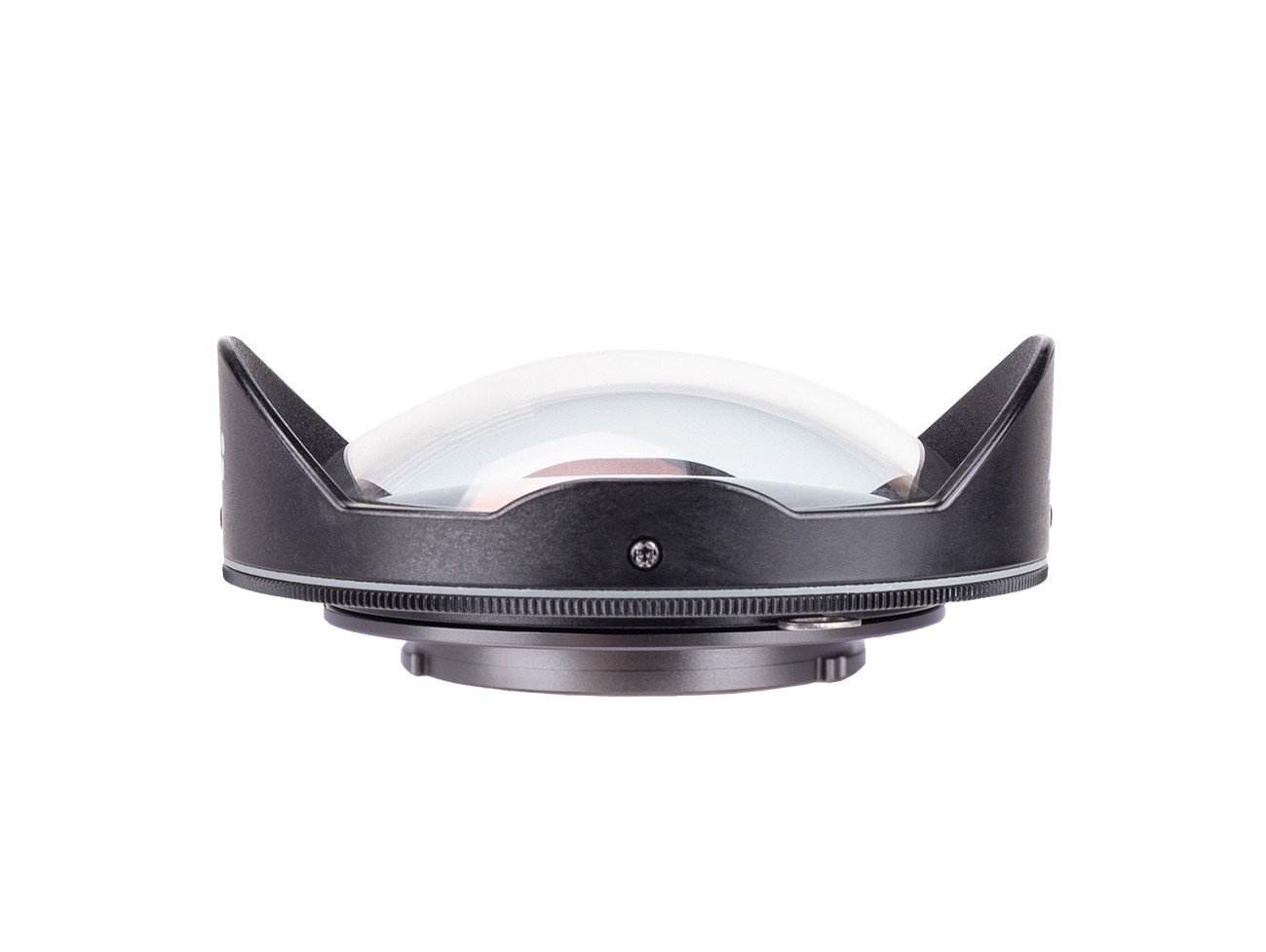

AOI UWL-03PROII DESCRIPTION Underwater 0.73X Wide Angle Conversion Lens Pro Mark II
for Action Camera & PhoneLENS CONSTRUCTION 4 Elements in 4 Groups LENS COATING All Glass Elements with Multi-layers AR Coating
Optical Grade Glass Dome Lens with Inner Surface Multi-layers AR CoatingFIELD OF VIEW 140° (underwater)
150° (on land)
MAGNIFICATION 0.73X (underwater) MOUNTING SYSTEM Using AOI Quick Release System- 02 (QRS-02)
Lens pre-installed with QR2 Mount (compatible with the most popular AD Mount)
Optional Mounting Adapter in M55, M52 & M46 availableDEPTH RATING 100 Meters / 328 Ft. LENS BARREL / DOME LENS /
LENS HOOD MATERIALAluminum Alloy with Black Hard Anodized / Glass Lens / Polycarbonate WEIGHT
(ON LAND / UNDERWATER)400 g (on land)

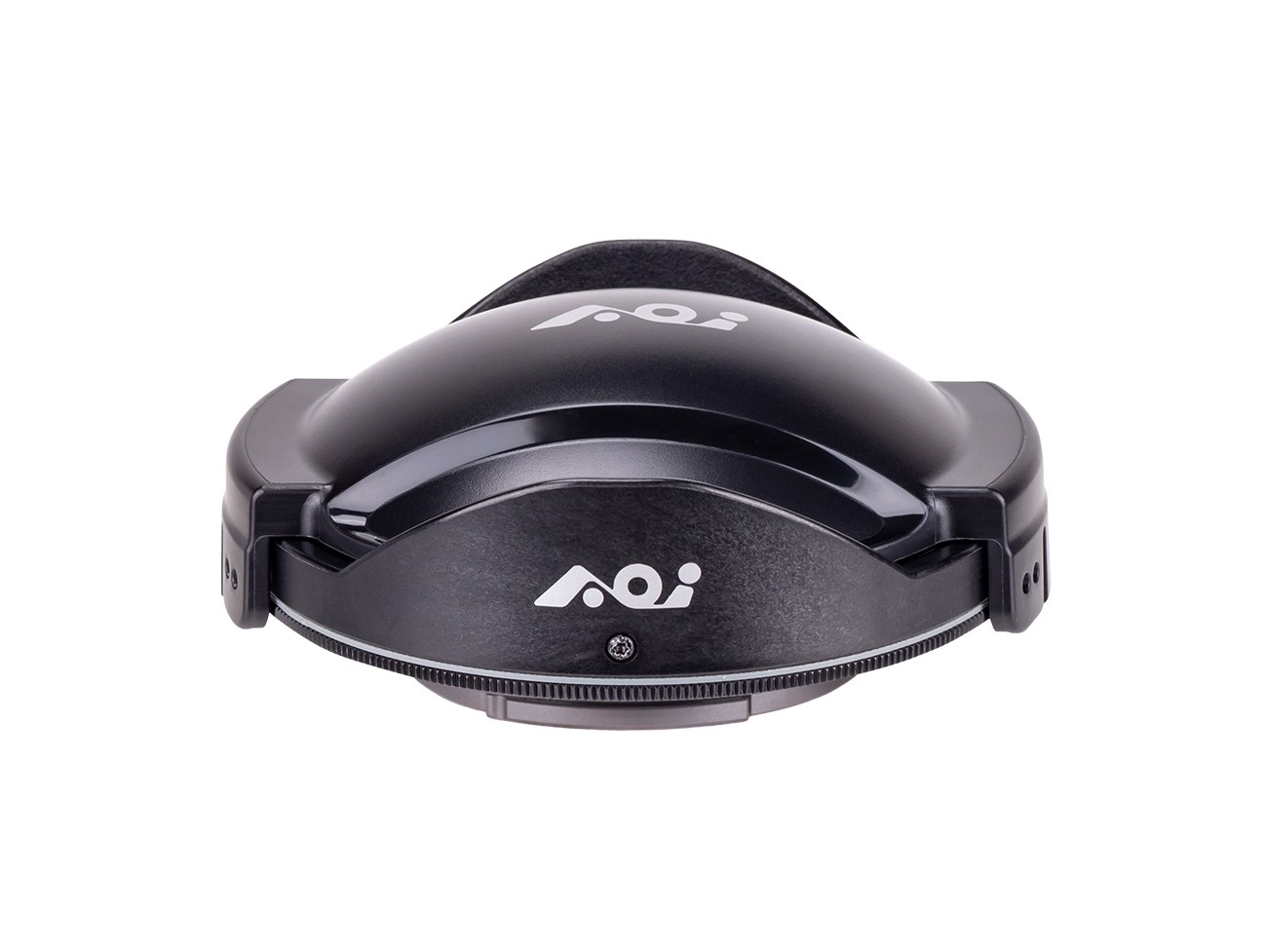

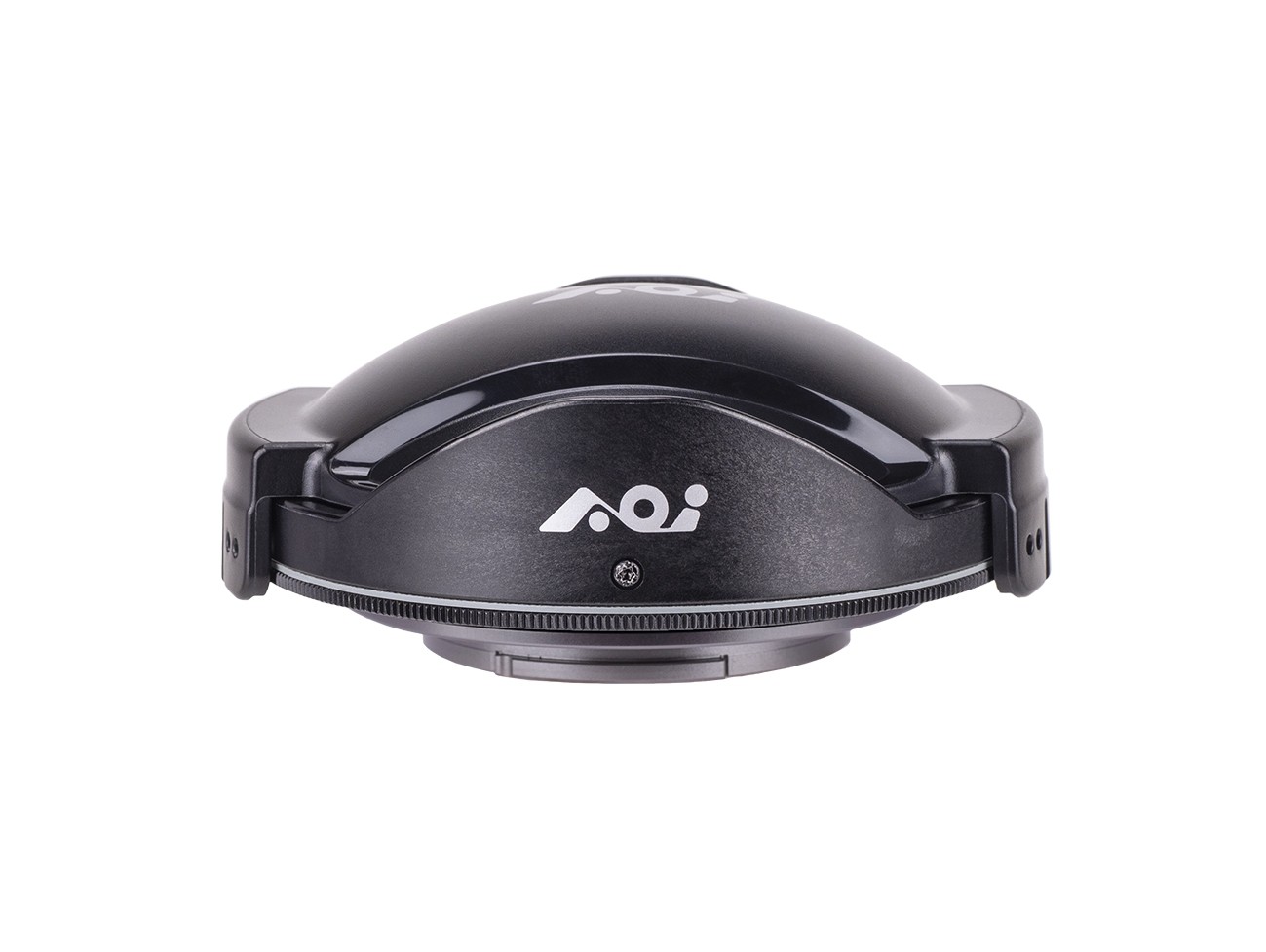

200 g (underwater)DIMENSIONS 99mm (D) X40.3mm (H) ACCESSORIES Dome Lens Hard Cover (AOI DHC-02) & Rear Lens Cap (AOI QRS-02-RC1),
Lens Secure Line, Lens Pouch - Download
-
