- Specifications
-
Details
MODEL NO.

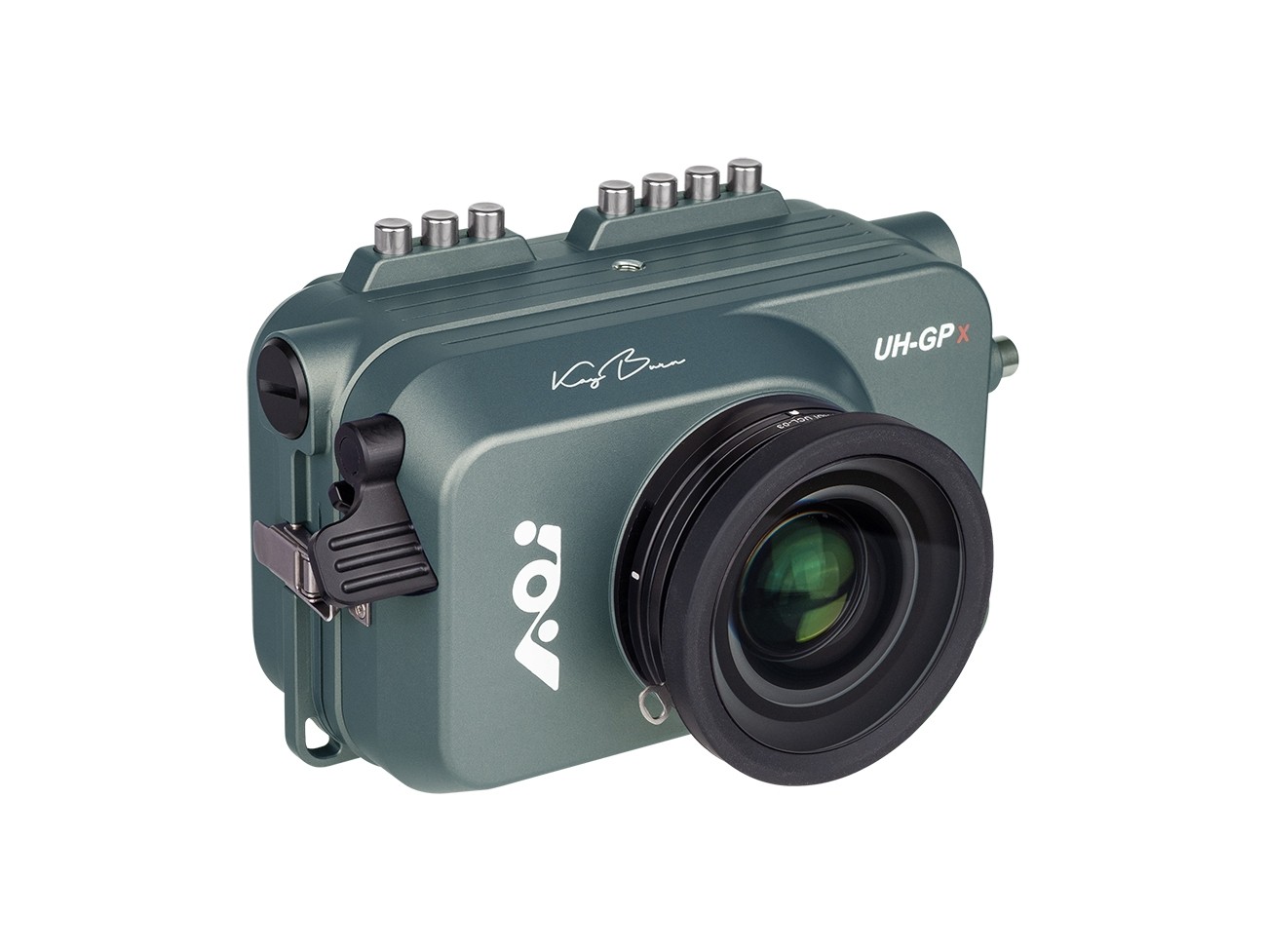

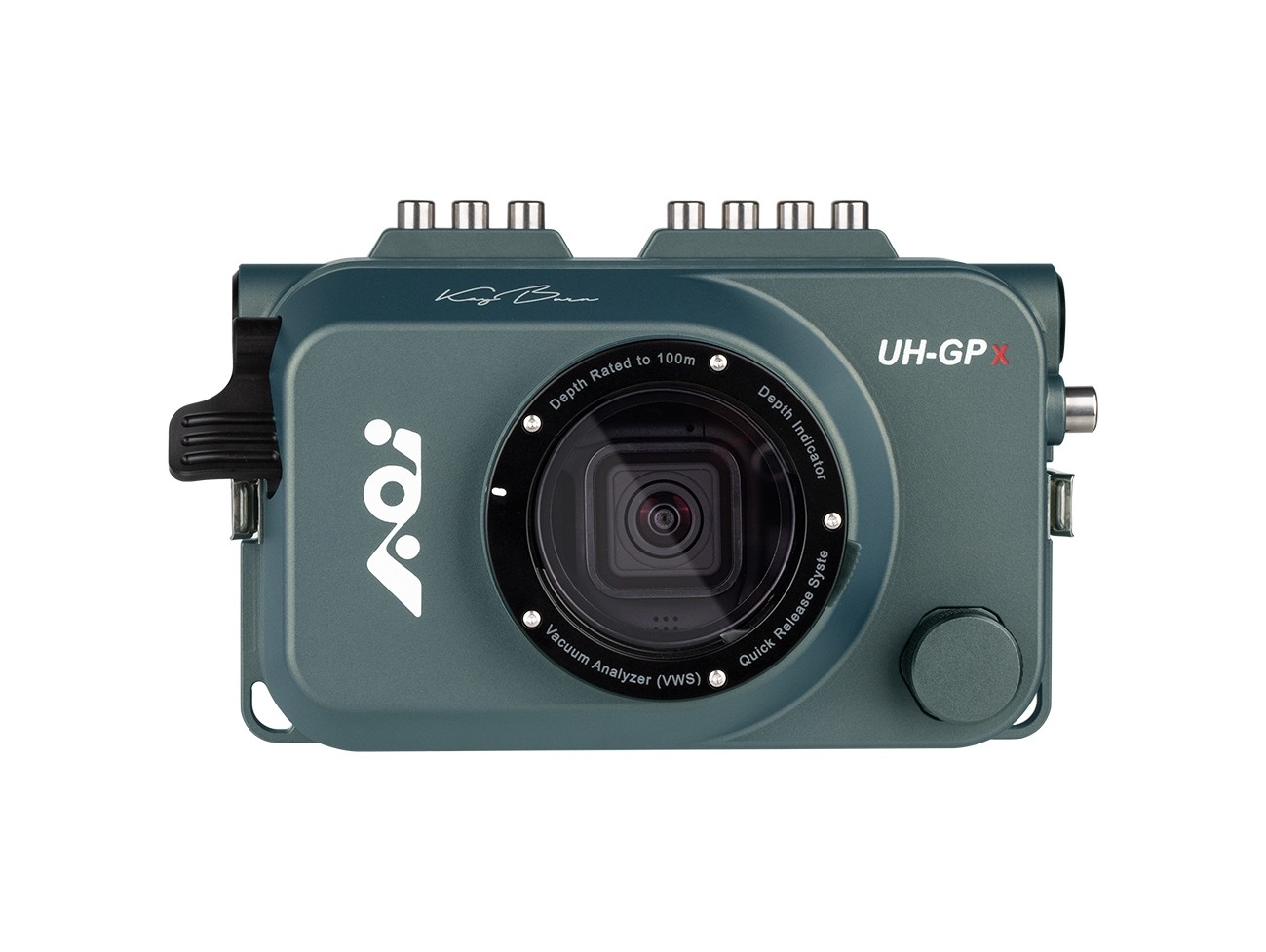

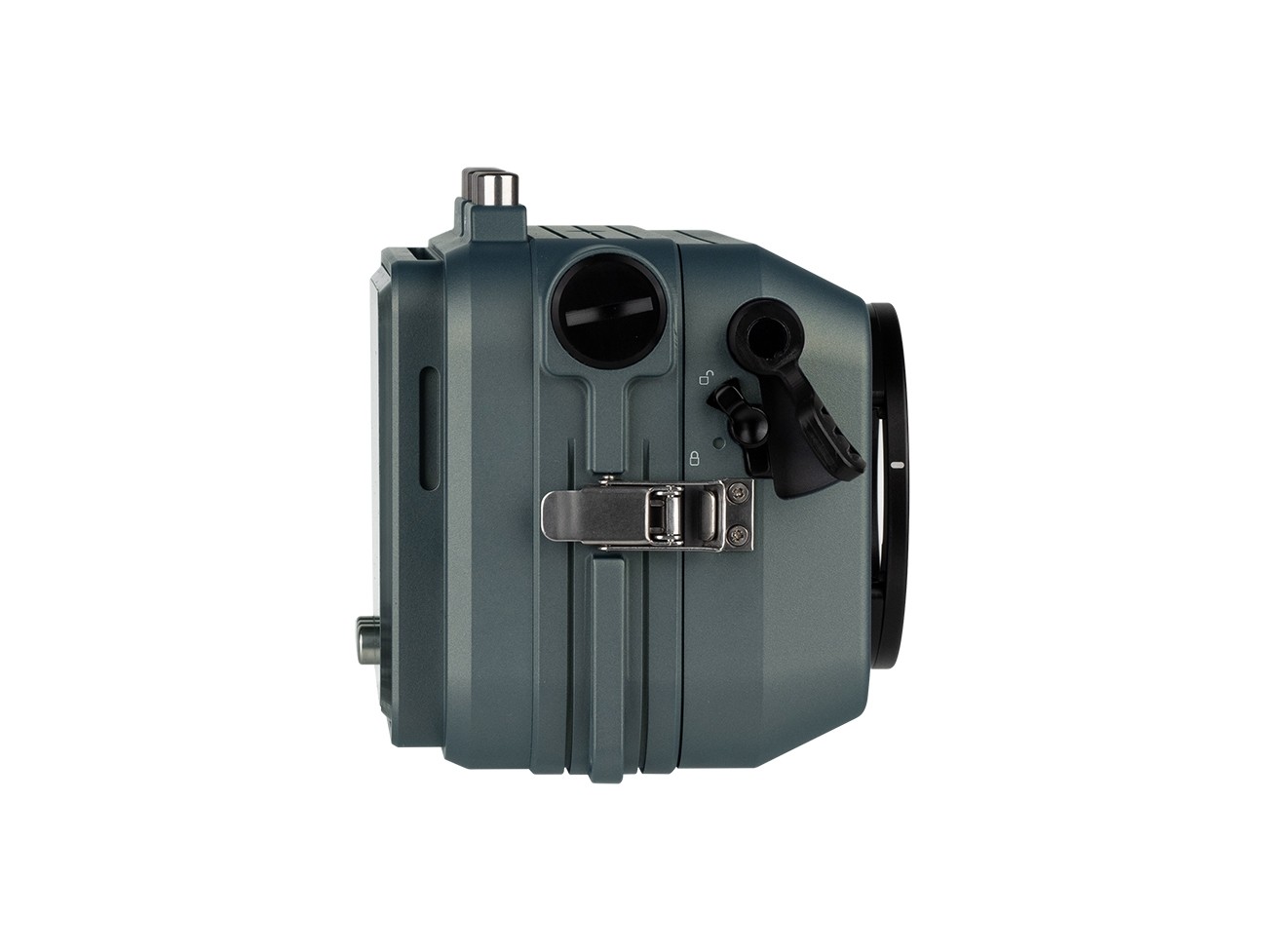

AOI UH-GPxs DESCRIPTION AOI UH-GPx Signature Series Set COMPATIBILITY GoPro HERO12, 11, 10 and 9 DEPTH RATING 100 Meters BODY MAIN MATERIAL
Marine Grade Aluminum Alloy
SURFACE FINISHING CERAKOTE® Coating on the Housing External Surface and Hard Anodizing

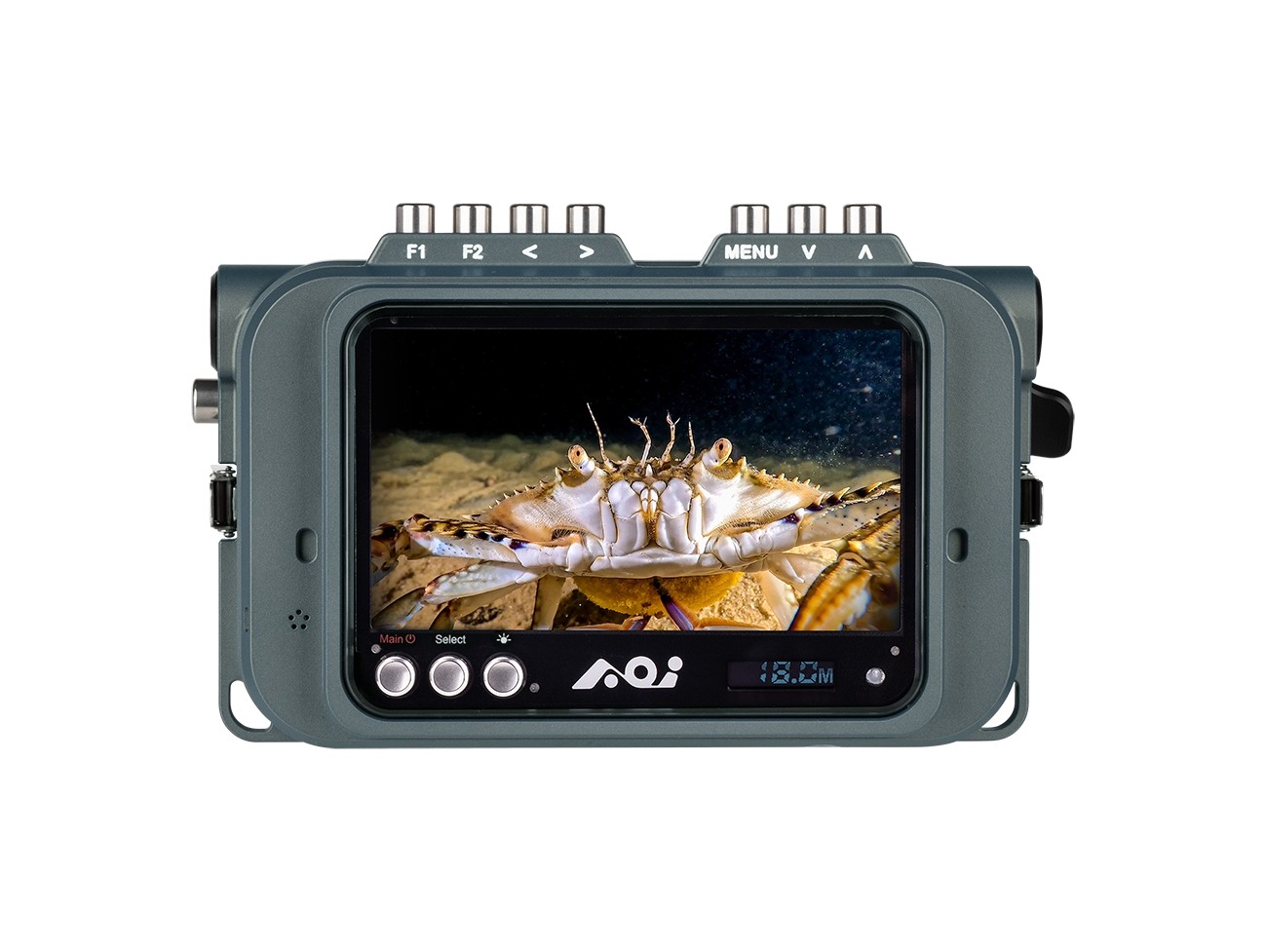

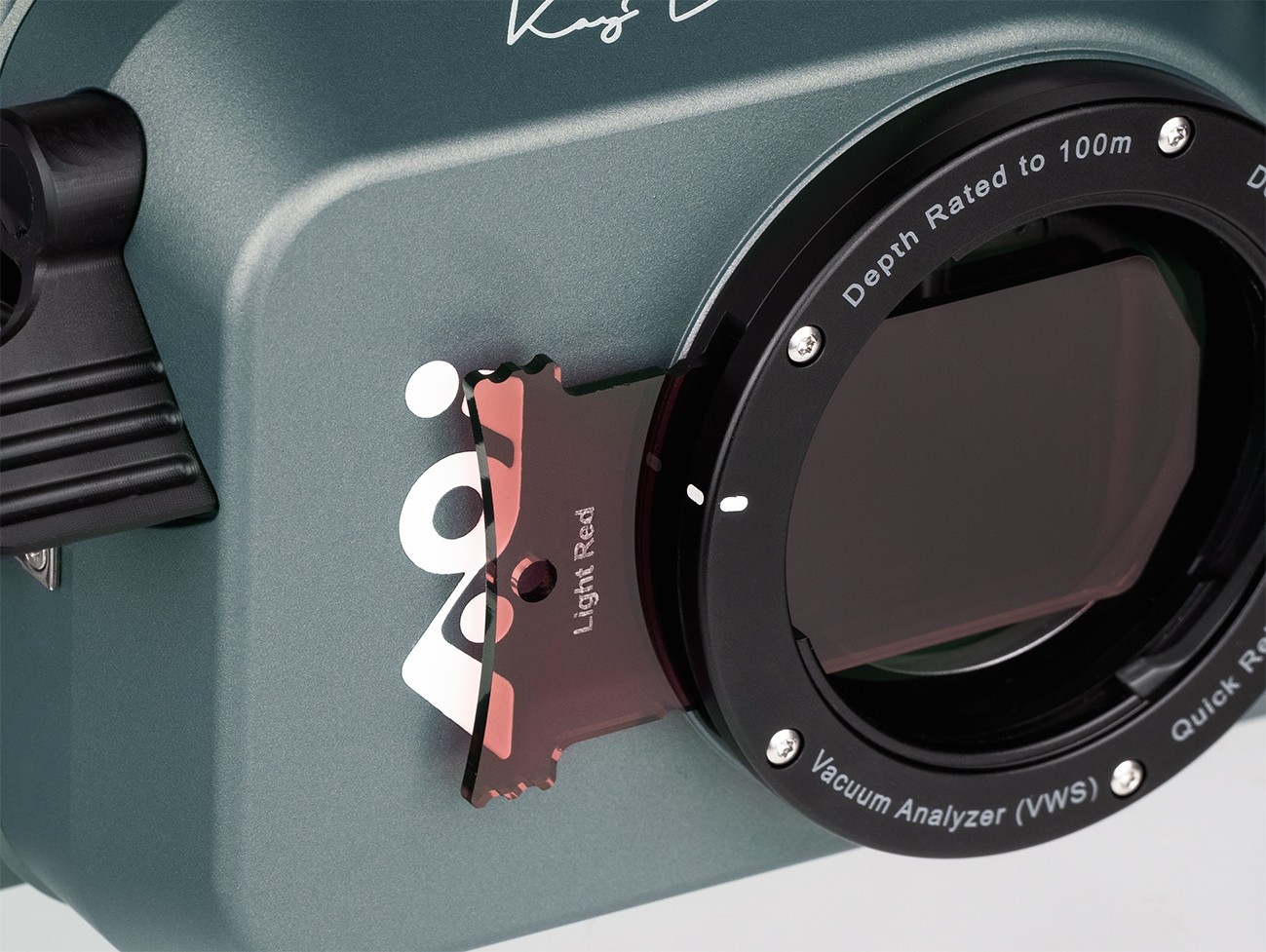

Housing Internal SurfaceMAIN BODY COLOR Cerakote Northern Lights (H-315) LENS PORT MOUNT & FILTER SLOT AOI Quick Release System (QRS) - QR2 Mount with Color Filter Slot LENS PORT GLASS Multi-layers AR and Hydrophobic Coating WATER LEAKAGE PROTECTION Built-in Vacuum Analyzation & Water Detection System (VWS) BUILT-IN WATER DEPTH MONITOR Max. Monitoring Depth up to 100 Meters with Preset Depth Alarm Function BUILT-IN DISPLAY MONITOR 5" Full HD (1920x1080 pixels) 16:9 Display Monitor Viewing Angle 80° / 80° (L/R & U/D) High Brightness 400 cd/m2 and Contrast 1000:1 Focus Peaking Assist Digital Zoom (4x, 9x, 16x) Assist RGB Histogram, Waveform, Vector Scope & Monochrome …etc. Functions Two Custom-setting Buttons (F1 & F2) POWER SUPPLY
( FOR GOPRO CAMERA, DISPLAY MONITOR,
DEPTH MONITOR & VWS)Removable Power Bank (22.5W, 10,000mAh) Operation Time: 2 Hours 30 minutes MAIN BODY DIMENSIONS 192mm(W) x 114mm(H) x 106mm(D) MAIN BODY WEIGHT
(INCL.: HOUSING BODY, POWER BANK, MEDIA
MOD, CAMERA, CAMERA BATT.)On Land: Approx. 1,900 g
Underwater : Approx. 550 gSTANDARD ACCESSORIES
Detachable & Foldable Monitor Hood x 1pc. Removable Power Bank (22.5W, 10,000mAh) x 1pc.

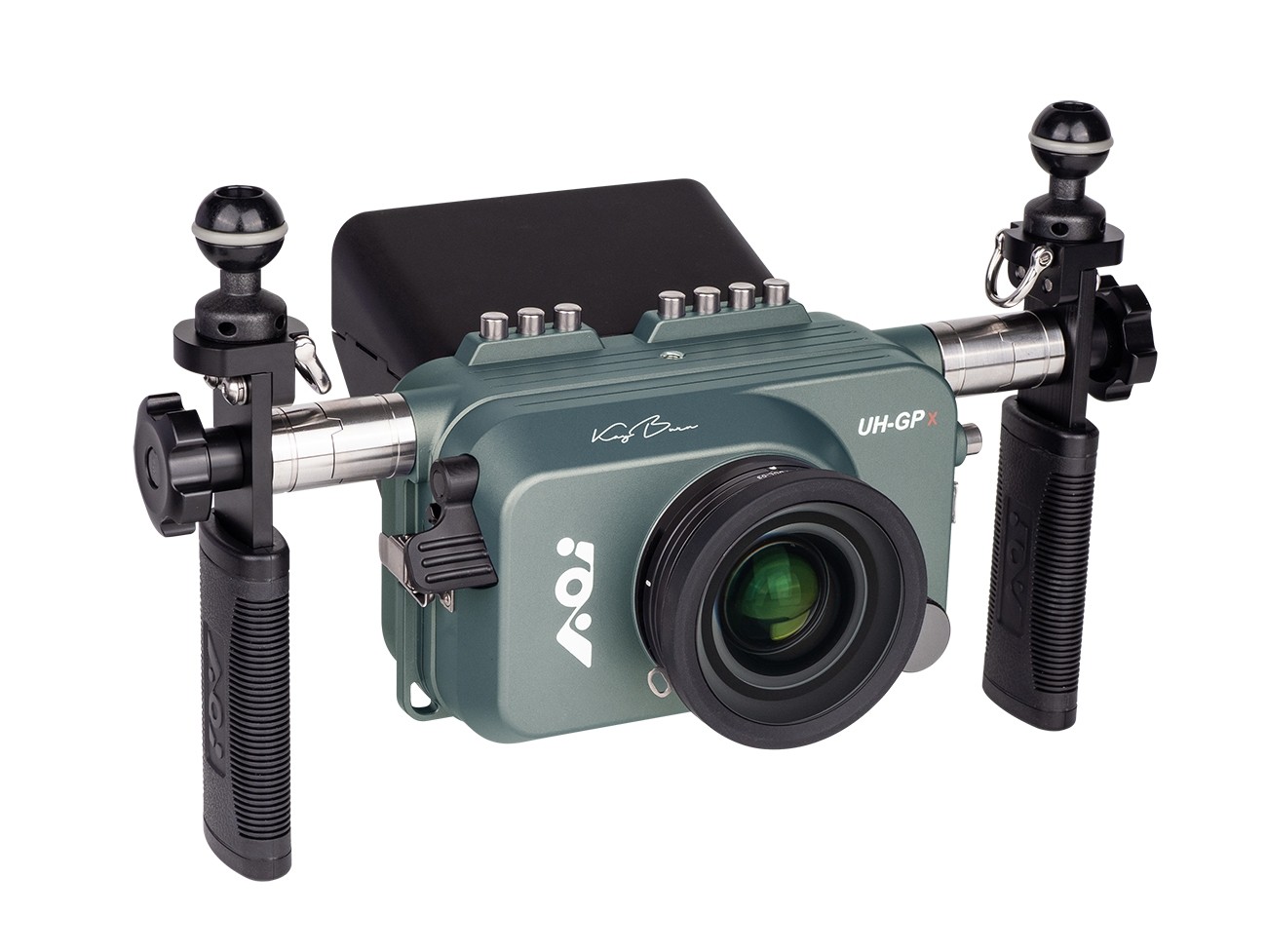

Vacuum Hand Pump x 1pc. ; Orientable Handgrip x 1pair
Wrench x 2pcs. ; Torx Screw x 2pcs.
Light Red & Deep Red Filters x 1pc each

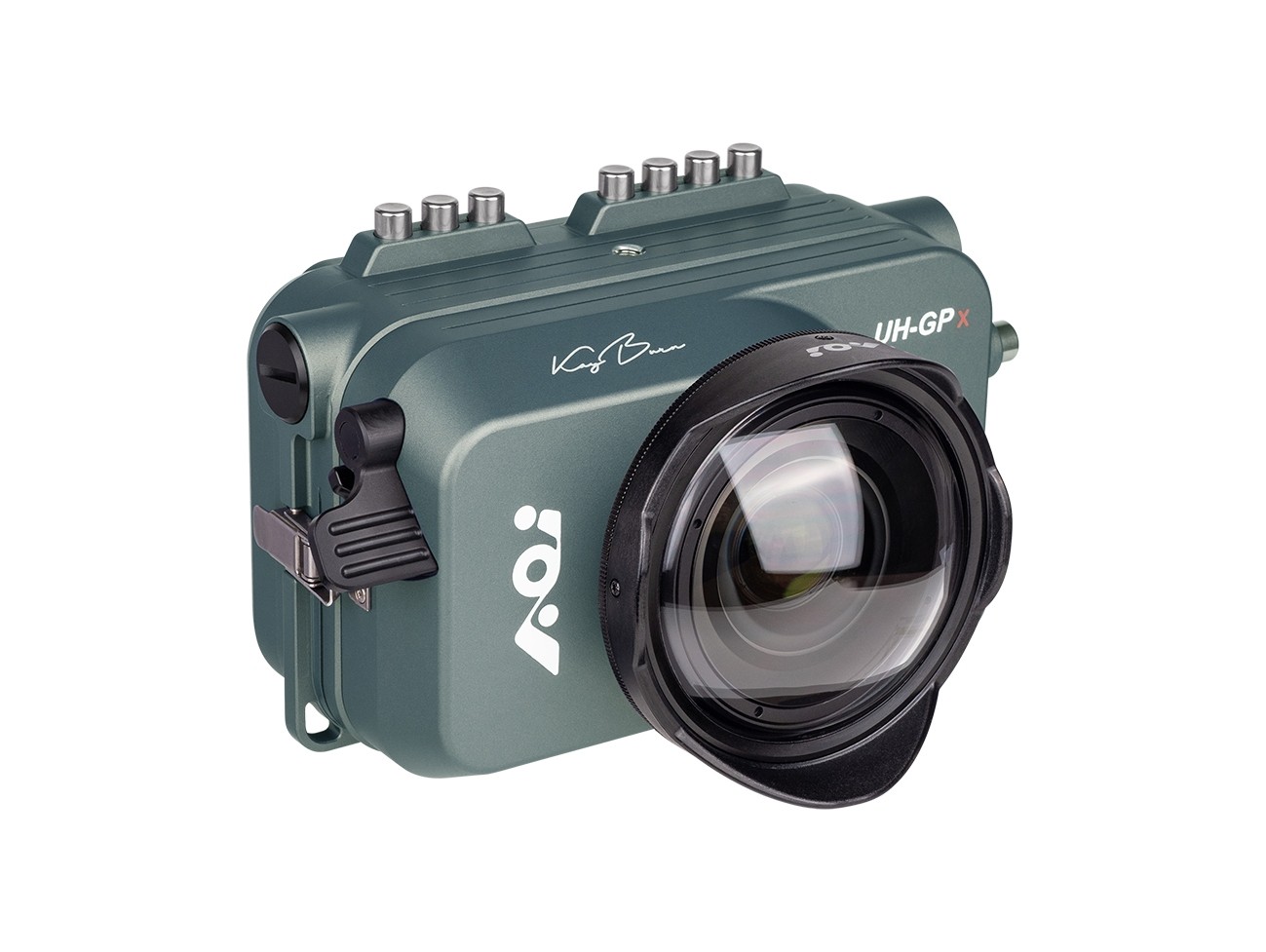

Wide Angle Lens UWL-03 x 1pc.
Close-up Lens UCL-03 x 1pc.
Spare Main Seal O-ring x 1pc.
Spare O-ring for Vacuum Valve Protection Cap x 1pc.
Silicone Grease x 1pc.
Moisture Muncher CapsulesTM x 1pc.

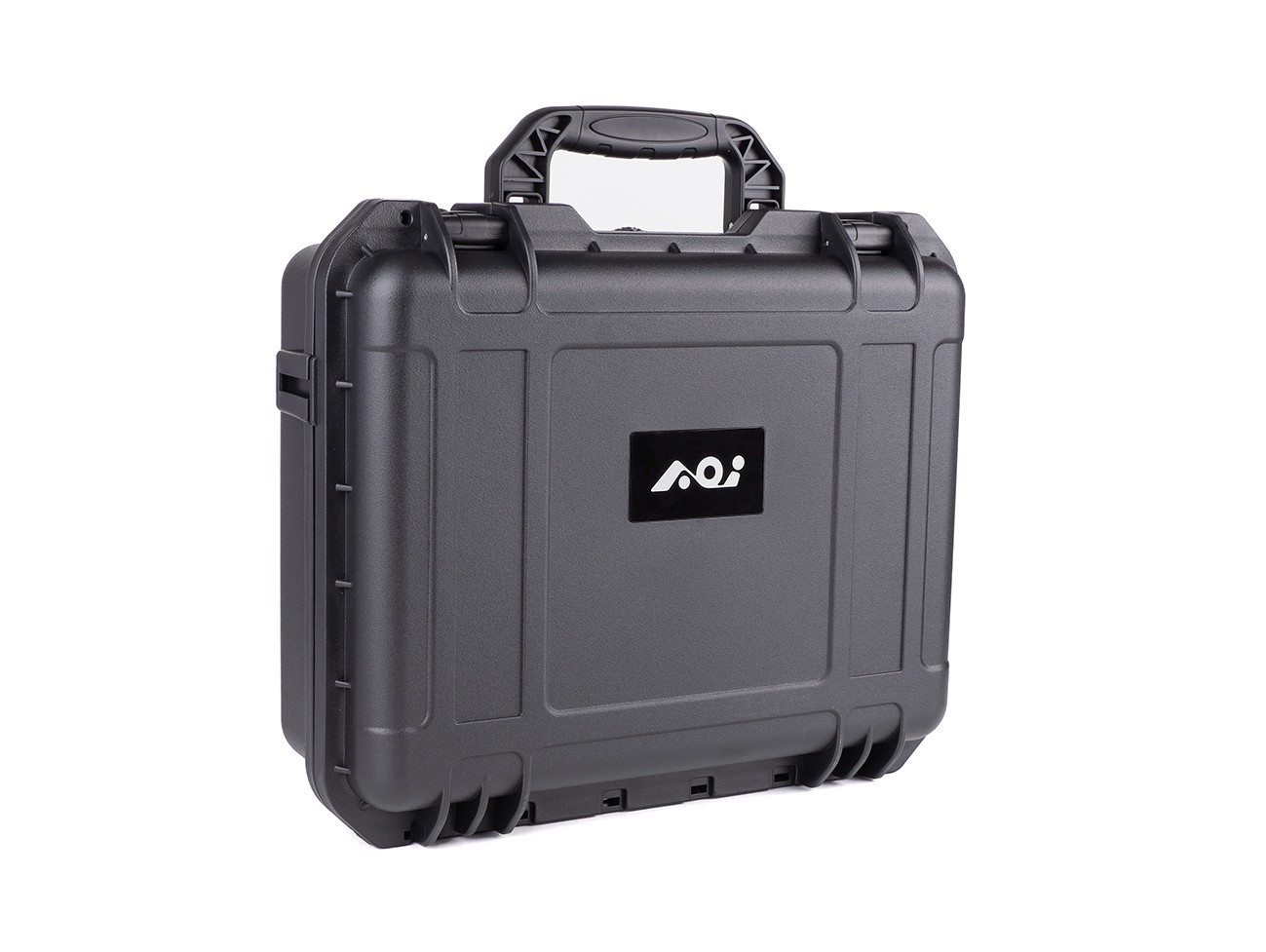

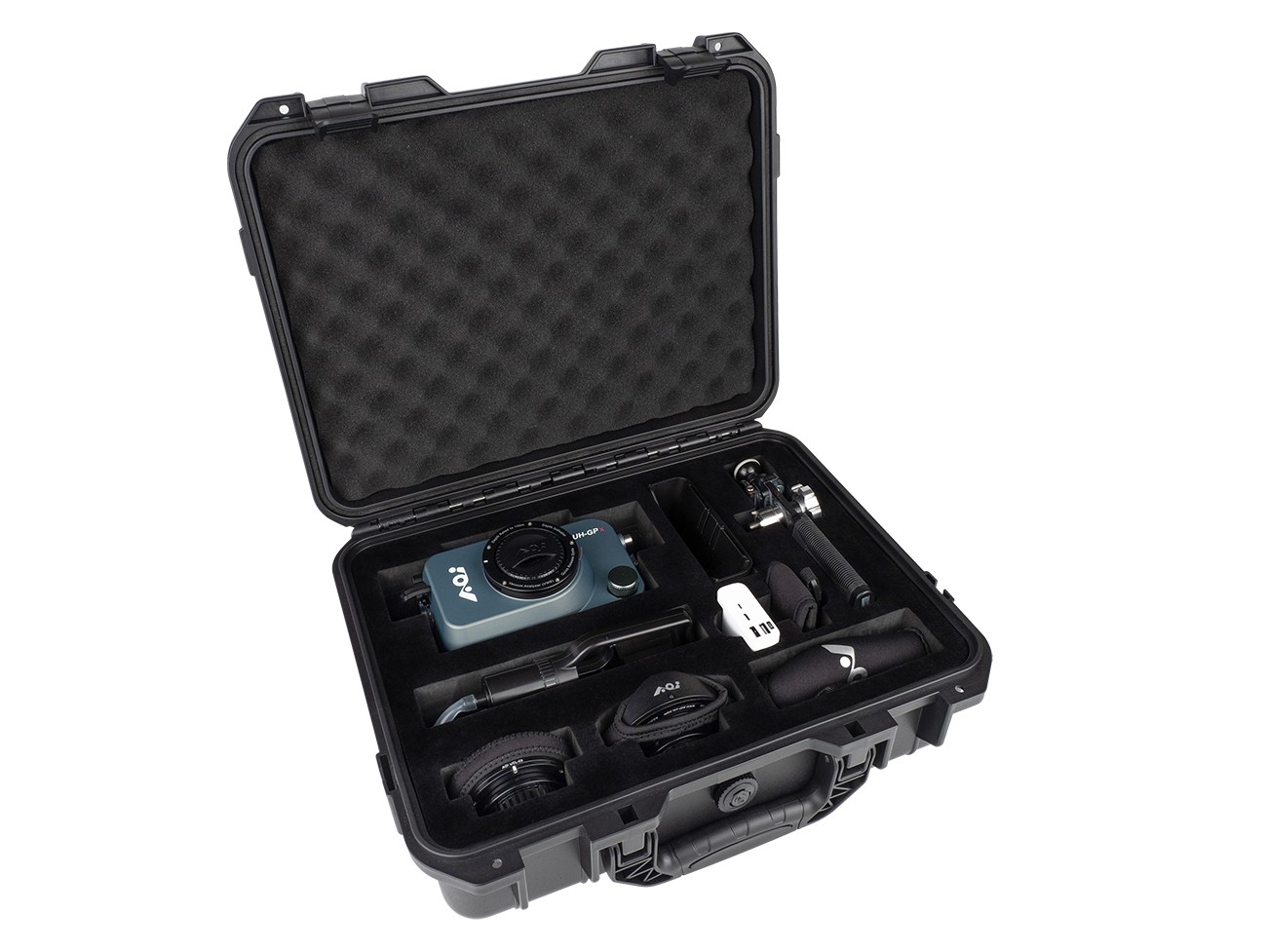

Splash Proof Carrying Case; Lanyard x 3pcs.
Media Mod for GoPro HERO12/11/10/9
Type-C Charging Cable x 1pc.
*Specifications and Appearances are subject to change without prior notice.
