AOI UCS-Q1RC-BLK

AOI UCS-Q1RC-BLK

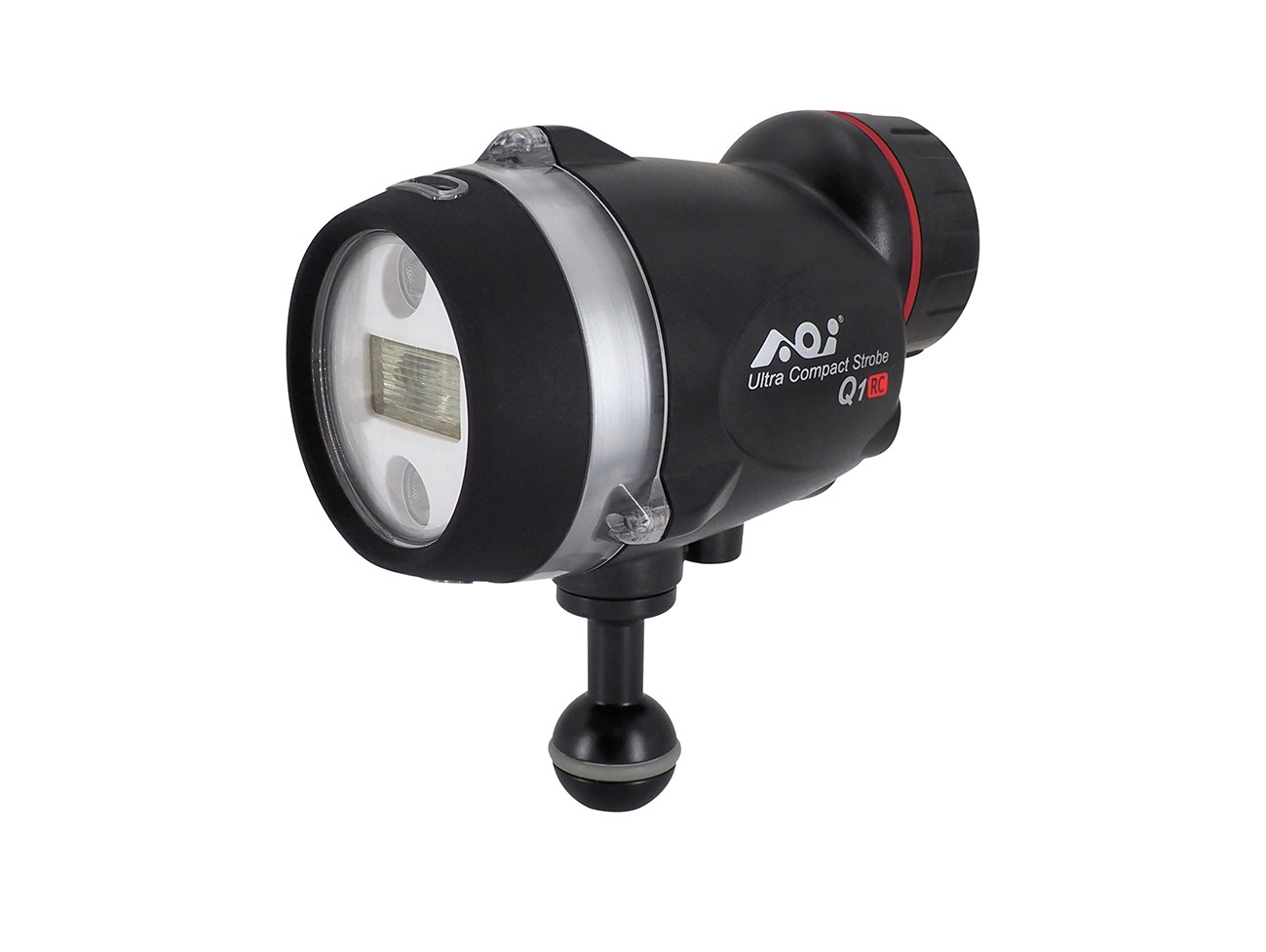

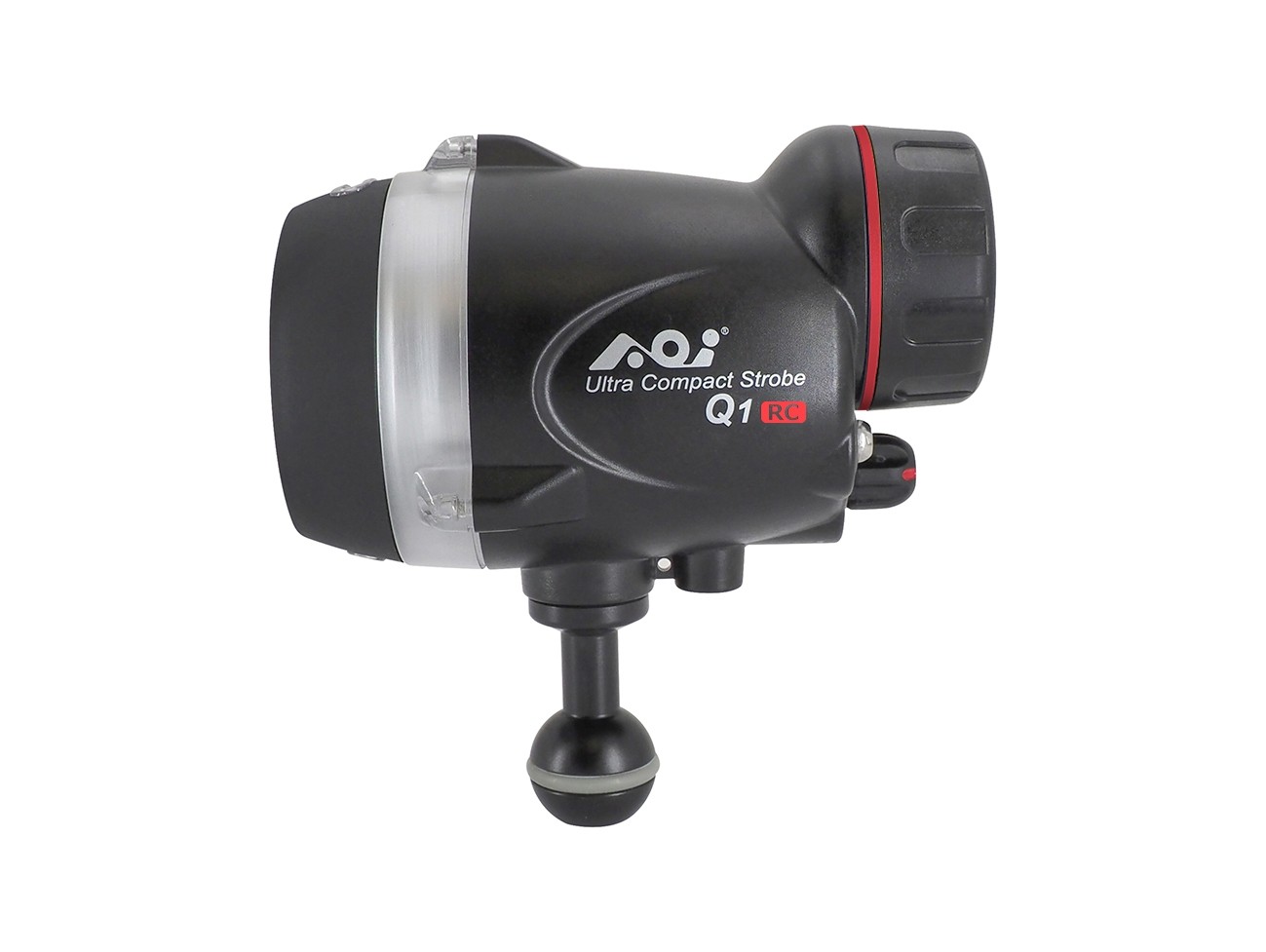

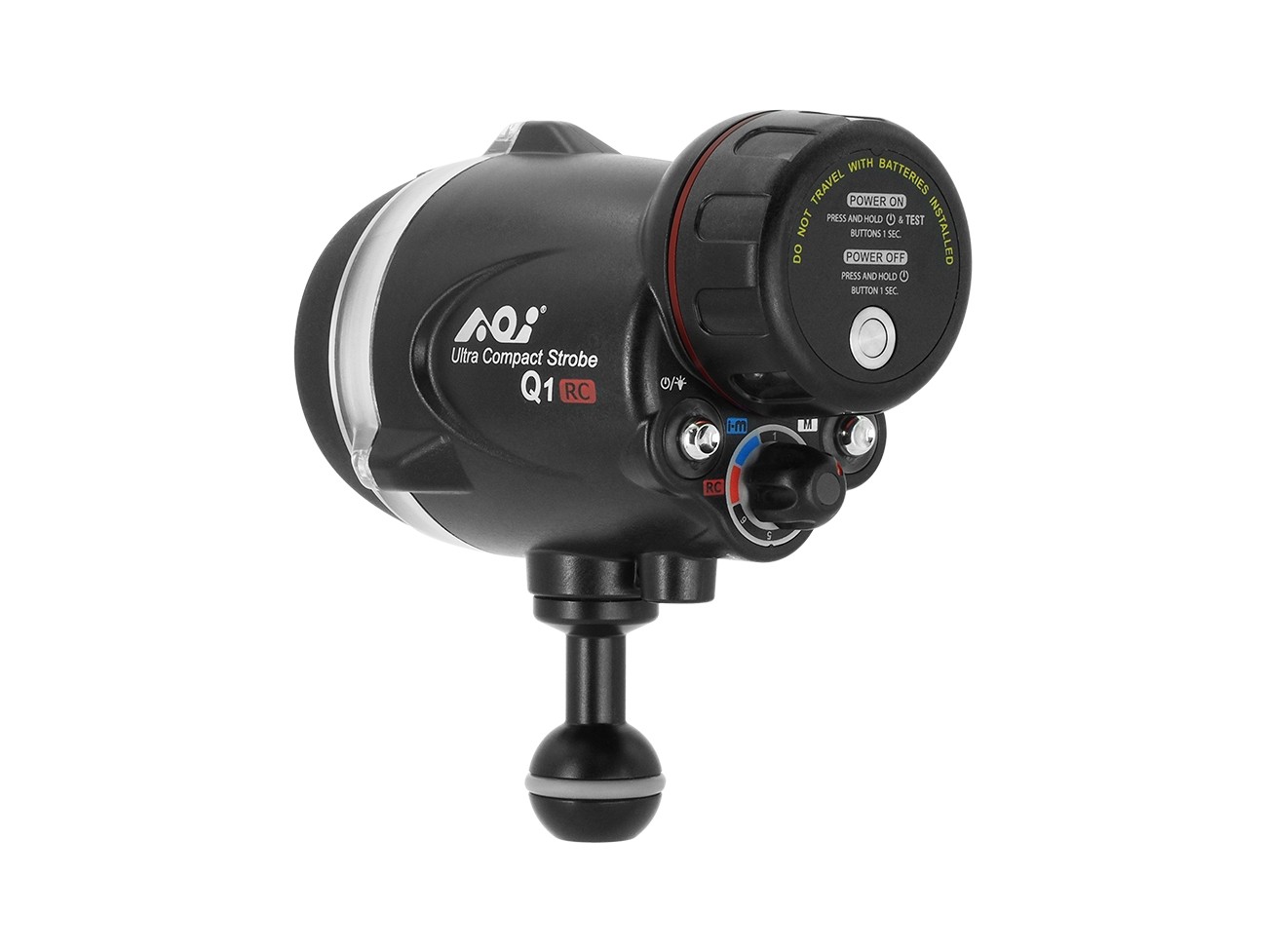

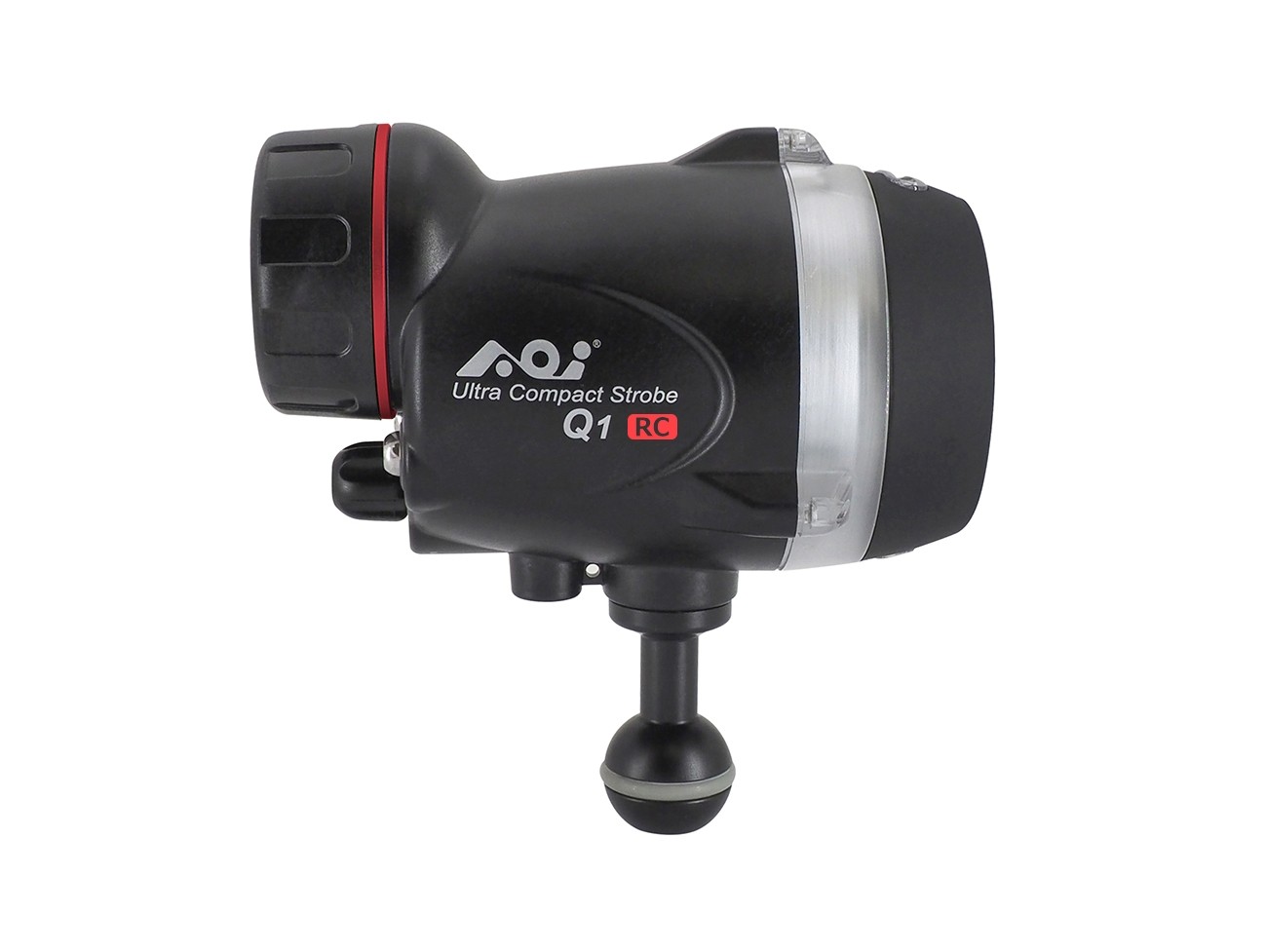

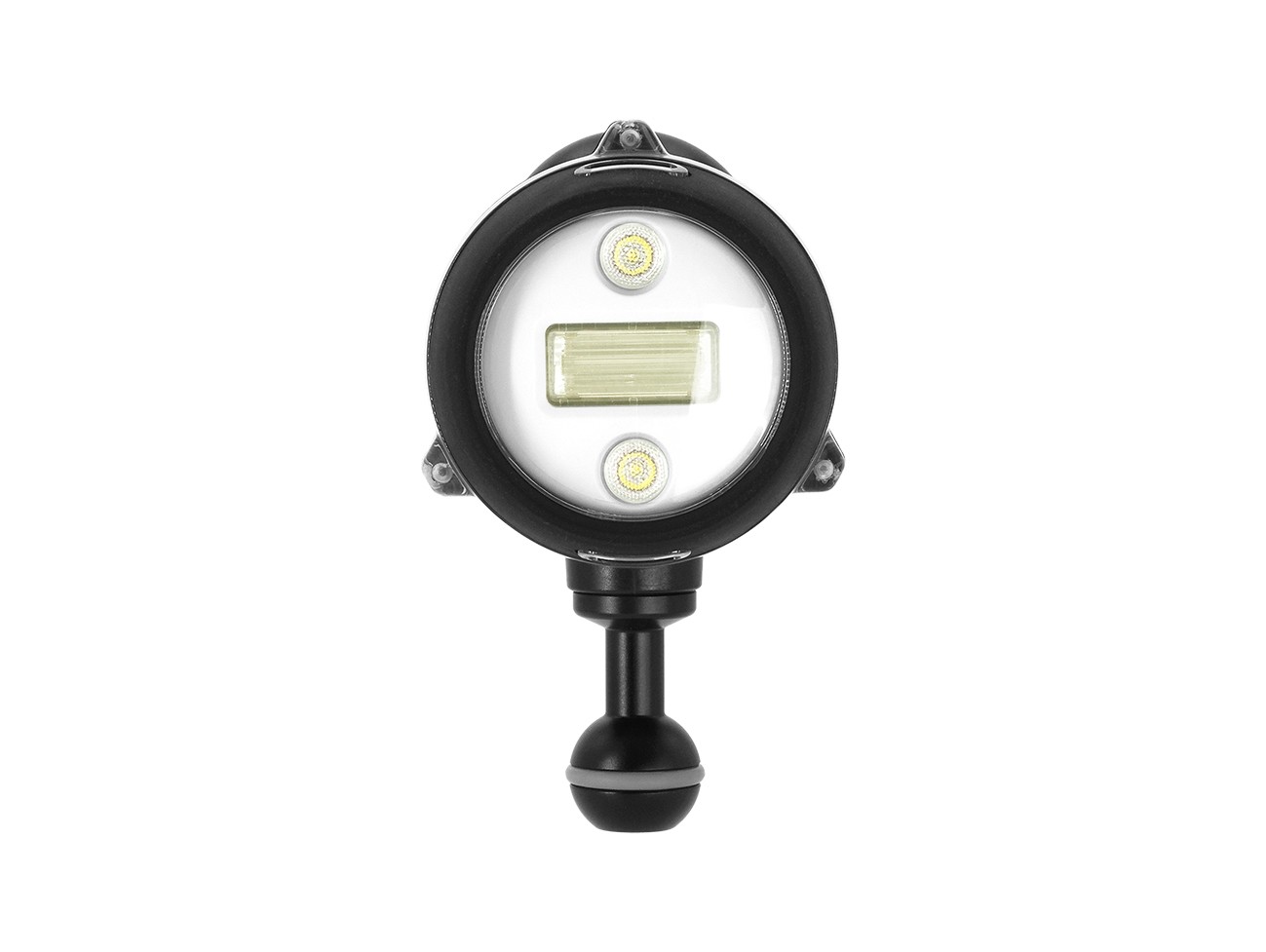

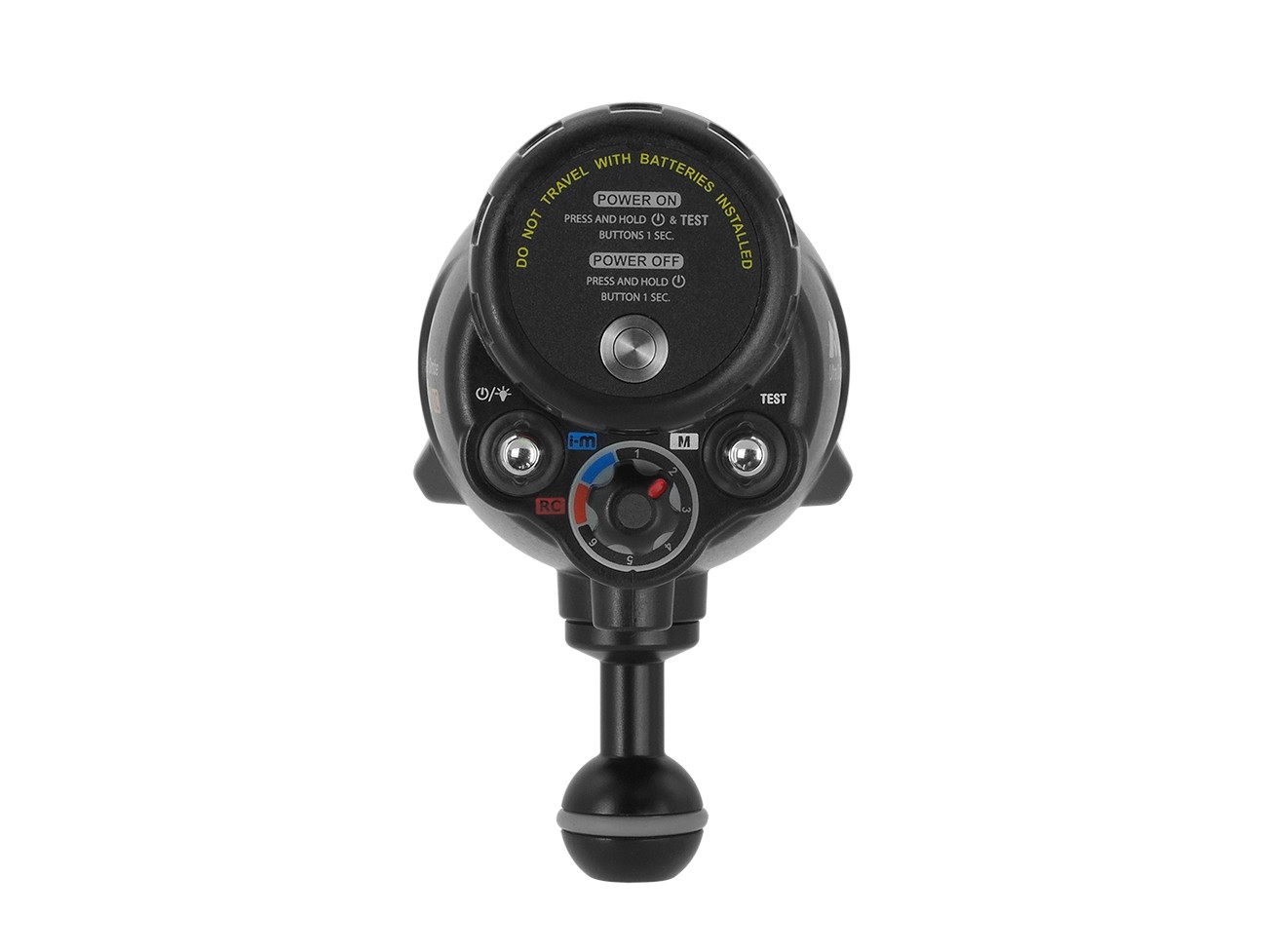

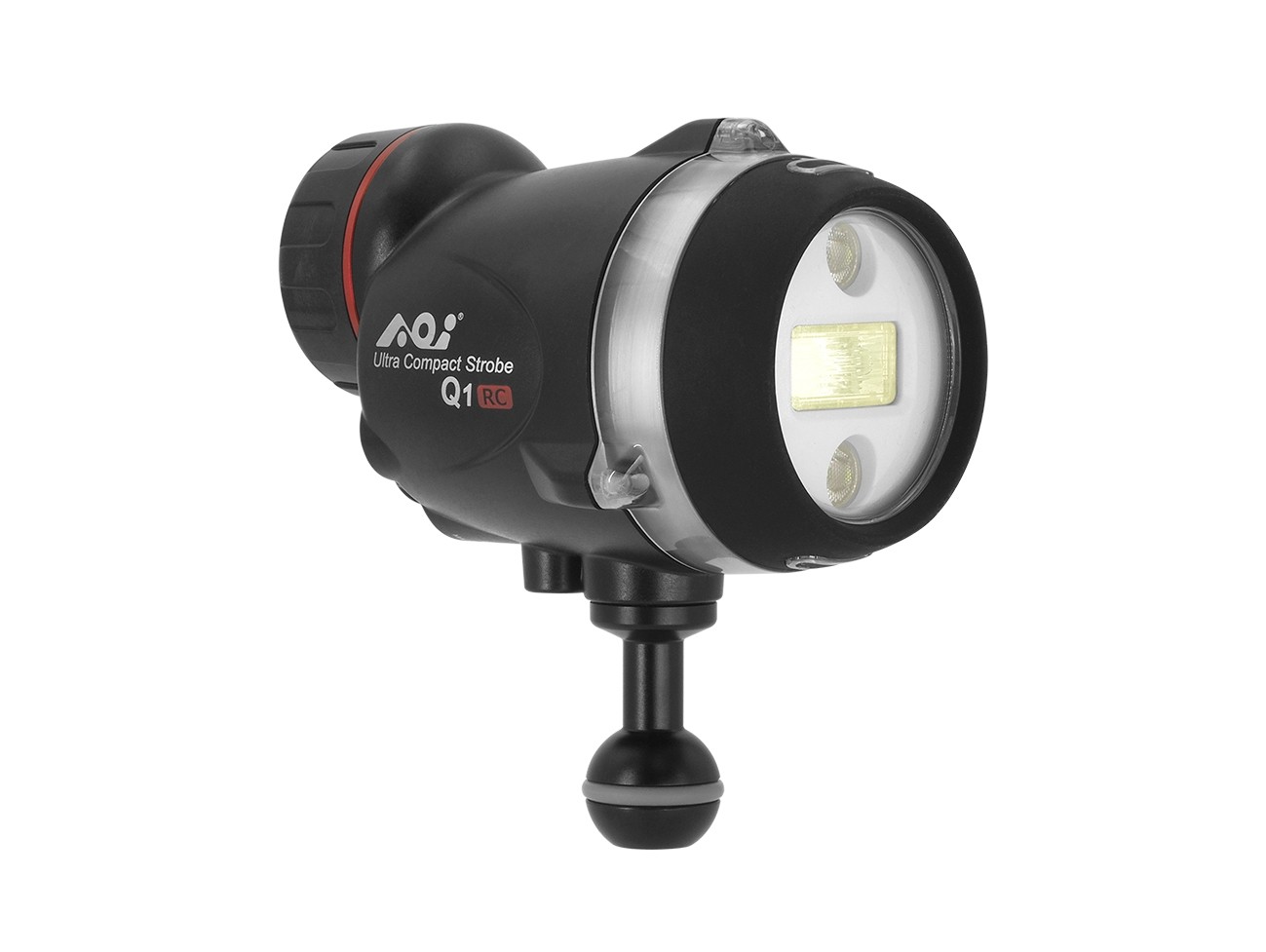

Underwater Ultra Compact Strobe

Specifications

Details

MODEL NUMBER

AOI UCS-Q1RC-WHT AOI UCS-Q1RC-BLK

DESCRIPTION

Underwater Ultra Compact Strobe

MAIN BODY COLOR

White Black

MAIN BODY MATERIAL

Polycarbonate + Glass Fiber

DEPTH RATING

60 Meters
STROBE

Guide Number

G.N.= 22

Color Temperature

5,600K (5,000K with Diffusor)

Beam Angles

With Diffusor Horizontal- 85°, Vertical- 85°

Flash Recharge Time

0.85 Second (Full Power)

Number of Flashes

1,500 times (Using Flash Only, Full Power and with 3,100mAh Li-Ion Batteries)

Flash Sync.

By Fiber Optical Cable (Multi-cores Fiber Optical Cable is Recommended)

Pre-flashes Sync.

Auto Learning
Flash Modes RC Mode OMDS / RC FLASH (Group A, Channel 1)
TTL AUTO, MANUAL, FP TTL AUTO, FP MANUAL
i-Macro Mode TTL AUTO, MANUAL, Snooting (Group A, Channel 1)
Manual Mode 6 Steps Setting: 1/64, 1/24, 1/8, 1/4, 1/2 & 1/1

Modelling Flash

2 Seconds Flashing Duration / Press

Flash Test Button

Yes
LED LIGHTS Maximum Output 700 Lumens
Power Control 25%, 50%, 100% and OFF
Color Temp. 5600K
Beam Angles 45°
Burn Time 130 Minutes (Using LED Only, Full Power and with 3,100mAh Li-Ion Batteries.)
BATTERY REQUIREMENTS 18650 Li-Ion Rechargeable Battery x2pcs (Battery is not included with the product)
Output Current Minimum 5A
Battery Length Minimum 68.5mm
STROBE MOUNTING 1" Ball Mount Only (Non-replaceable)
DIMENSIONS 125mm (L) x 77mm (W) x 131mm (H)
WEIGHT On Land Approx. 550g (Batteries included)
Underwater Approx. 90g (Batteries included)
STANDARD ACCESSORIES Strobe Diffusor for Q1 Series SD-01
Control Knob Extension for Q1 Series CKE-01
Spare O-ring set for Q1 Series SOR-01
O-ring Remover ORR-01
Silicone Grease (5g) SIGR-5
Battery Storage Case BSC-18650-2 (Rechargeable Battery is not included)


*Specifications and Appearances are subject to change without prior notice.
