- Specifications
-
Details
MODEL NUMBER
AOI UCS-Q1RC-WHT AOI UCS-Q1RC-BLK DESCRIPTION

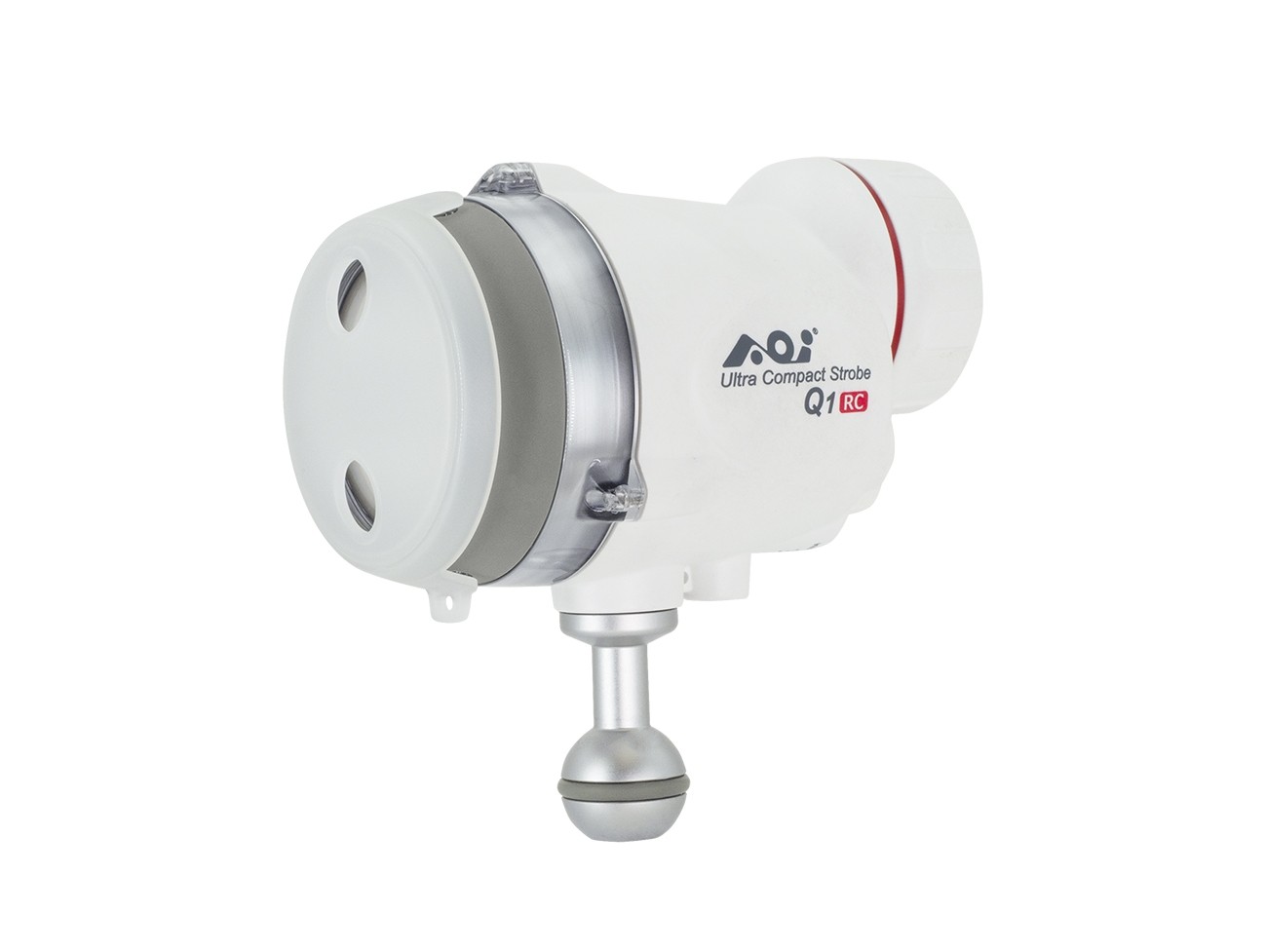

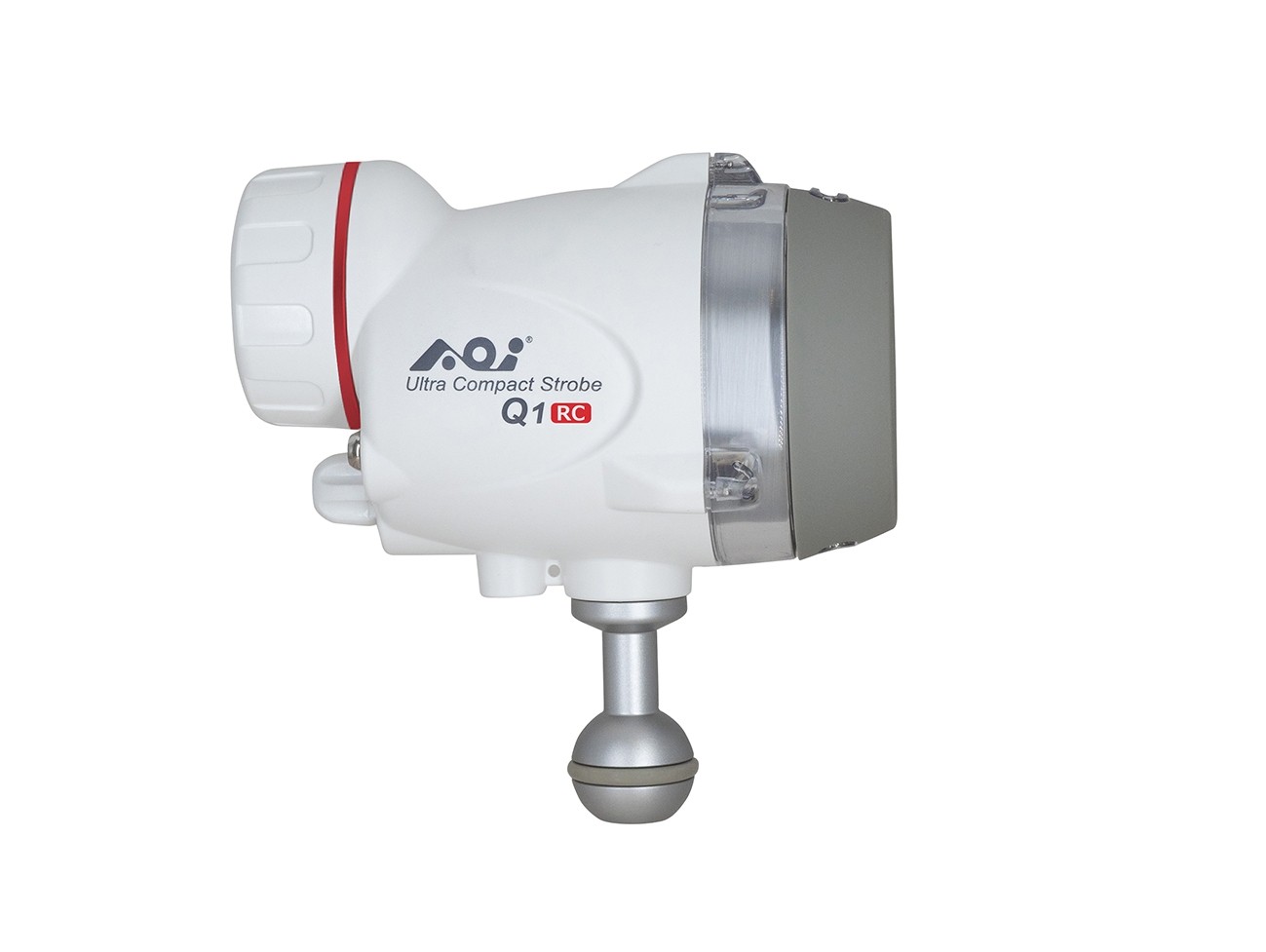

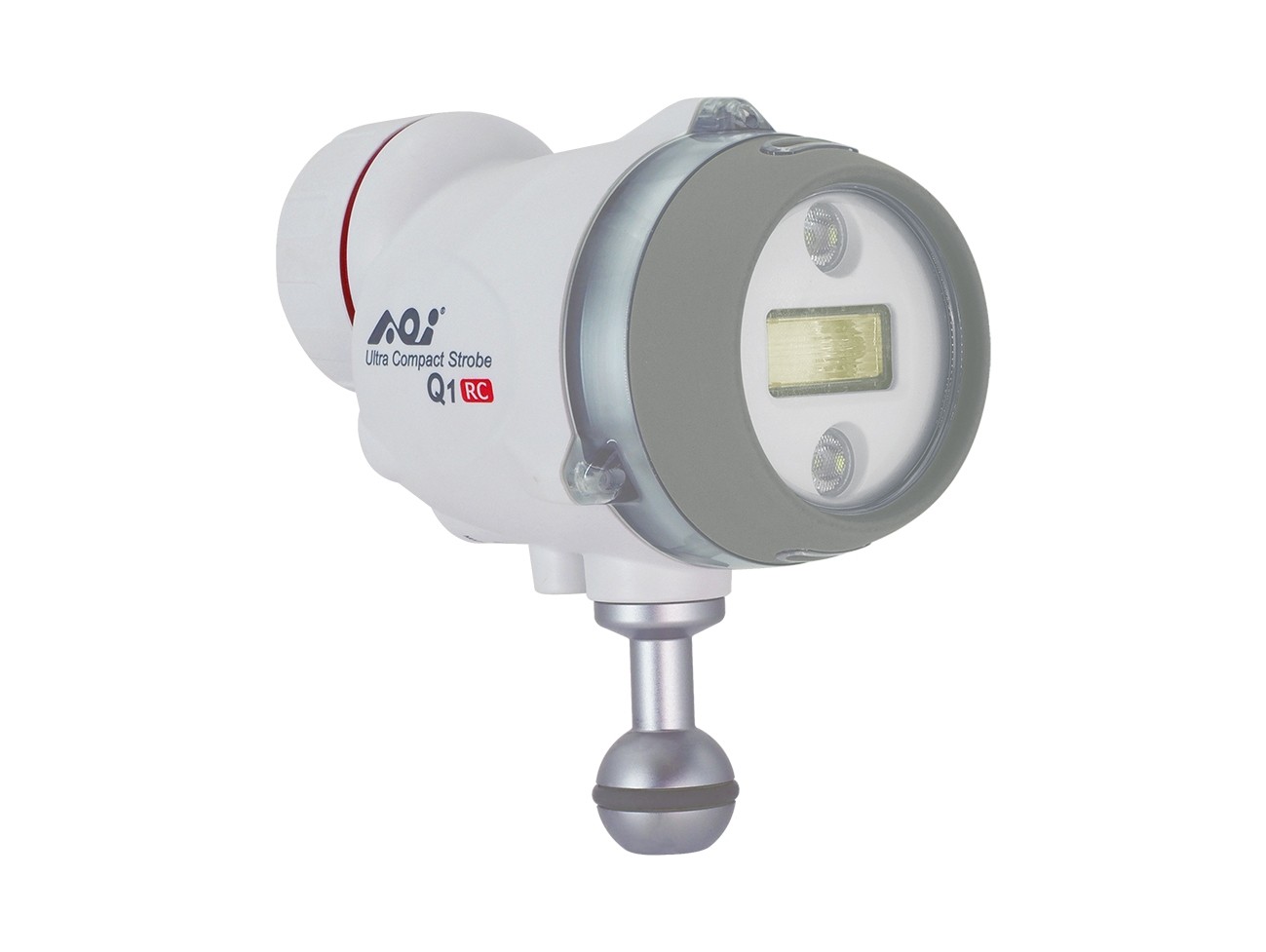

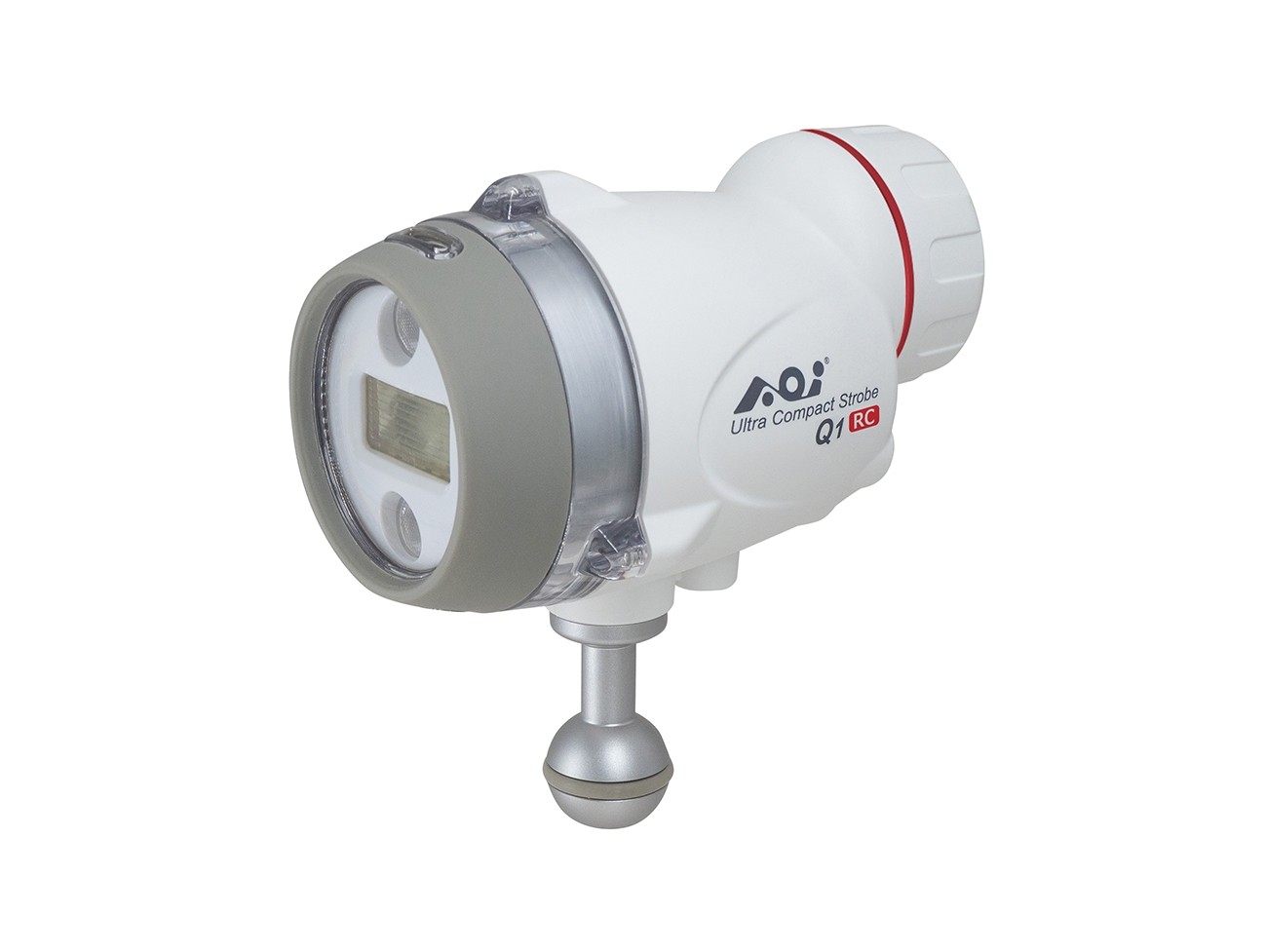

Underwater Ultra Compact Strobe MAIN BODY COLOR
White Black MAIN BODY MATERIAL
Polycarbonate + Glass Fiber WATERPROOF LEVEL
60 Meters STROBE GUIDE NUMBER
G.N.= 22 COLOR TEMPERATURE
5,600K (5,000K with Diffusor) BEAM ANGLES
With Diffusor Horizontal- 85°, Vertical- 85° FLASH RECHARGE TIME
0.85 Second (Full Power) NUMBER OF FLASHES
1,500 times (Using Flash Only, Full Power and with 3,100mAh Li-Ion Batteries) FLASH SYNC.
By Fiber Optical Cable (Multi-cores Fiber Optical Cable is Recommended) PRE-FLASHES SYNC.
Auto Learning FLASH MODES RC MODE OMDS / RC FLASH (Group A, Channel 1)
TTL AUTO, MANUAL, FP TTL, FP MANUAL
I-MACRO MODE TTL AUTO, MANUAL, Snooting (Group A, Channel 1)
MANUAL MODE 6 Steps Setting: 1/64, 1/24, 1/8, 1/4, 1/2 & 1/1
MODELLING FLASH
2 Seconds Flashing Duration / Press FLASH TEST BUTTON
Yes LED LIGHTS MAXIMUM OUTPUT 700 Lumens POWER CONTROL 25%, 50%, 100% and OFF COLOR TEMP. 5600K BEAM ANGLE 45° BURN TIME 130 Minutes (Using LED Only, Full Power and with 3,100mAh Li-Ion Batteries.) BATTERY REQUIREMENTS 18650 Li-Ion Rechargeable Battery x2pcs (Battery is not included with the product) OUTPUT CURRENT Minimum 5A BATTERY LENGTH Minimum 68.5mm STROBE MOUNTING 1" Ball Mount Only (Non-replaceable) DIMENSIONS 125mm (L) x 77mm (W) x 131mm (H) WEIGHT ON LAND Approx. 550g (Batteries included) UNDERWATER Approx. 90g (Batteries included) STANDARD ACCESSORIES Strobe Diffusor for Q1 Series SD-01 Control Knob Extension for Q1 Series CKE-01 Spare O-ring set for Q1 Series SOR-01 O-ring Remover ORR-01 Silicone Grease (5g) SIGR-5 Battery Storage Case BSC-18650-2 (Rechargeable Battery is not included)
*Specifications and Appearances are subject to change without prior notice.
