MODEL NUMBER	AOI UIS-P1
DESCRIPTION	Ultra InTeLi Strobe - Performance 1
MAIN BODY COLOR	Silver
MAIN BODY MATERIAL	Polycarbonate + Glass Fiber, Alluminum Alloy With Hard Anodization
DEPTH RATING	100 Meters
STROBE	Energy	150 Ws
	Beam Angle	150°
	Color Temperature	5,900K
	Recycle Time	1.8 sec.	Full Power with 5,300mAh, 20A, Li-ion Battery
	Number of Flashes	540
	Sync. Method	By Fiber Optical Cable (Multi-core Fiber Optical Cable is Recommended)
	Pre-flash Sync.	ON / OFF Setting
	Flash Test Button	Yes

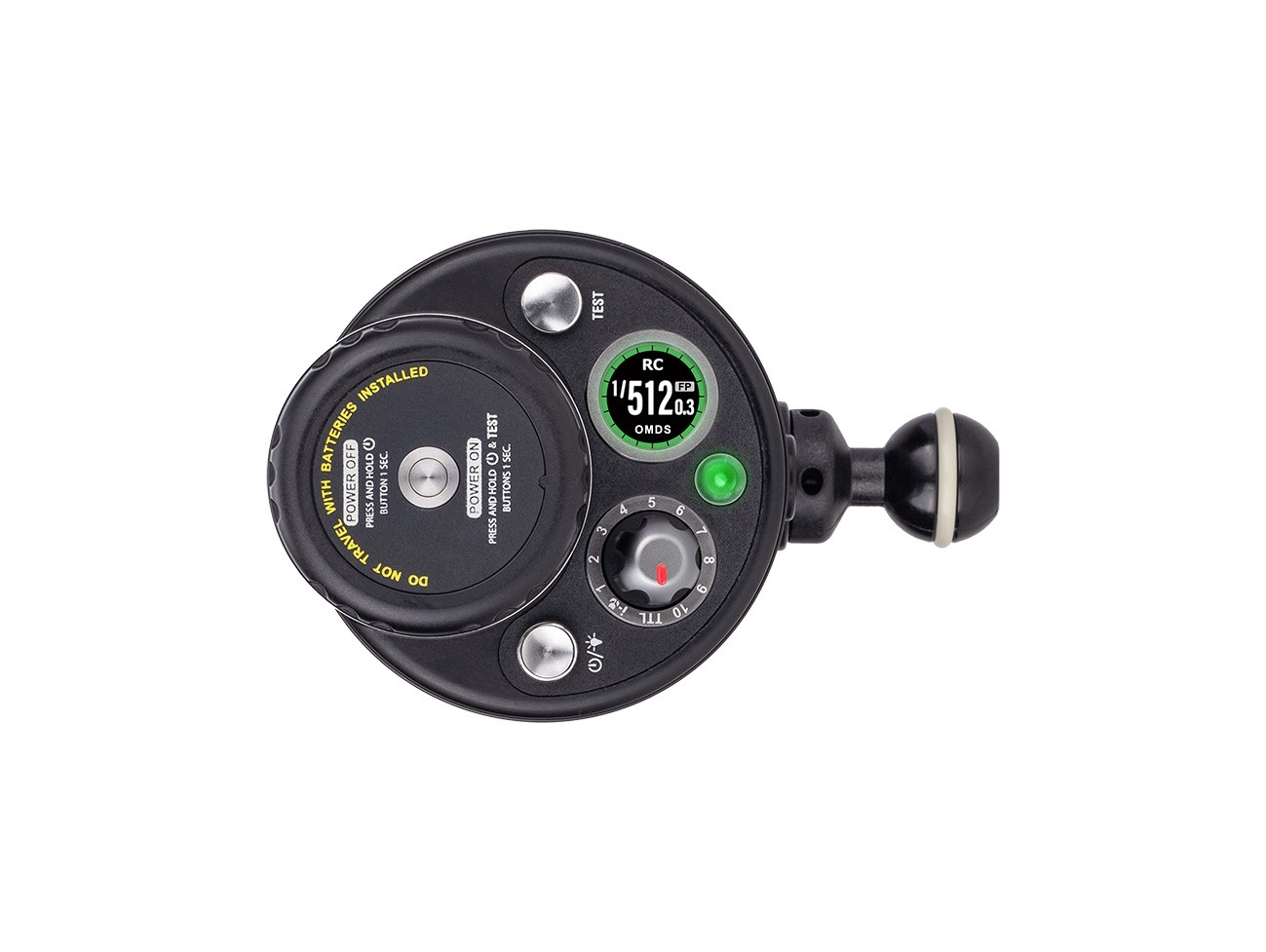

	Flash Modes	RC / TTL Mode	OM System Cameras: RC FLASH (TTL AUTO, MANUAL, FP TTL AUTO, FP MANUAL) CH 1, 2, 3, 4, Group A, B, C Sony Cameras: TTL, TTL-HSS
		i-Macro Mode
		Manual Mode	Manual / M-HSS Setting:1/32+0.5, 1/16, 1/16+0.5, 1/8, 1/8+0.5, 1/4, 1/4+0.5, 1/2, 1/2+0.5 & 1/1

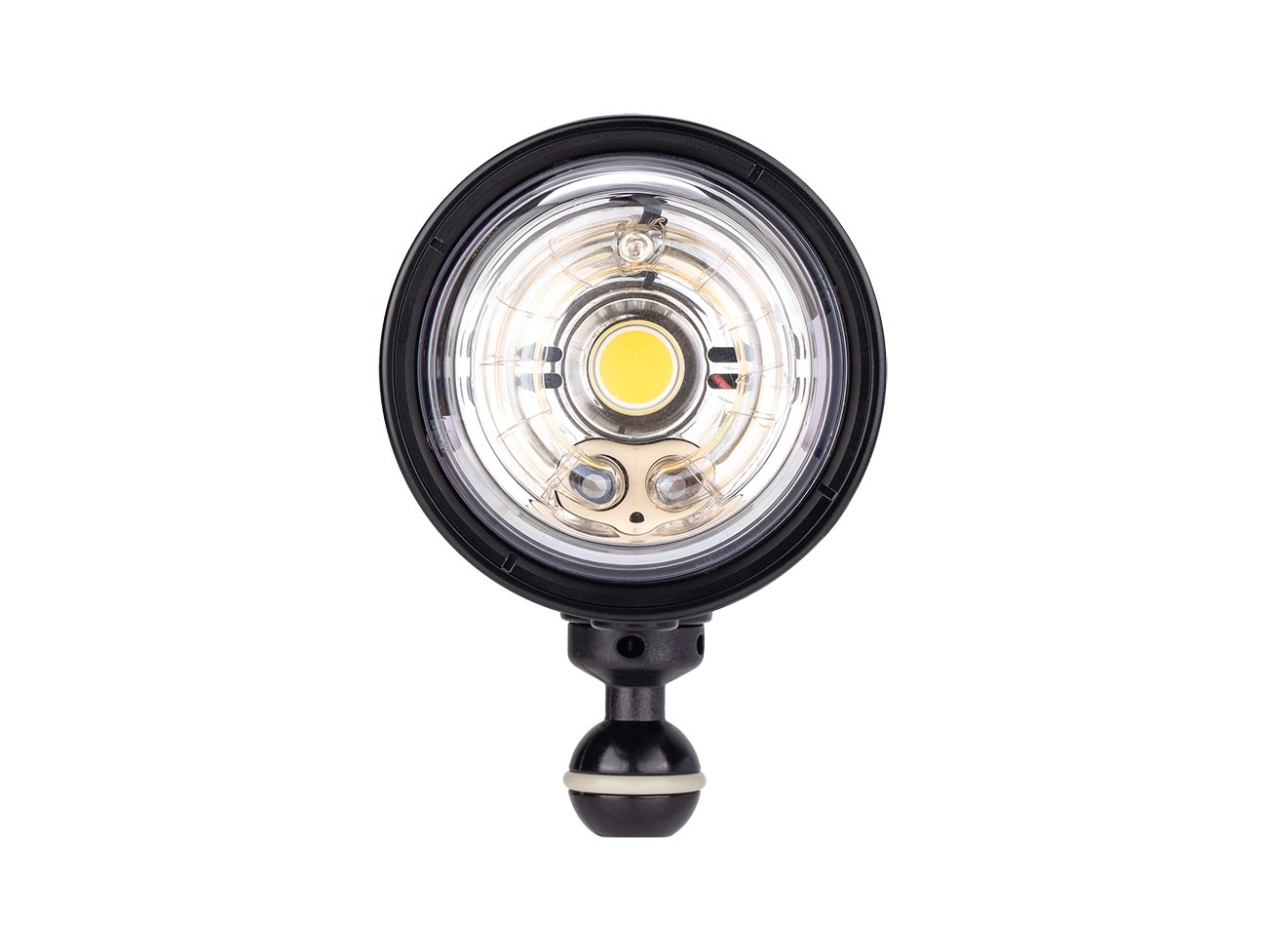

COB LIGHT	Maximum Output	Measured On Land with Diffuser(SD-03-5500K)	3000 Lumens
	Color Temperature		4,500K
	Beam Angle		100°
	Power Control	OFF, 25%, 50%, 100%
	Flash Auto Shut-off	Yes
	Burn Time	60 Minutes (Using COB Light Only, Max. Brightness and with 5,000 mAh, Li-ion Batteries)

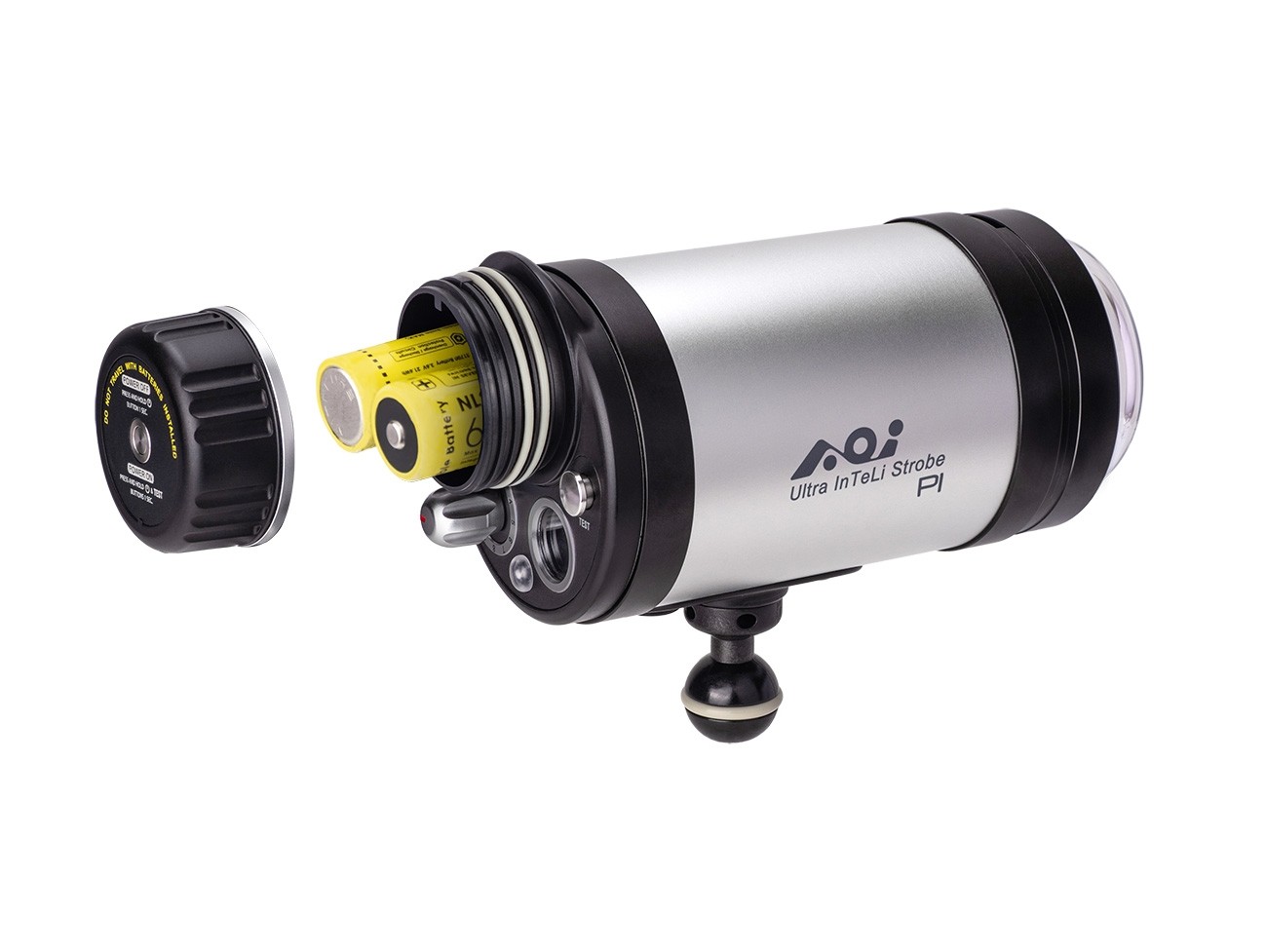

BATTERY REQUIREMENTS	21700 Li-ion Rechargeable Battery x 2pcs (Batt Not Included In Product)
	Output Current	Min. 15A
	Capacity	Min. 5,000 mAh
	Battery Protection PCB	Required
	Battery Size	Length 75mm ~ 77mm, Diameter ≤ 21.9mm

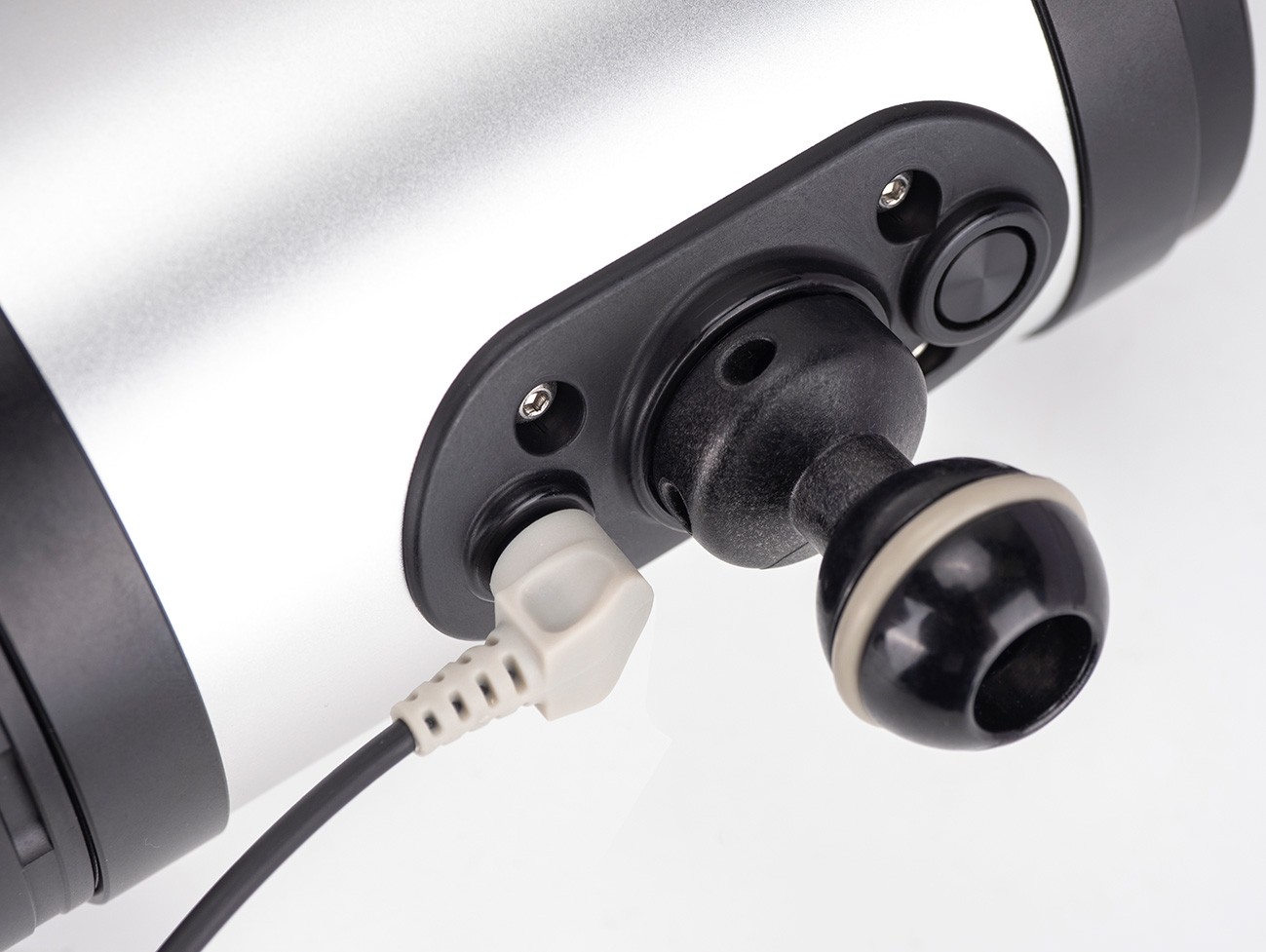

MOUNTING	Ball Mount
DIMENSIONS	205mm (L) x 91mm (W) x 133.5mm (H)
WEIGHT	On Land	Approx. 1,180 g (With batteries, without diffuser)
	Underwater	Approx. 230 g (With batteries, without diffuser)

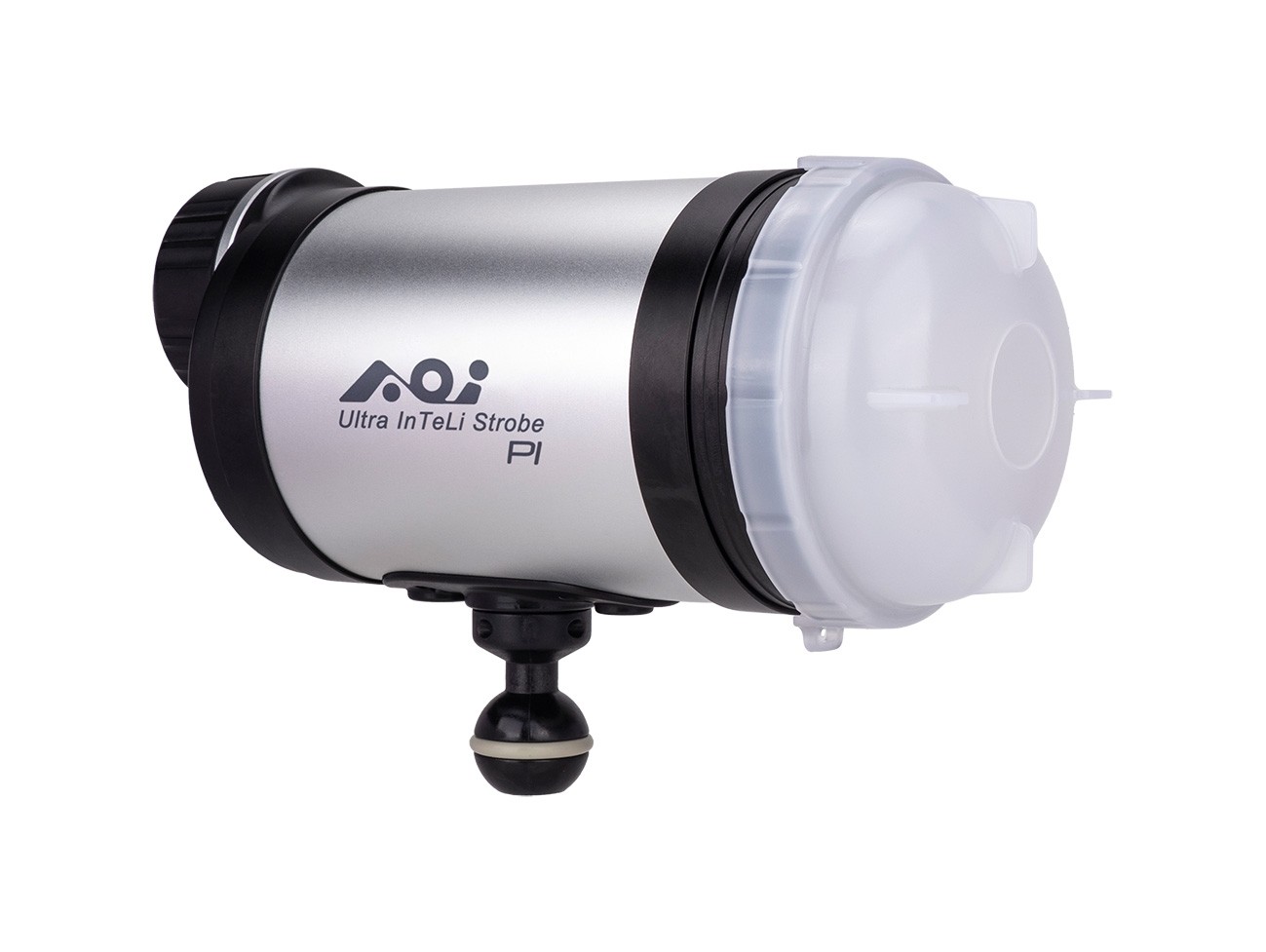

STANDARD ACCESSORIES	Strobe Diffuser (SD-03-5500K) x1pc
	Ball Mount x1pc, Allen Key x1pc
	Spare Main Seal O-ring for Battery Cap (SOR-10) x2pcs, Control Knob Extension (CKE-01-BLK) x1pc
	O-Ring Remover (ORR-02) x1pc
	Silicone Grease (1.5g) x1pc, Battery Storage Case x1pc (Battery not included)
