- Specifications
-
Details

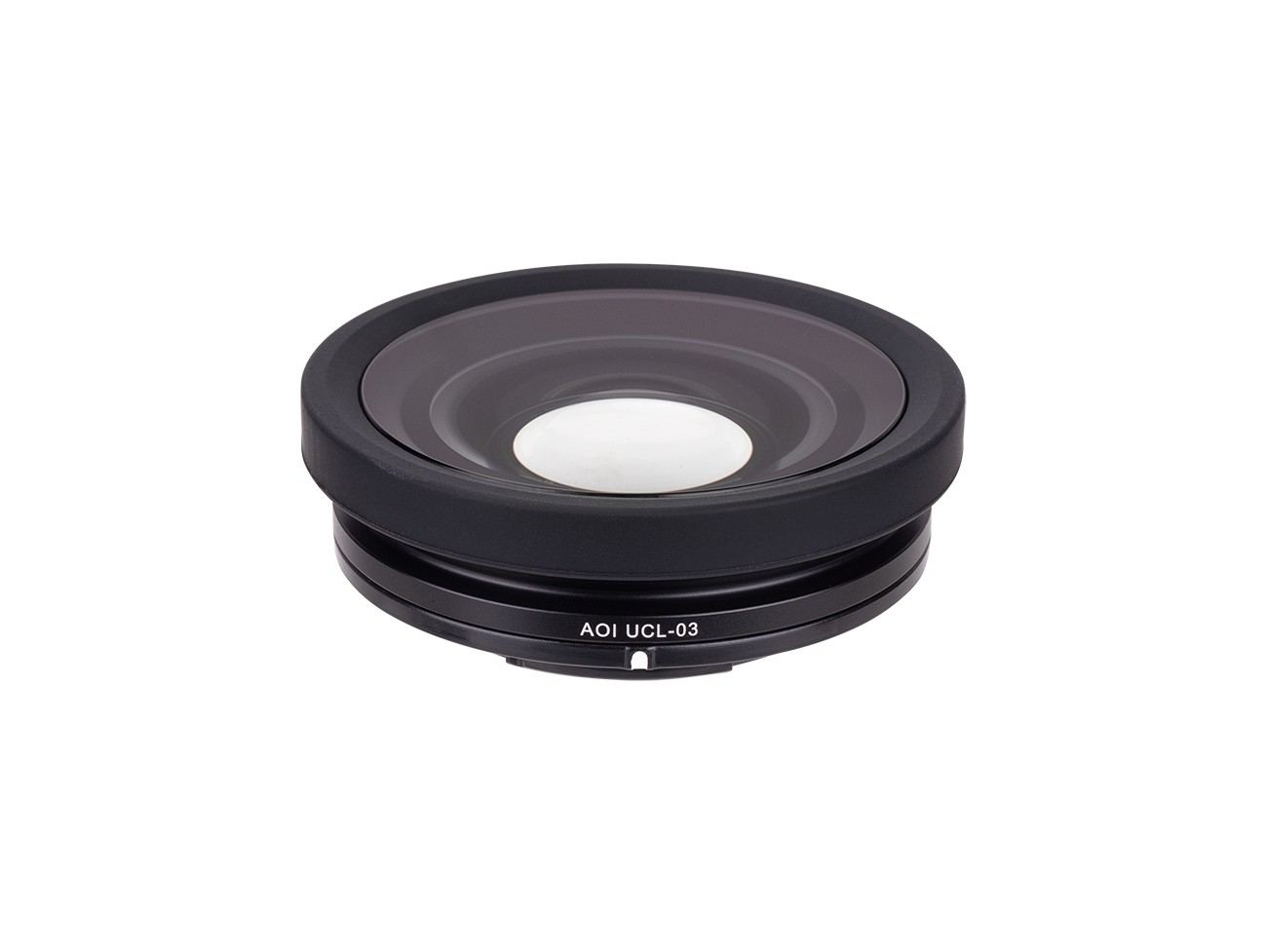

MODEL AOI UCL-03 DESCRIPTION Underwater Close-up Lens for Action Camera & Phone LENS CONSTRUCTION 3 Elements in 3 Groups MATERIAL All Lens Elements in Optical Glass
Lens Barrel in Hard Anodized Aluminum Alloy
Silicone Front Bumper RingLENS COATING All Glass Lens Elements with Multi-layers AR Coating FIELD OF VIEW (UNDERWATER) 90 Degree FOCUS DISTANT
(UNDERWATER)40mm (min.) to 78mm (max.)
From the front lens element to the SubjectLENS MOUNT Using AOI Quick Release System- 02 (QRS-02)
Lens pre-installed with QR2 Mount
(Compatible with the most popular AD Mount)OPTIONAL LENS MOUNTS AD-M55-UWL-03 Adapter for UWL-03 with M55 Thread Mount
AD-M52-UWL-03 Adapter for UWL-03 with M52 Thread Mount AD-QR2-UWL-03 Adapter for UCL-03 with QR2 MountDEPTH RATING 60 Meters / 200 Ft. DIMENSIONS Φ81mm(D) x 28.5mm(H) WEIGHT ON LAND 283 g UNDERWATER 180 g STANDARD ACCESSORIES Neoprene Front Lens Cap, Rear Lens Cap in QR2 Mount,
Lens Pouch (AOI LPC-01), Lens Secure Line (AOI QRL-01)
*Specifications and Appearances are subject to change without prior notice.
