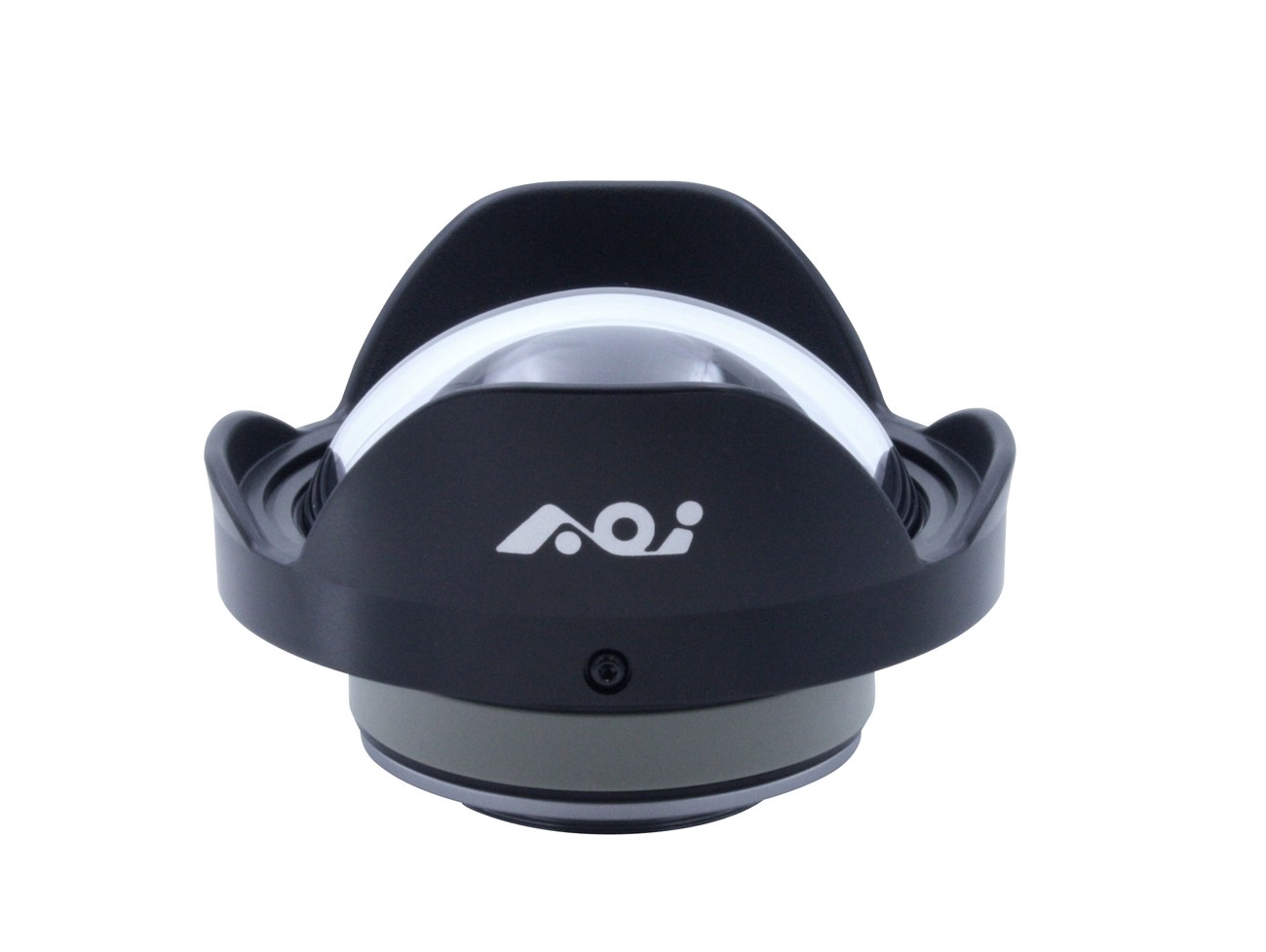

AOI UWL-400A

0.50X Underwater Wide Angle Conversion Wet Lens

Specifications

Details

Model

UWL-400A

Description 0.5X Ultra-wide Angle Conversion Lens with QRS-01 compatible
Lens Construction 5 Elements in 5 Groups
Lens Coating

All Glass Lens Elements with Multi-layers AR Coating,
Front PC Dome Lens with Hard Coating

Field of View (diagonal) Underwater 120°(with 25mm Lens)
Magnification 0.50X (on land / underwater)
Minimum Object Distant 0 mm to the Front Dome Lens (on land / underwater)
Mount System M52 Thread changeable for quick release adapter
Depth Rating 100 Meters / 330 Ft.
Bezel / Body Material ABS / Hard Anodized Aluminum Alloy
Weight
(on land / underwater)
606g (on land)
224g (underwater)
Dimensions 121.8mm (D) X76mm (H)
Standard Accessories

Neoprene Dome Cover (DNC-02), Rear Lens Cap (LRC-01),
Lens Secure Line (LSL-03) and Carry Case(LPC-04)


*Specifications and Appearances are subject to change without prior notice.
