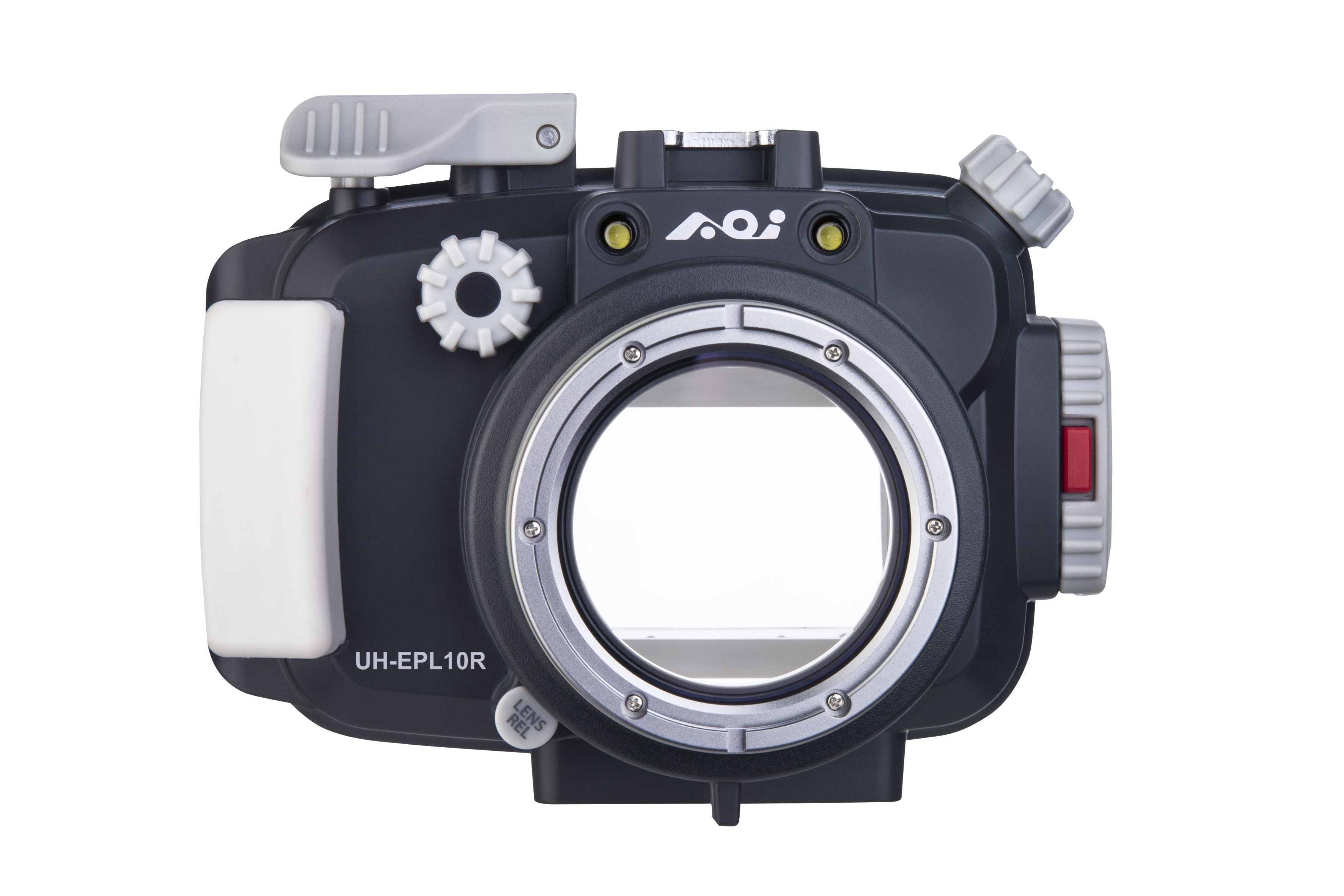

AOI UH-EPL10R-GRY

Underwater Housing for Olympus PEN E-PL9 or E-PL10 Camera

Specifications

Details

MODEL NUMBER

AOI UH-EPL10R-GRY

DESCRIPTION

Underwater Housing for Olympus PEN E-PL9 or E-PL10 Camera
COMPATIBLE
CAMERA M ODELS
Olympus PEN E-PL9 or E-PL10 with kit lens
M.ZUIKO DIGITAL ED 14-42mm F3.5-5.6 EZ
MAIN MATERIAL Housing Body : Polycarbonate
Flat Port Glass : Optical Glass with double sided
multi-layer AR coating

DEPTH RATING

45 Meters

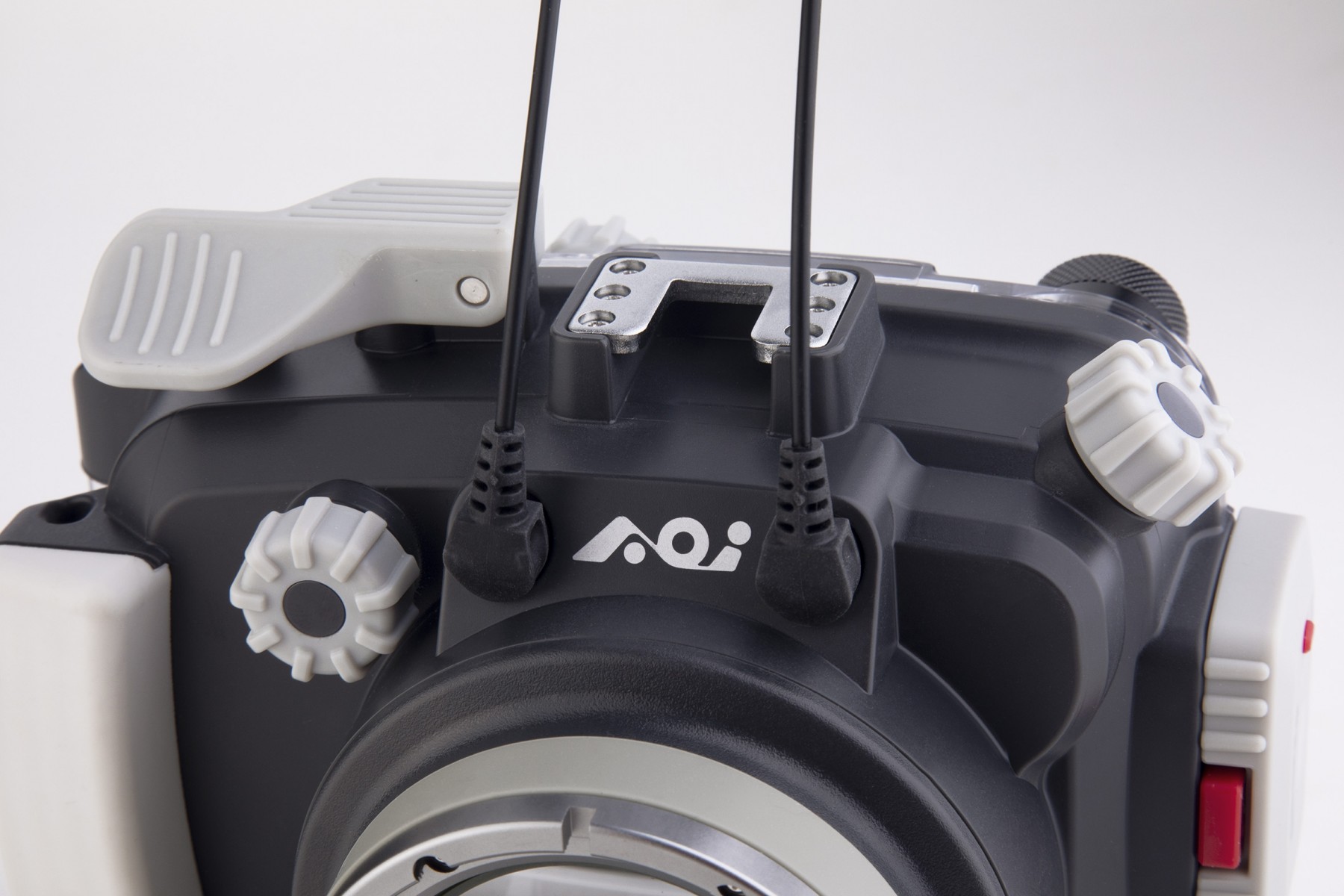

BUILT-IN LED FLASH TRIGGER Compatible with
a) Manual Flash Trigger (with and without Pre-flashes Function)
b) Olympus RC Mode (TTL AUTO, MANUAL, FP TTL AUTO, FP MANUAL)

WATER LEAKAGE PROTECTION

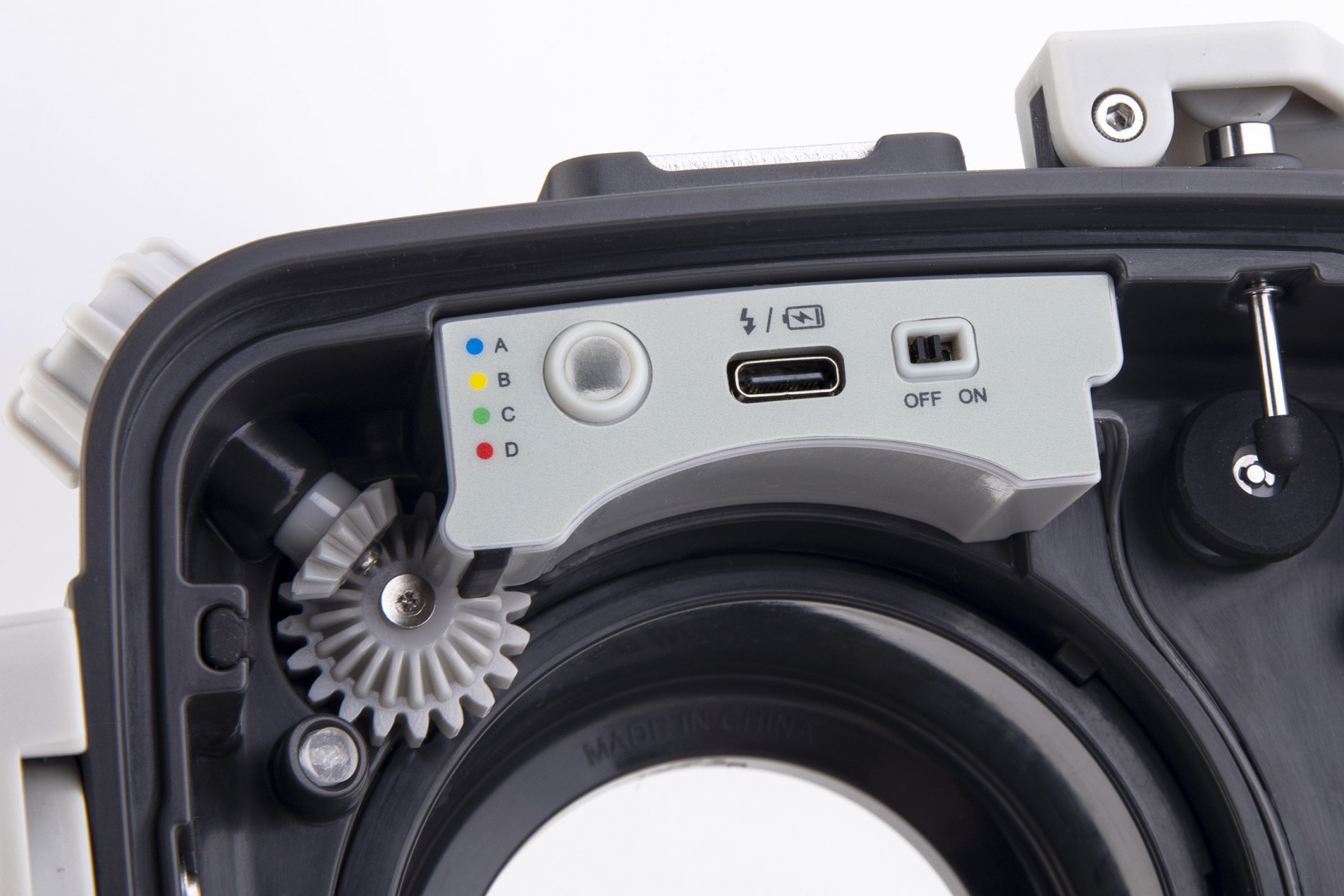

Built-in Vacuum Analyzation and Wet Detection System (VWS)

BATTERY POWER

Built-in Rechargeable Lithium Polymer Battery (3.7V 110mAH)
BATTERY CHARGING By USB Charger DC5V, 0.5A (not included)
Approx. 1.5 Hours for a full charge

BATTERY OPERATION TIME

Approx. 2 days (Based on 3 Dives/Day and 1 Hour/Dive)

DIMENSIONS

Approx. 166mm (W) x 128mm (H) x 135.5mm (D)
WEIGHT On Land : Approx. 734g
(Only included the Housing Body and Kit Port)
Underwater : Approx. 26g
(Only included the Housing Body and Kit Port)
STANDARD ACCESSORIES

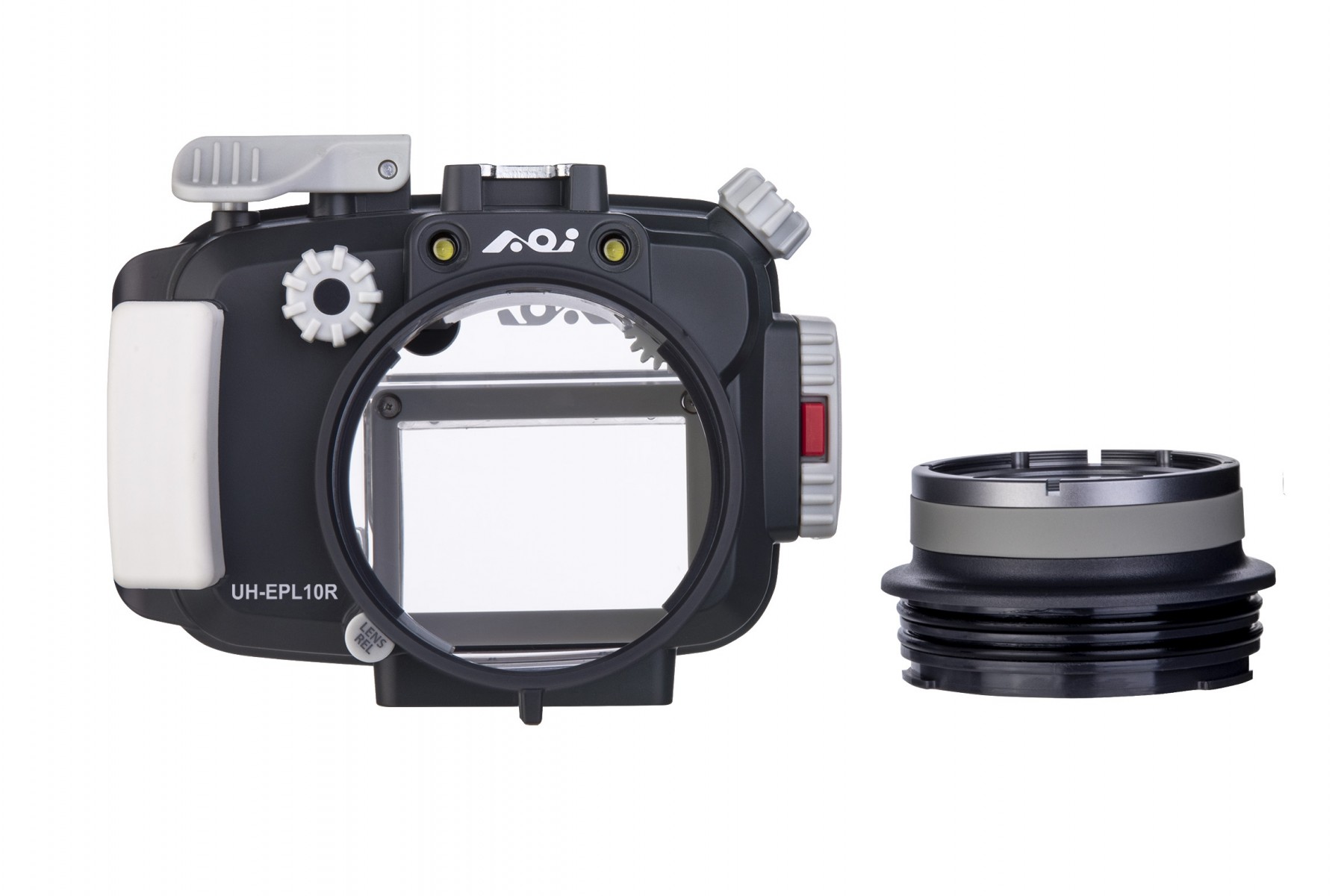

Flat Port (AOI FLP-06-GRY);USB Type-C Charging Cable

Lens Gear (AOI LG-OM-1442EZ);Vacuum Pump ( AOI VP-02)

Hot Shoe Connector (AOI HSC-02);Extended Shutter Release Lever

Spare Main Seal-ring x 1pc. (AOI HOR-01);O-ring Remover (AOI ORR-02)

Spare O-ring for Vacuum Valve Protection Cap x 1pc. (AOI SRVV-01)

Silica Gel (AOI SIGE-3) X 3pcs.;Silicone Grease (AOI SIGR-5)

Port Front Cap for M67 Thread (AOI LFC-01);Port Rear Cap for PEN Mount (AOI PRC-02)

Lanyard (AOI LYD-01);LCD Monitor Hood


*Specifications and Appearances are subject to change without prior notice.
