- Specifications
-
Details

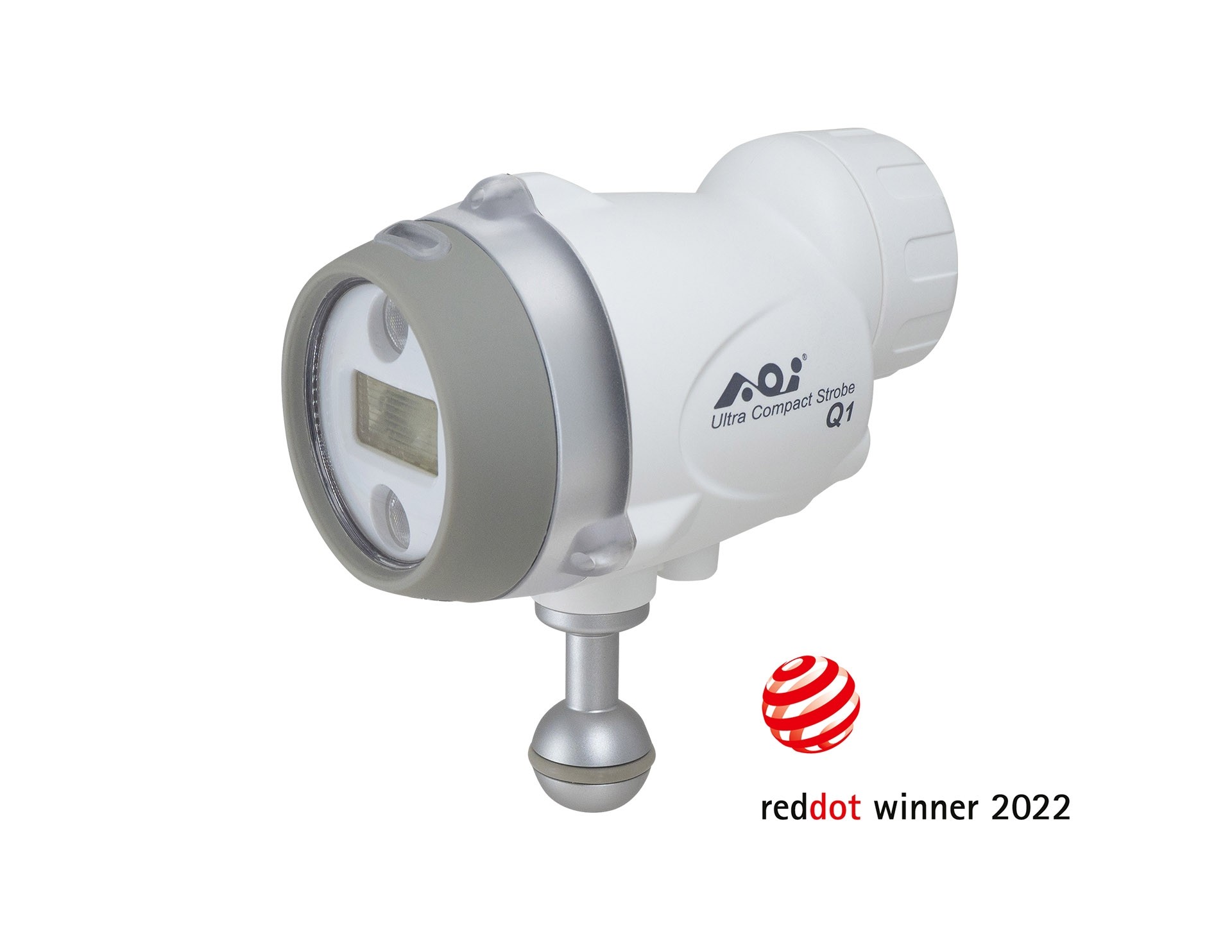

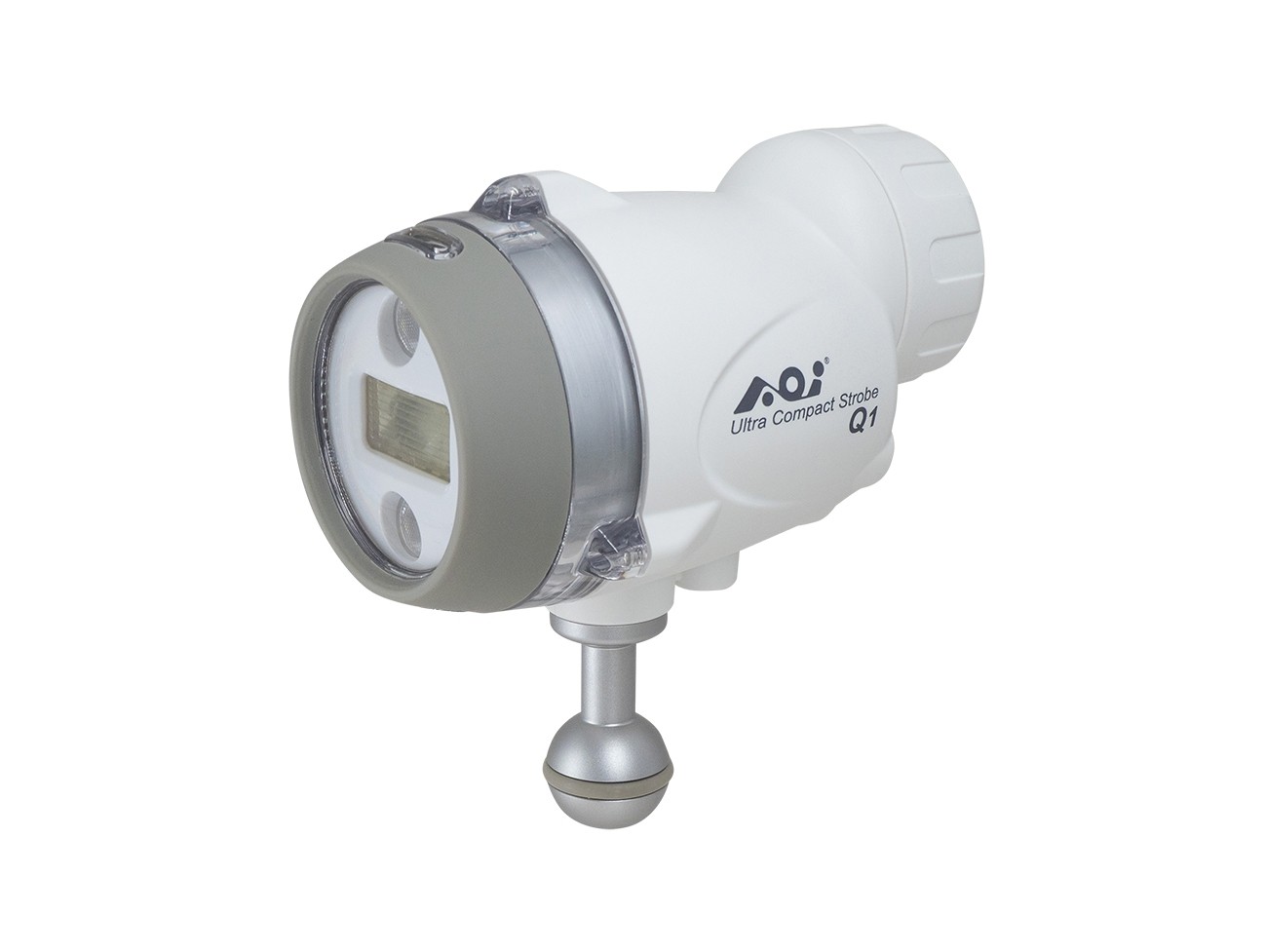

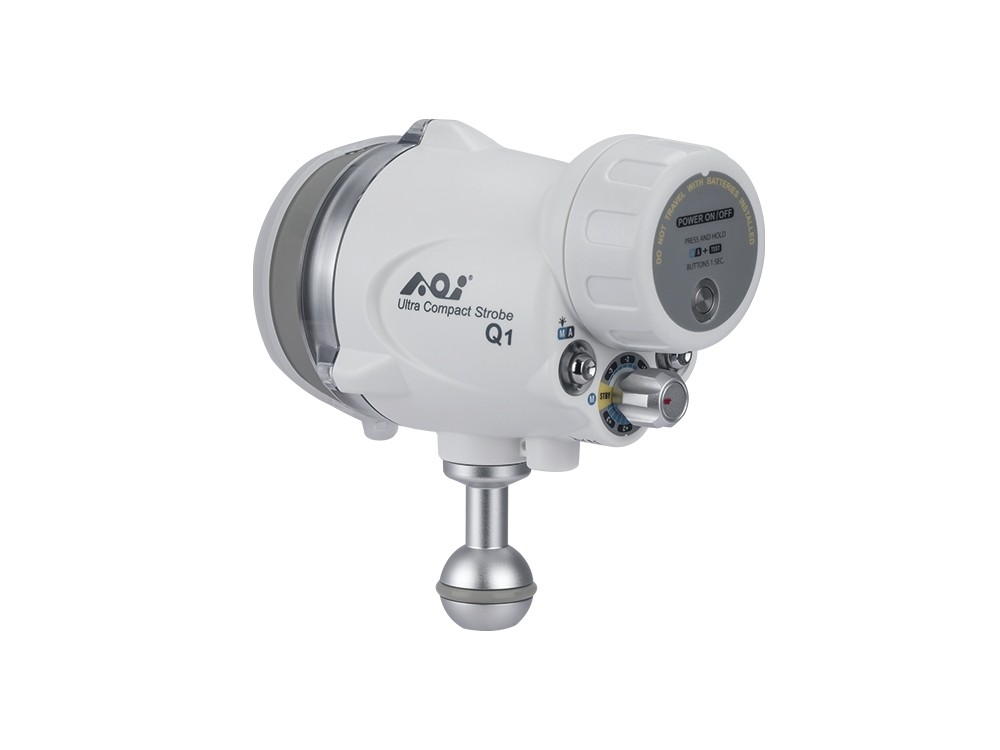

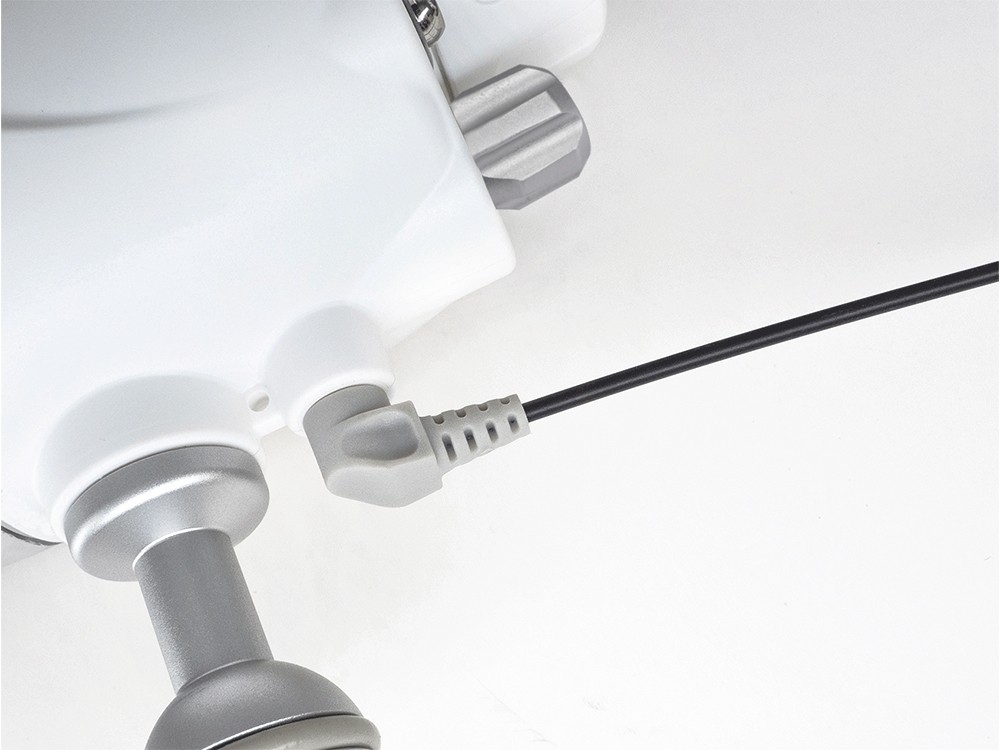

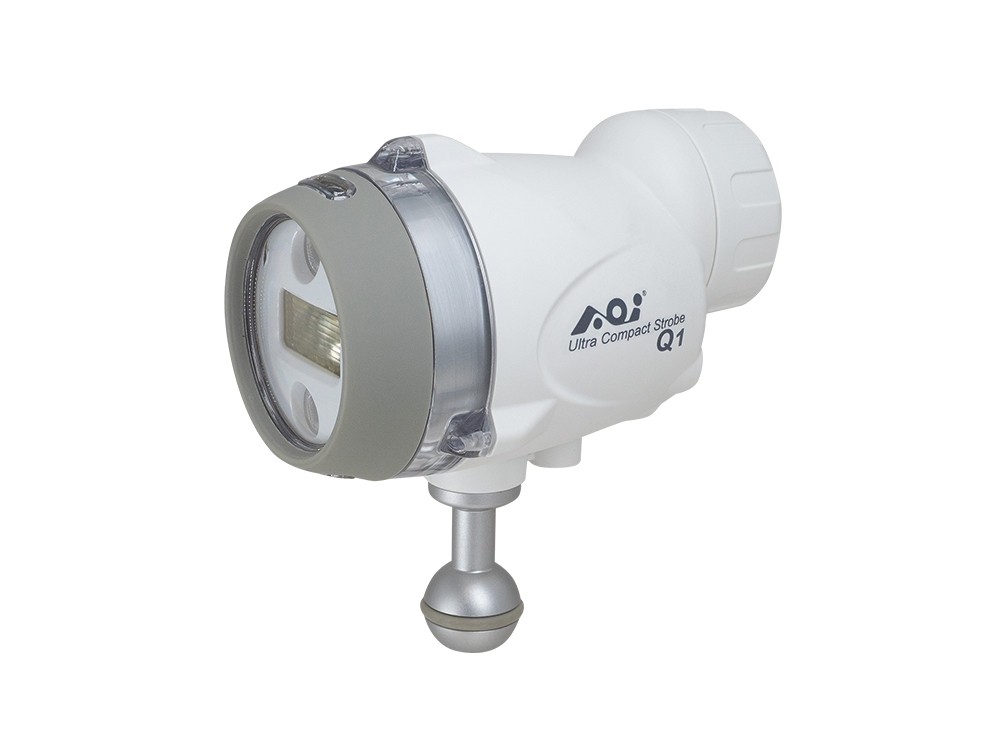

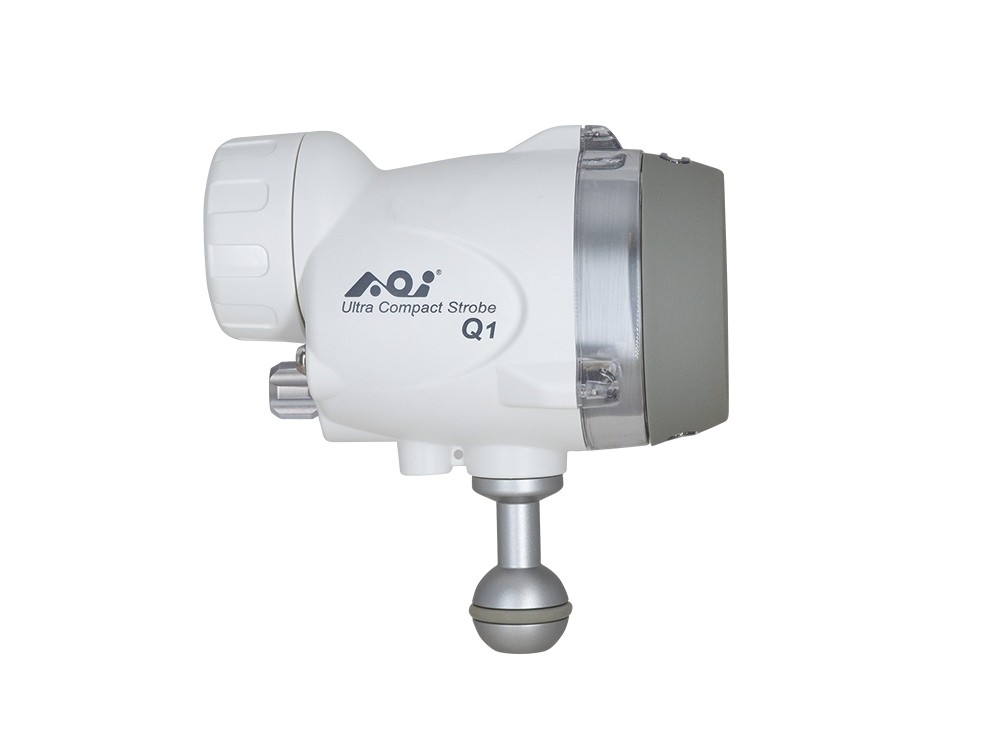

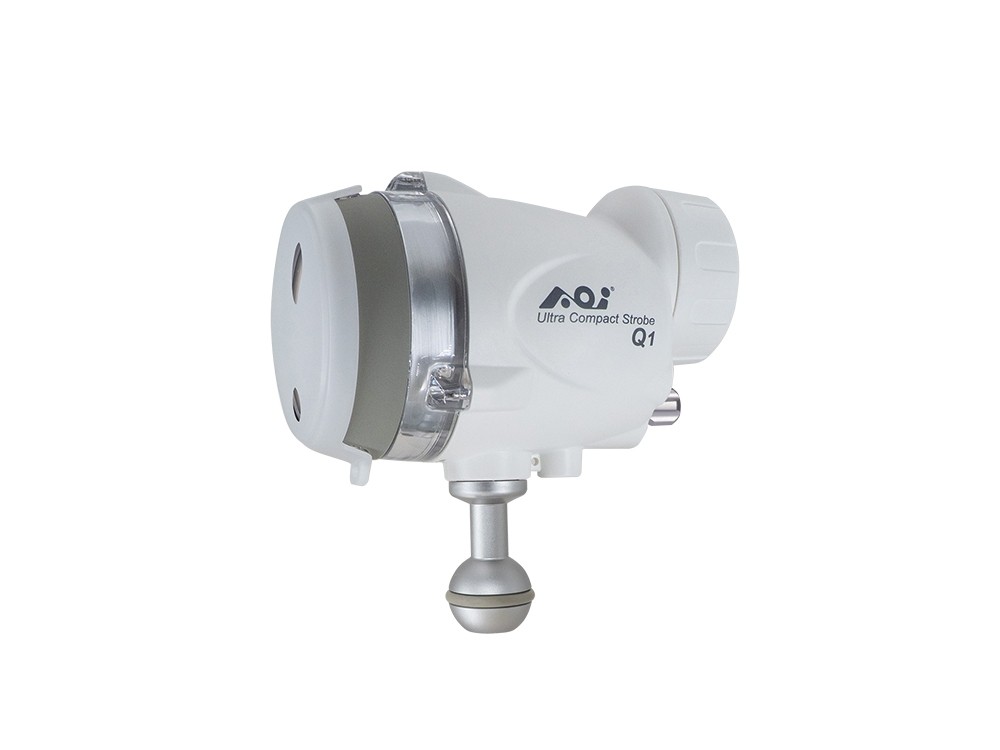

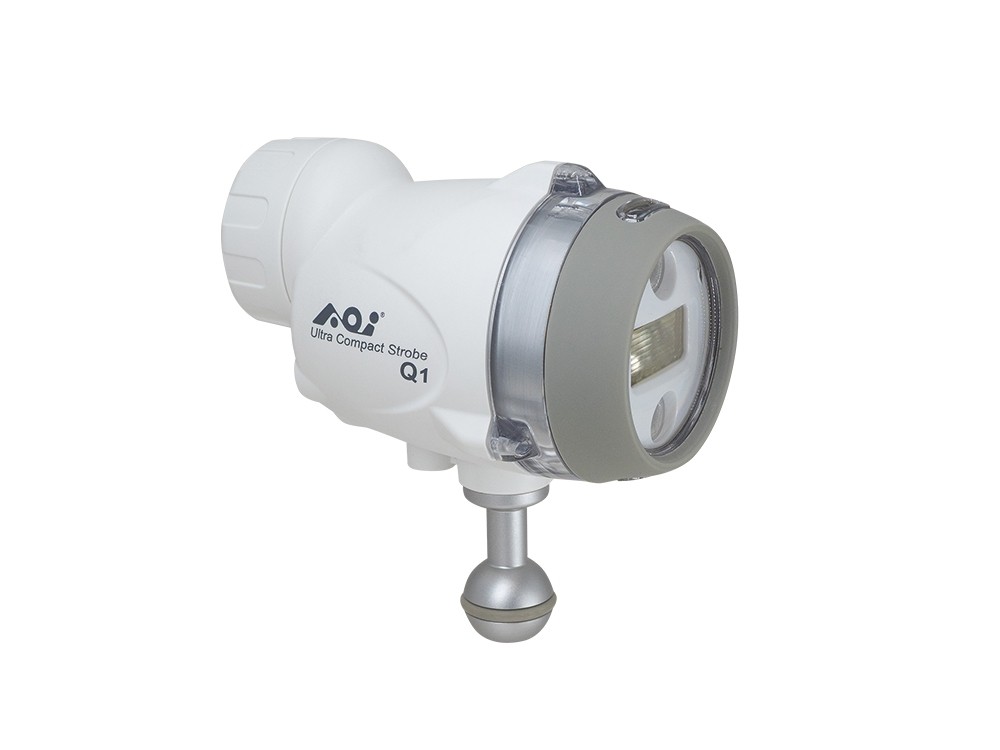

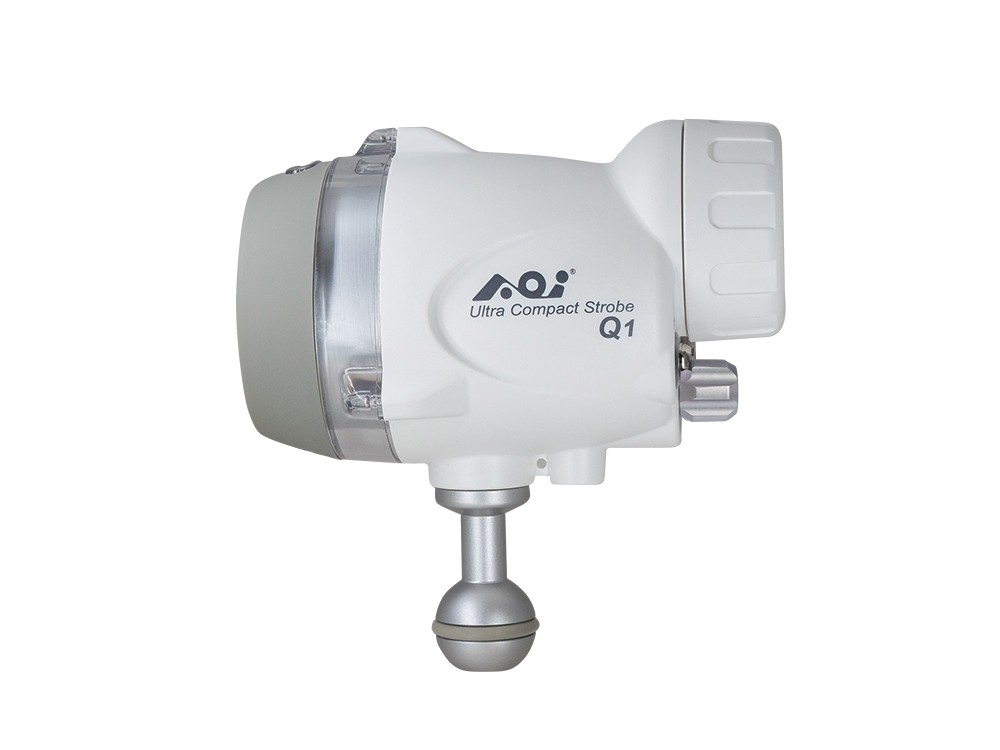

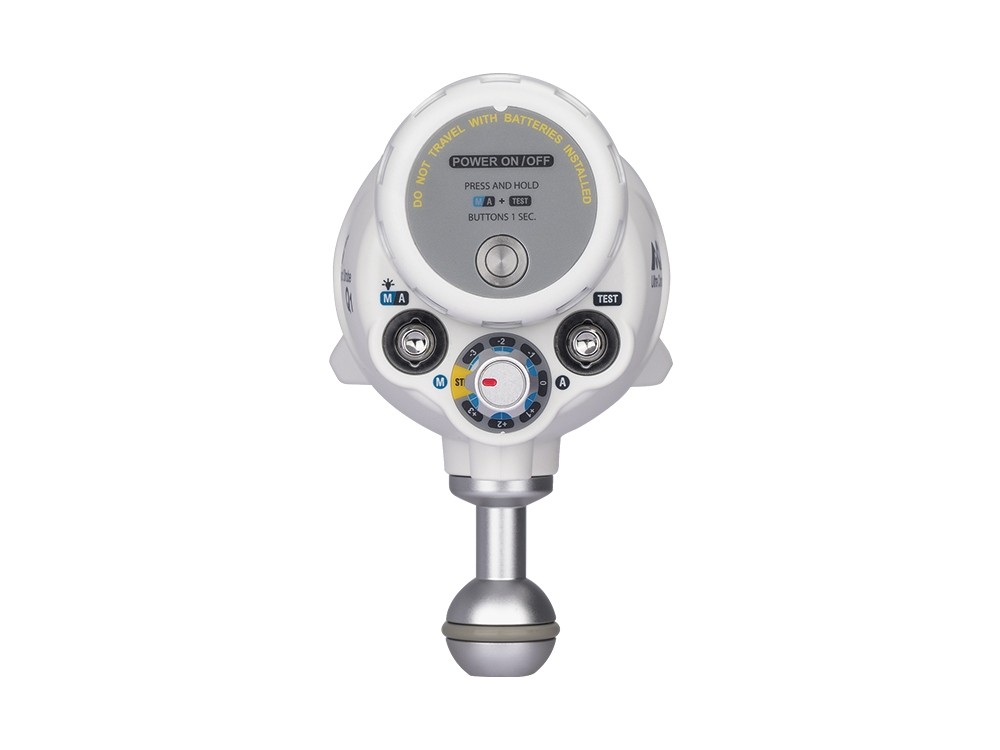

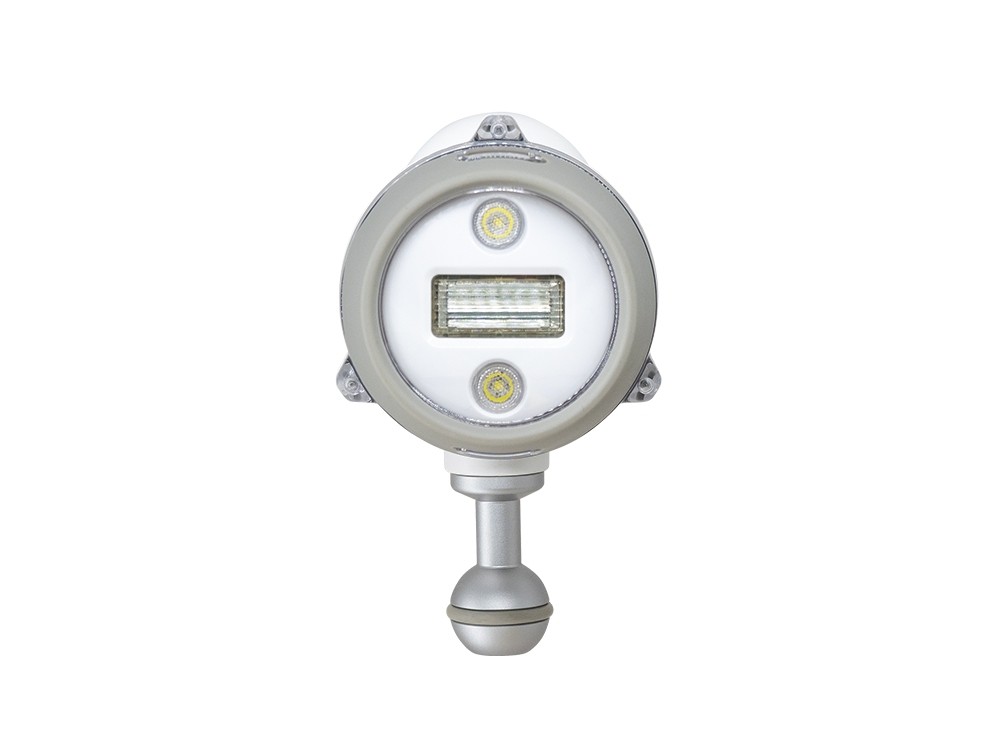

MODEL NUMBER AOI UCS-Q1-WHT AOI UCS-Q1-BLK DESCRIPTION Ultra Compact Strobe- Q1 (2027 Edition) MAIN BODY COLOR White Black MAIN BODY MATERIAL Polycarbonate + Glass Fiber DEPTH RATING 60 Meters STROBE Guide Number G.N.= 22 Color Temperature 5,600K (5,000K with Diffuser) Beam Angle With Diffuser Horizontal- 85°, Vertical- 85° Flash Recharging Time 0.85 Second (Full Power) Number of Flashes 1,400 times (Using Flash Only, Full Power and with 3,500mAh Li-Ion Batteries) Flash Sync By Fiber Optical Cable Pre-flashes Sync. Pre-Flash Learning Cancellation (Default) / Pre-Flash Auto Learning Flash Modes Auto Mode For camera with Built-in Auto Flash Manual Mode 7 Steps Setting: 1/64, 1/32, 1/16, 1/8, 1/4, 1/2 & FULL Modelling Flash 2 Seconds Flashing Duration Flash Test Button Yes LED LIGHTS Maximum Output 700 Lumens Power Control 25%, 50%, 100% and OFF Color Temp. 5600K Beam Angle 45° Burn Time 160 Minutes (Using LED Only, Full Power and with 3,500mAh Li-Ion Batteries.) BATTERY REQUIREMENTS 18650 Li-Ion Rechargeable Battery x2pcs (Battery is not included in the product) Output Current Minimum 5 A Battery Length Minimum ≧ 69 mm

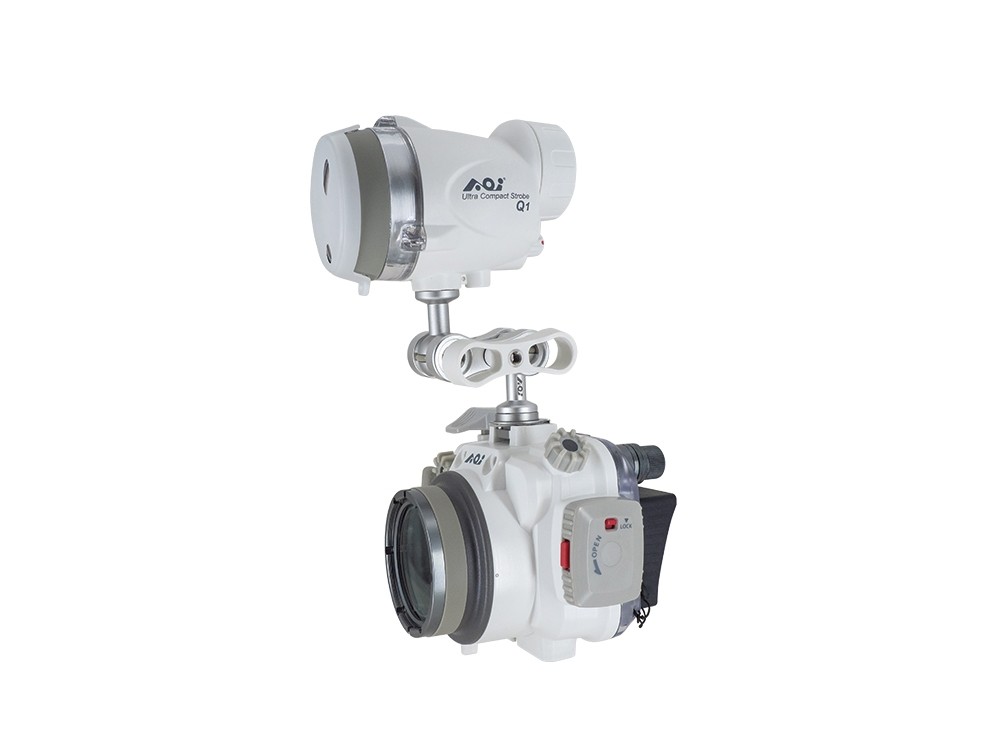

STROBE MOUNTING 1" Ball Mount (Non-removable) DIMENSIONS 125mm (L) x 77mm (W) x 131mm (H) WEIGHT On Land Approx. 530 g(Batteries included and without Strobe Diffuser) Underwater Approx. 80 g (Batteries included and without Strobe Diffuser)
ACCESSORIES Strobe Diffuser for Q1 Series SD-01 Control Knob Extension for Q1 Series CKE-01 Spare O-ring set for Q1 Series SOR-01 O-ring Remover ORR-02 Silicone Grease (1.5 g) Battery Storage Case BSC-18650-2 (Rechargeable Battery is not included)
*Specifications and Appearances are subject to change without prior notice.
