AOI UWL-09PRO

More Views

AOI UWL-09PRO

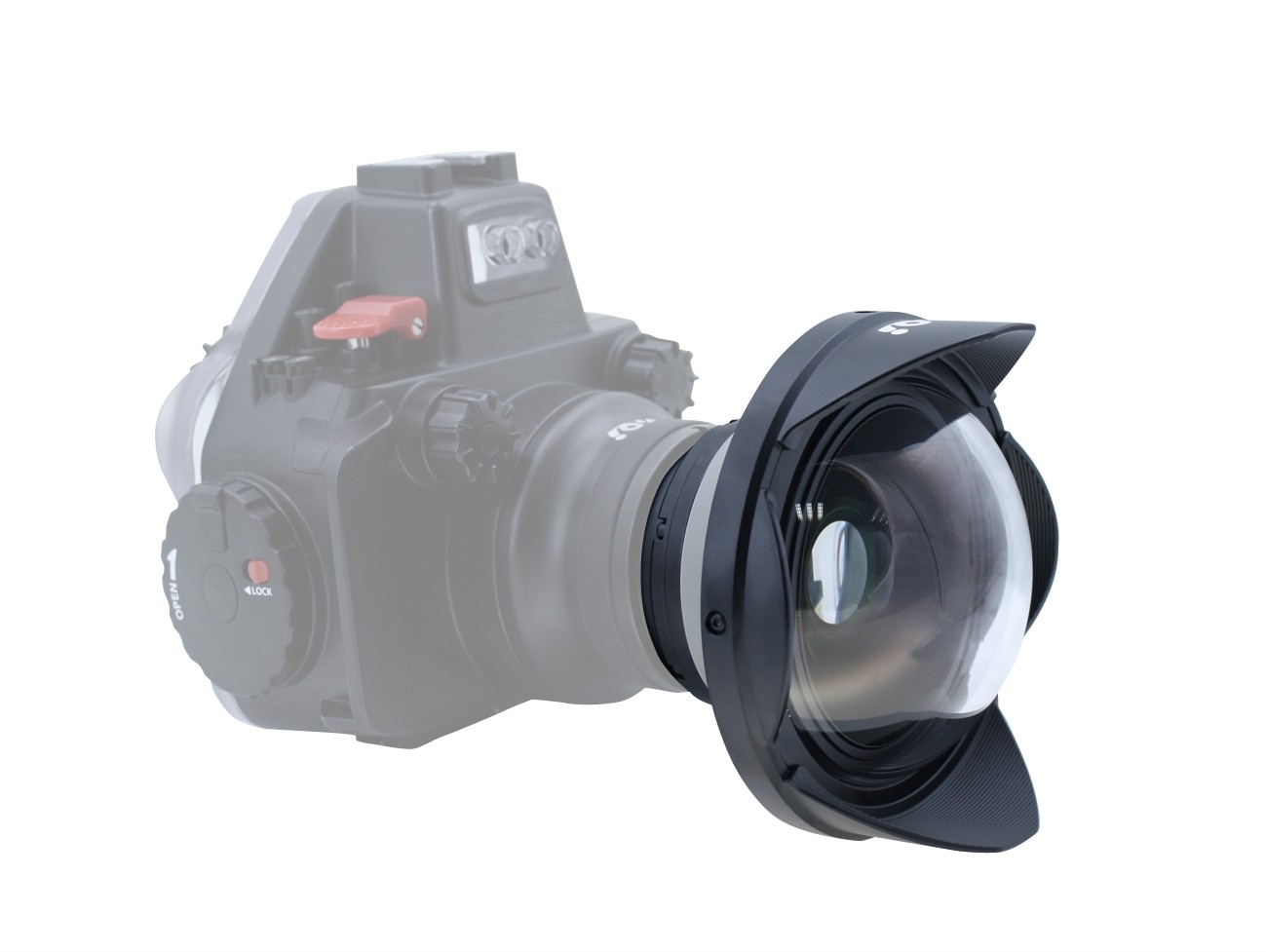

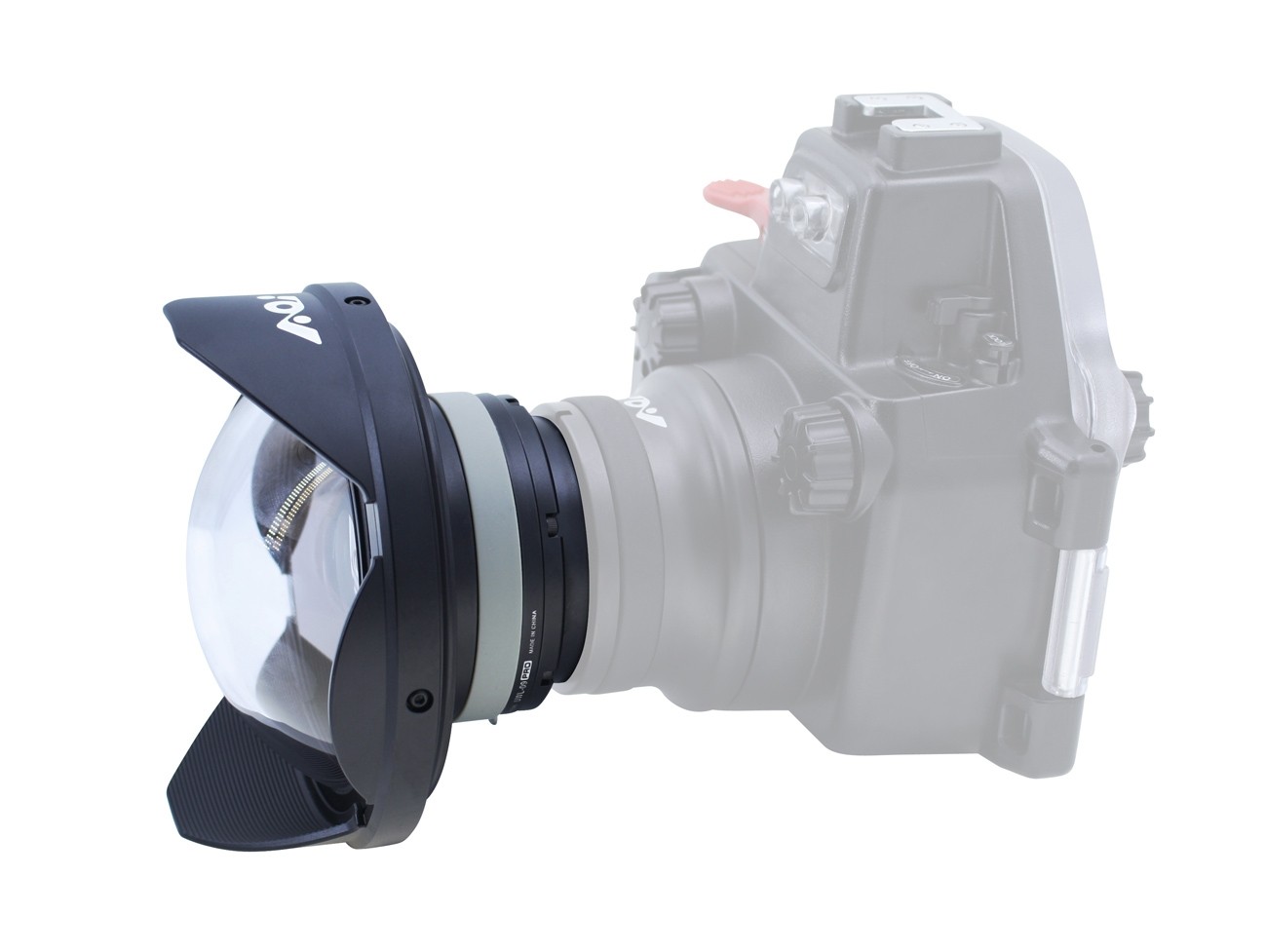

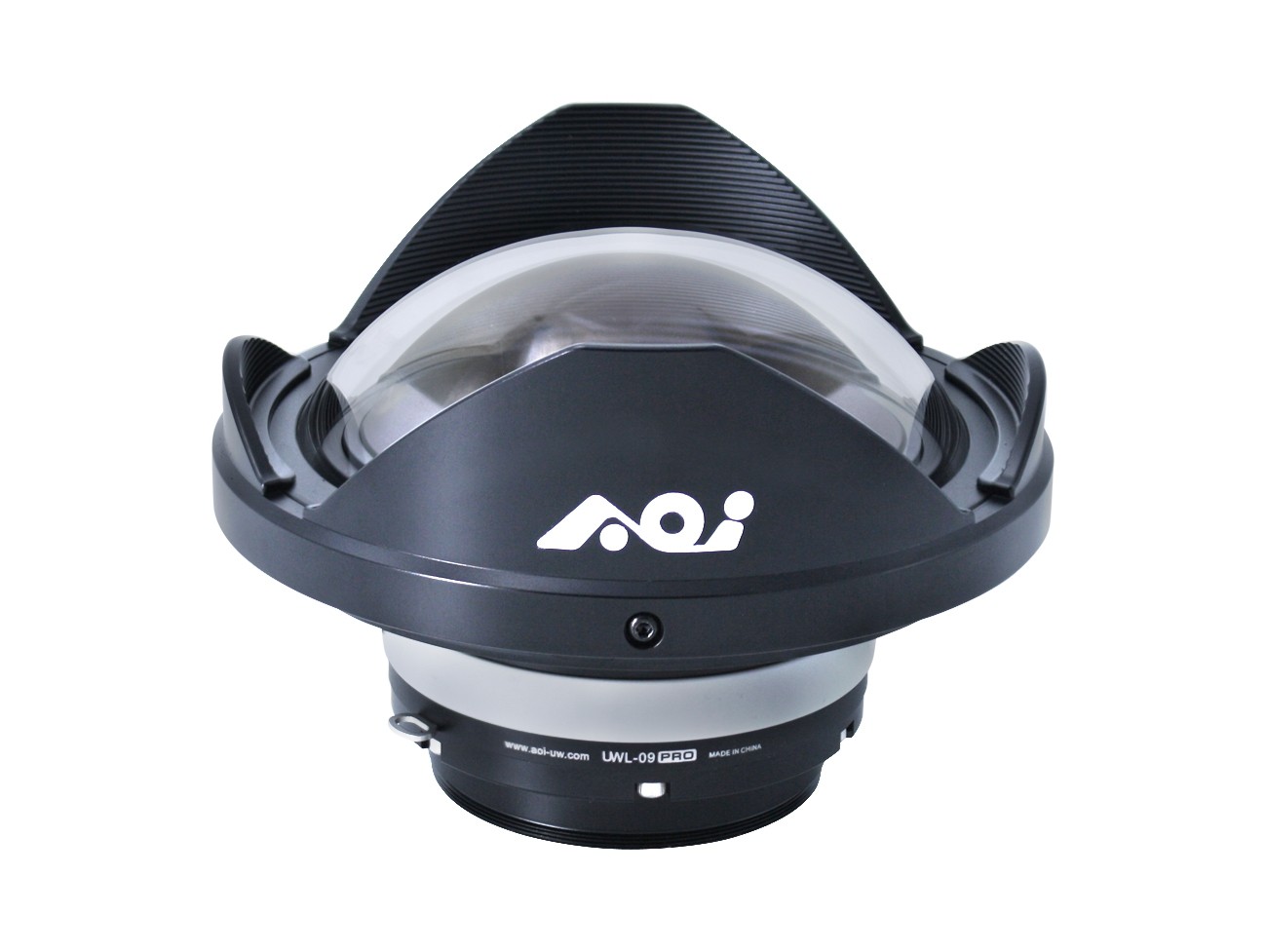

Underwater 0.45X Wide Angle Conversion Lens

Specifications

Details

Model AOI UWL-09PRO
Description Underwater 0.45X Wide Angle Conversion Lens
Lens Construction 6 Elements in 6 Groups
Lens Coating All Glass Lens Elements with Multi-layers AR Coating,
Optical Grade Glass Dome Lens with Inner Surface Multi-layers AR Coating
Field of View (diagonal) 130°(with 28mm Lens)
Magnification 0.45X
Minimum Object Distant 0 mm to the Front Dome Lens
Mount System M67 Thread
Depth Rating 100 Meters / 330 Ft.
Lens Barrel / Lens Hood Aluminum Alloy with Black Hard Anodized
Weight
(on land / underwater)
1408g (on land)
770g (underwater)
Dimensions 139mm (D) X99mm (H)
Standard Accessories

Neoprene Dome Front Cover (DNC-04), Rear Lens Cap (LRC-02),
Lens Secure Line (LSL-02), Type B M67 Adapter (UWL-09P-Type B) with Allen Key
and Carry Case (LPC-02)


*Specifications and Appearances are subject to change without prior notice.
