AOI UWL-09

More Views

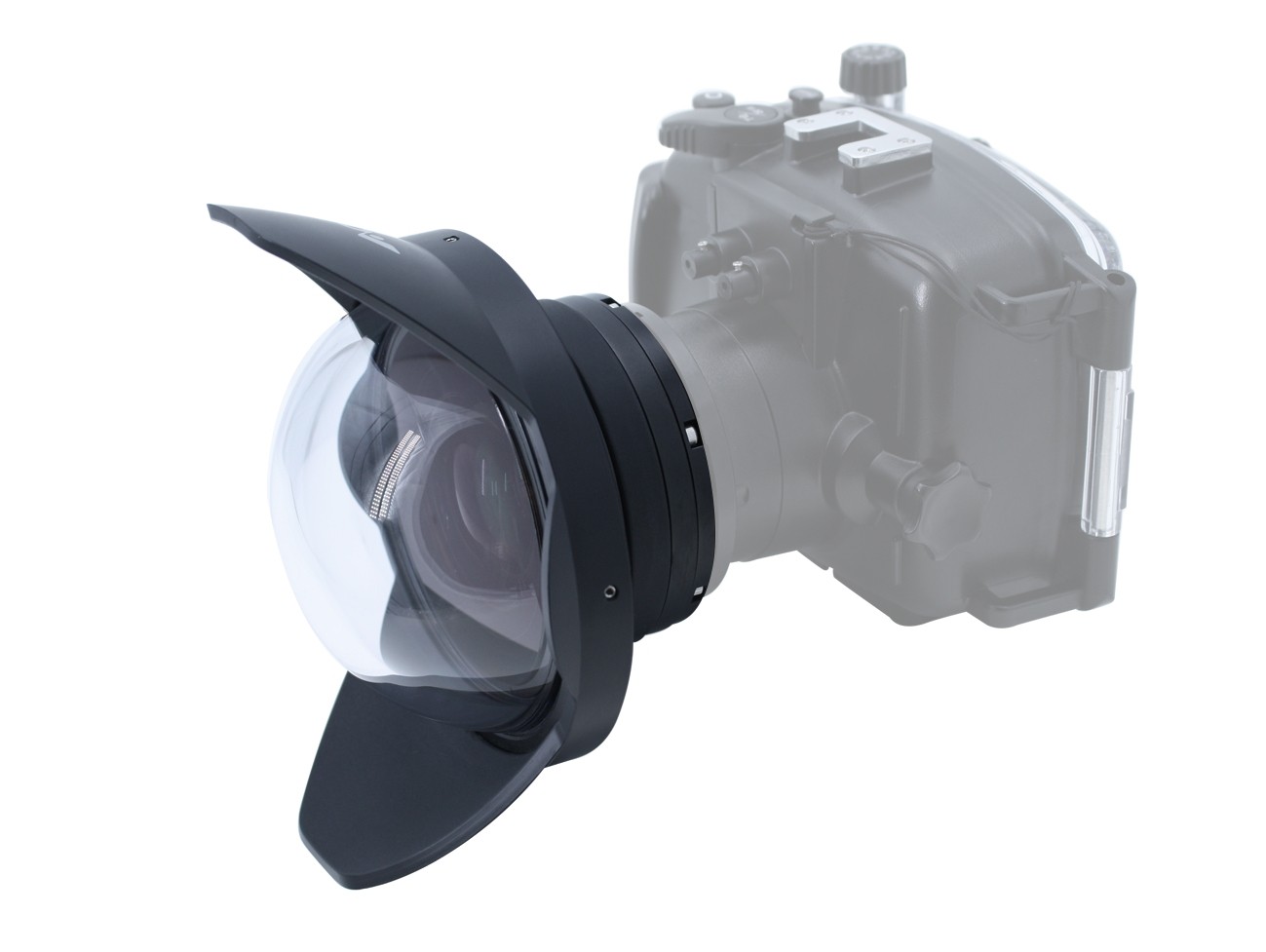

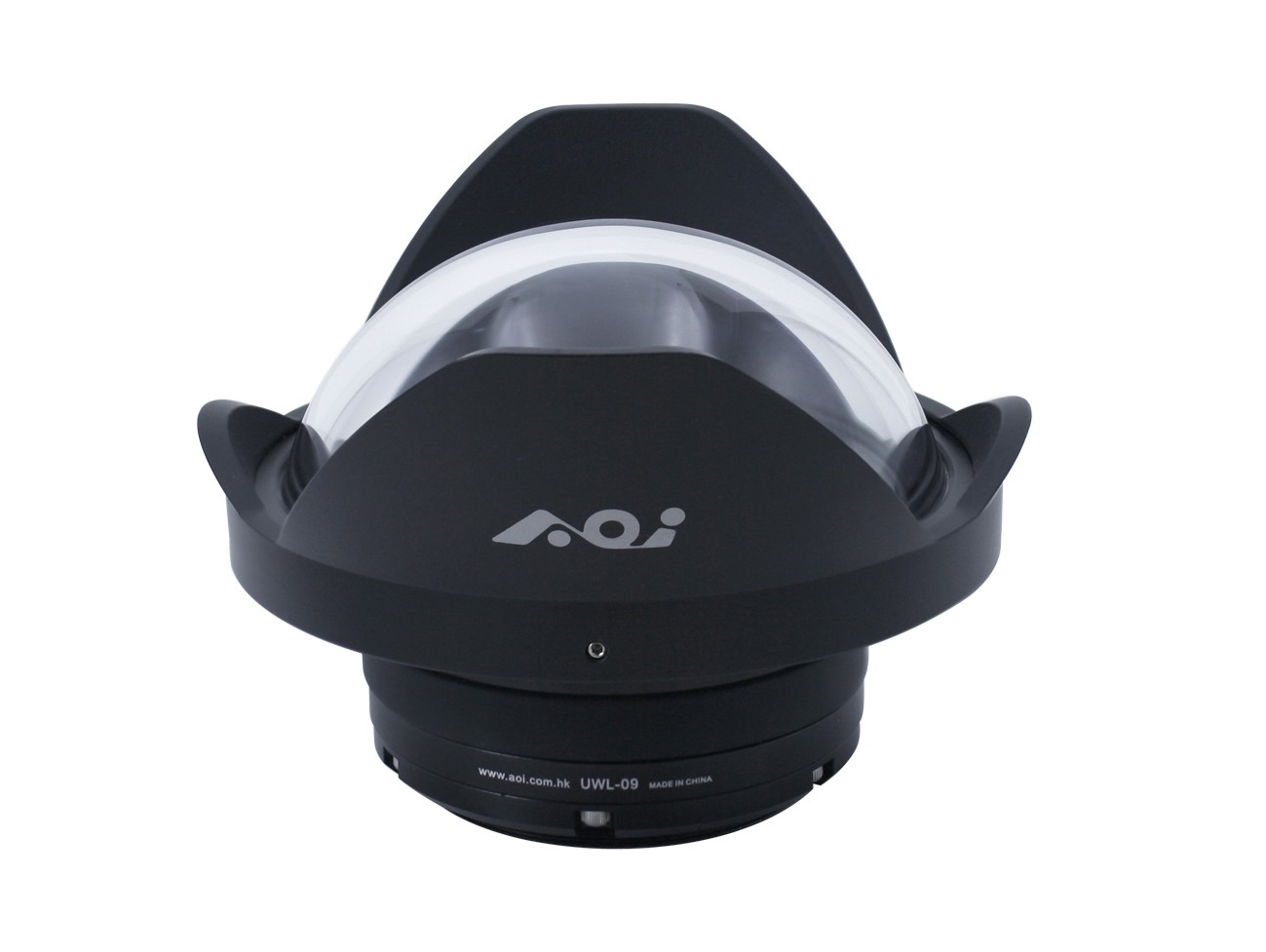

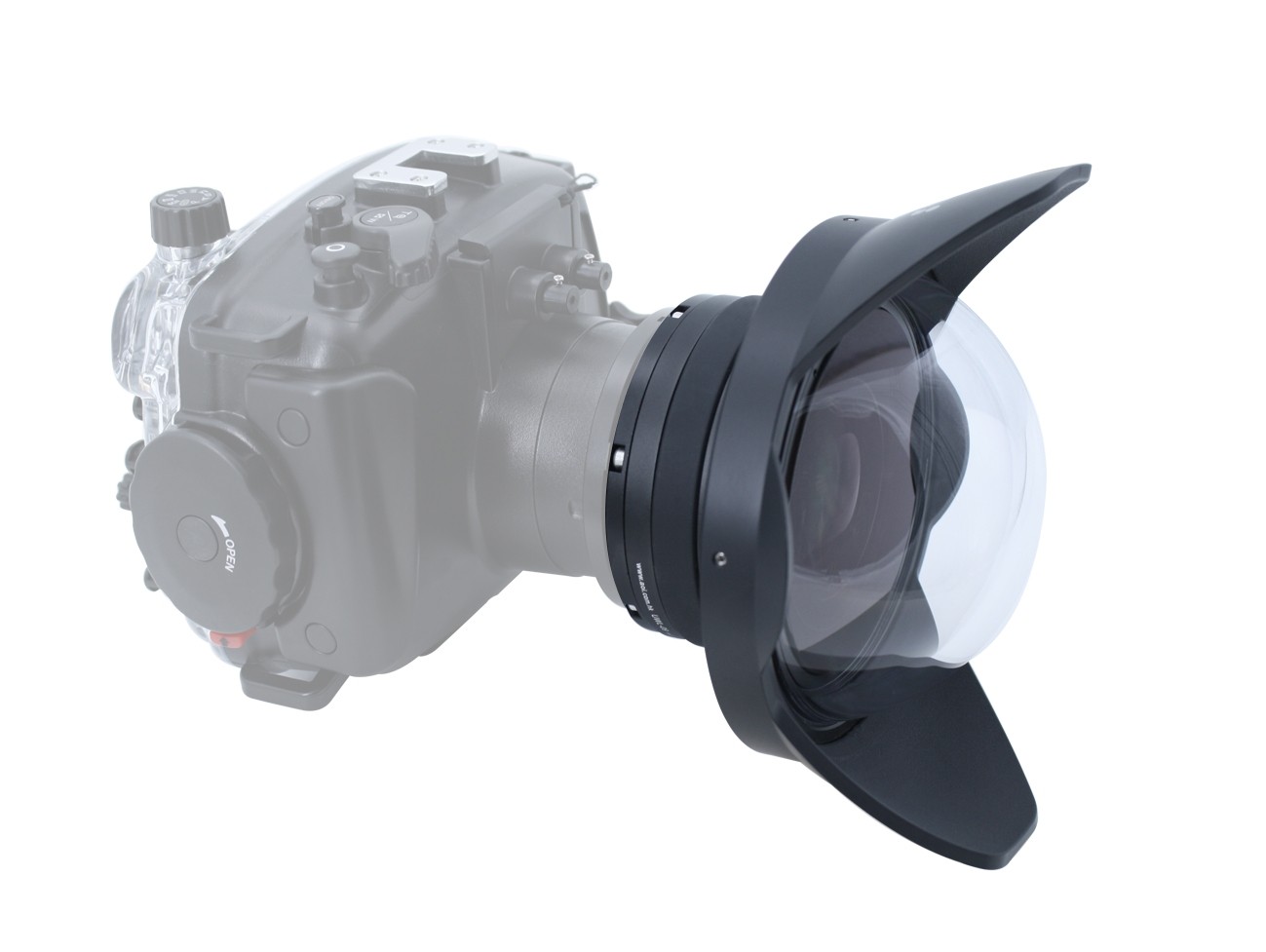

AOI UWL-09

Underwater 0.45X Wide Angle Conversion Lens

Specifications

Details

Model AOI UWL-09
Description Underwater 0.45X Wide Angle Conversion Lens
Lens Construction 5 Elements in 5 Groups
Lens Coating All Glass Lens Elements with Multi-layers AR Coating,
Front PC Dome Lens with Hard Coating
Field of View (diagonal) 130°(with 28mm Lens)
Magnification 0.45X
Minimum Object Distant 0 mm to the Front Dome Lens
Mount System M67 Thread
Depth Rating 100 Meters / 330 Ft.
Lens Barrel / Lens Hood Aluminum Alloy with Black Hard Anodized / ABS
Weight
(on land / underwater)

1010g (on land)
430g (underwater)

Dimensions 158mm (L) X132mm (W) X94mm (H)
Standard Accessories

Neoprene Dome Cover (DNC-04) , Rear Lens Cap (LRC-02),
Lens Secure Line (LSL-02), Type B M67 Adapter (UWL-09-Type B) with Allen Key
and Carry Case(LPC-03)


*Specifications and Appearances are subject to change without prior notice.
